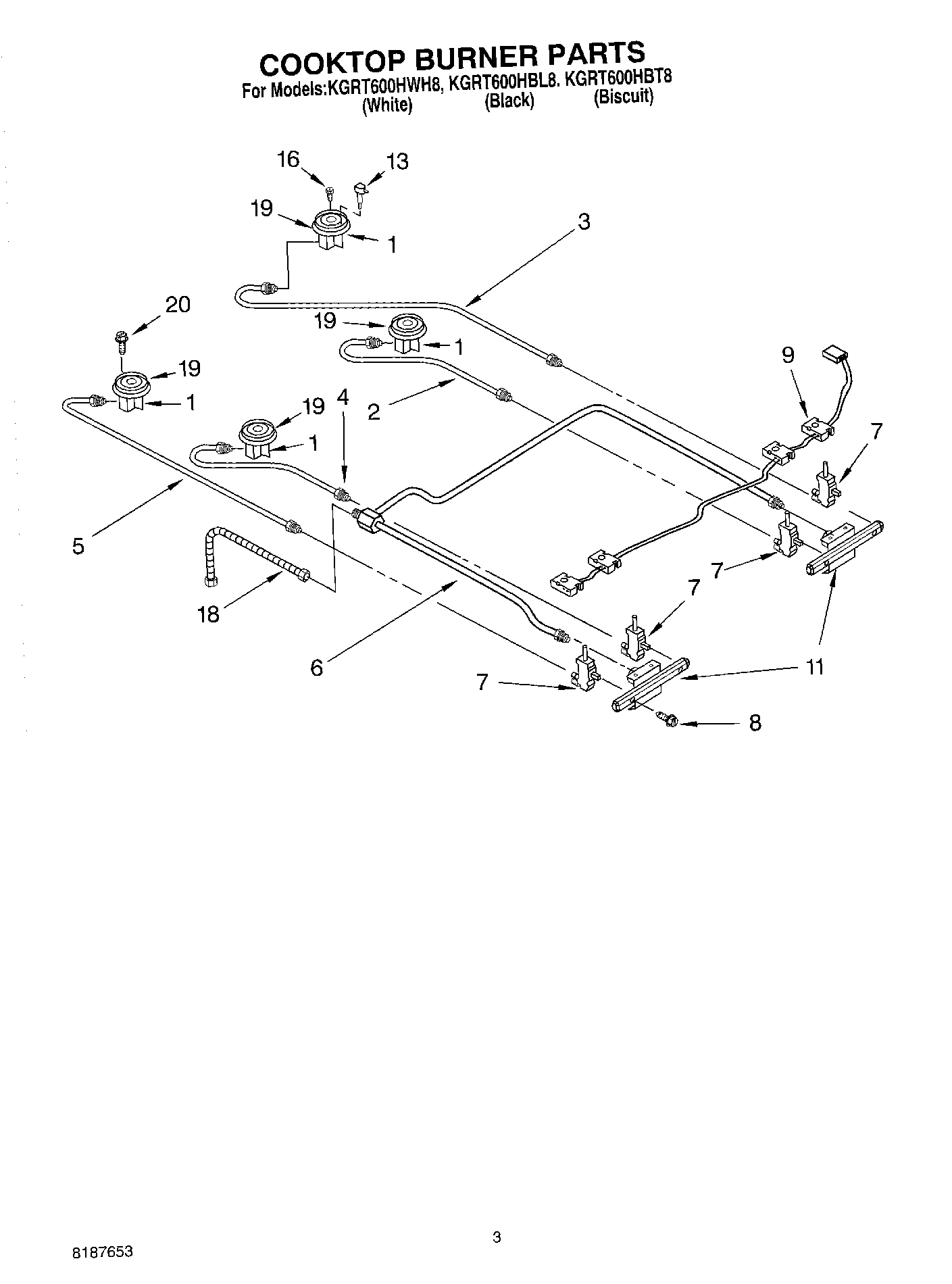

KGRT600HBL8 02 – COOKTOP BURNER
Written by
in
KGRT600HBL8 02 – COOKTOP BURNER
Products
Position
Product
1
Burner Base W/Orifices (14K LF)
1
Orifice Holder (Includes Orific & Ignitor) (Auxi)
1
Burner Base w/Orifice (Large (2))
2
Tubing, Burner (RF)
3
Tubing, Burner (RR)
4
Tubing, Burner (LF)
5
Tubing, Burner (LR)
6
Tube, Manifold
7
Valve, Burner (14K LF Plain Stem)
7
Valve, Burner Large (2)
7
Valve, Burner Small (2)
8
Bolt (Gas Valve)
9
Spark Switch & Harness Assembly
11
Manifold (Left Hand)
11
Manifold (Right Hand)
13
WP9754215 Whirlpool Surface Igniter
16
WP9753930 Whirlpool Orifice
16
WP9753929 Whirlpool Orifice
16
WP9753928 Whirlpool Orifice Assembly
18
Tubing, Flex
19
WP4455981 Whirlpool Burner Head
19
WP4455979 Whirlpool Range Small Burner Head
19
Burner Head (Turbi)
20
WPW10067840 Whirlpool Screw
←
