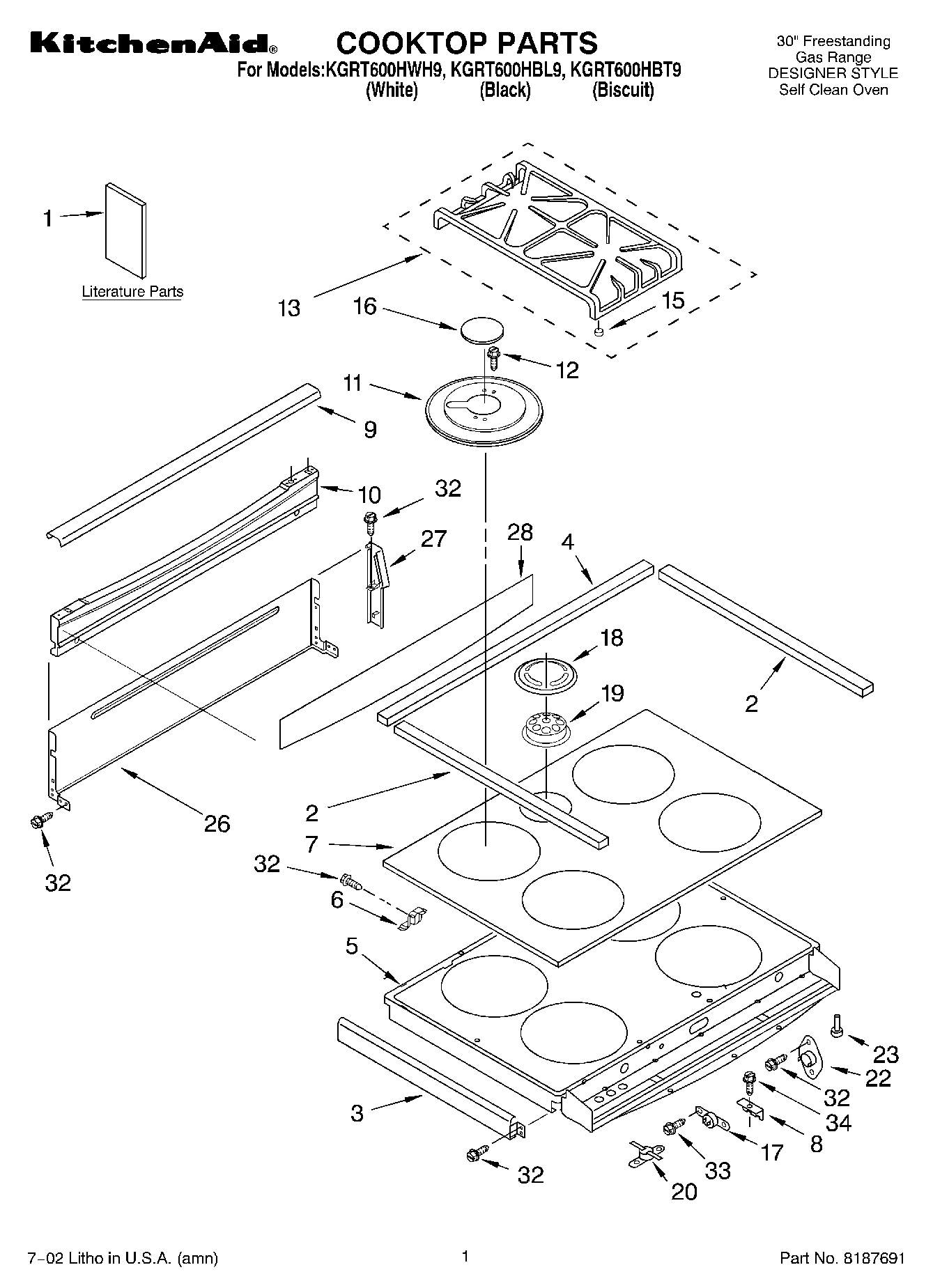

KGRT600HBT9 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (LP Installation Instructions)
1	Literature Parts (Tech Sheet)
1	WPL LIT9752775
1	Use & Care Guide (English)
1	Literature Parts (Wiring Diagram)
1	Installation Instructions (English)
2	WP9780939 Whirlpool Cooktop Gasket
3	(Trim, Cooktop (Left Hand)) (White)
3	WPL 9751275PC
3	Trim, Cooktop (Black (Right))
3	WPL 9751276PB
3	Trim, Cooktop (White (Right))
3	WPL 9751276PC
4	Gasket, Silicone
5	Support, Burner
6	Bracket, Pivot
6	Washer, Pivot
7	Cooktop, Glass (White)
7	Cooktop, Glass (Black)
7	Cooktop, Glass (Biscuit)
8	Support Clips (4)
9	Cover, Light (White)
9	Cover, Light (Black)
9	Cover, Light (Biscuit)
10	Backsplash (White)
10	Backsplash (Black)
10	Backsplash (Biscuit)
11	Bezel, Bu
11	(Bezel, Burner (Black)) (14K LF)
11	(Bezel, Burner (Black)) (6K RF-LR)
12	WP3368921 Whirlpool Screw
13	WPL 9753616GB
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16	WP3191904 Whirlpool Burner Cap
16	WP3191898 Whirlpool Surface Burner Cap Black
16	WPL 9753939GB
17	Thermostat SPST (205)
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
22	WPL 9752006
23	238614 Whirlpool Bumper Hinge
26	Cover, Backsplash
27	Endcap, Backsplash (White, Right)
27	Endcap, Backsplash (Biscuit, Left)
27	Endcap, Backsplash (Black, Left)
27	Endcap, Backsplash (Biscuit, Right)
27	Endcap, Backsplash (Black, Right)
27	Endcap, Backsplash (White, Left)
28	WPL 9753910CB
28	WPL 9753910CC
28	WPL 9753910CW
32	WP4159387 Whirlpool Compactor Screw
33	Back Splash (Screw (4) 10AB x 1/2“)
34	Screw, 10-16 x 1
34	Head, Burner (Pad, Burner Ring)
