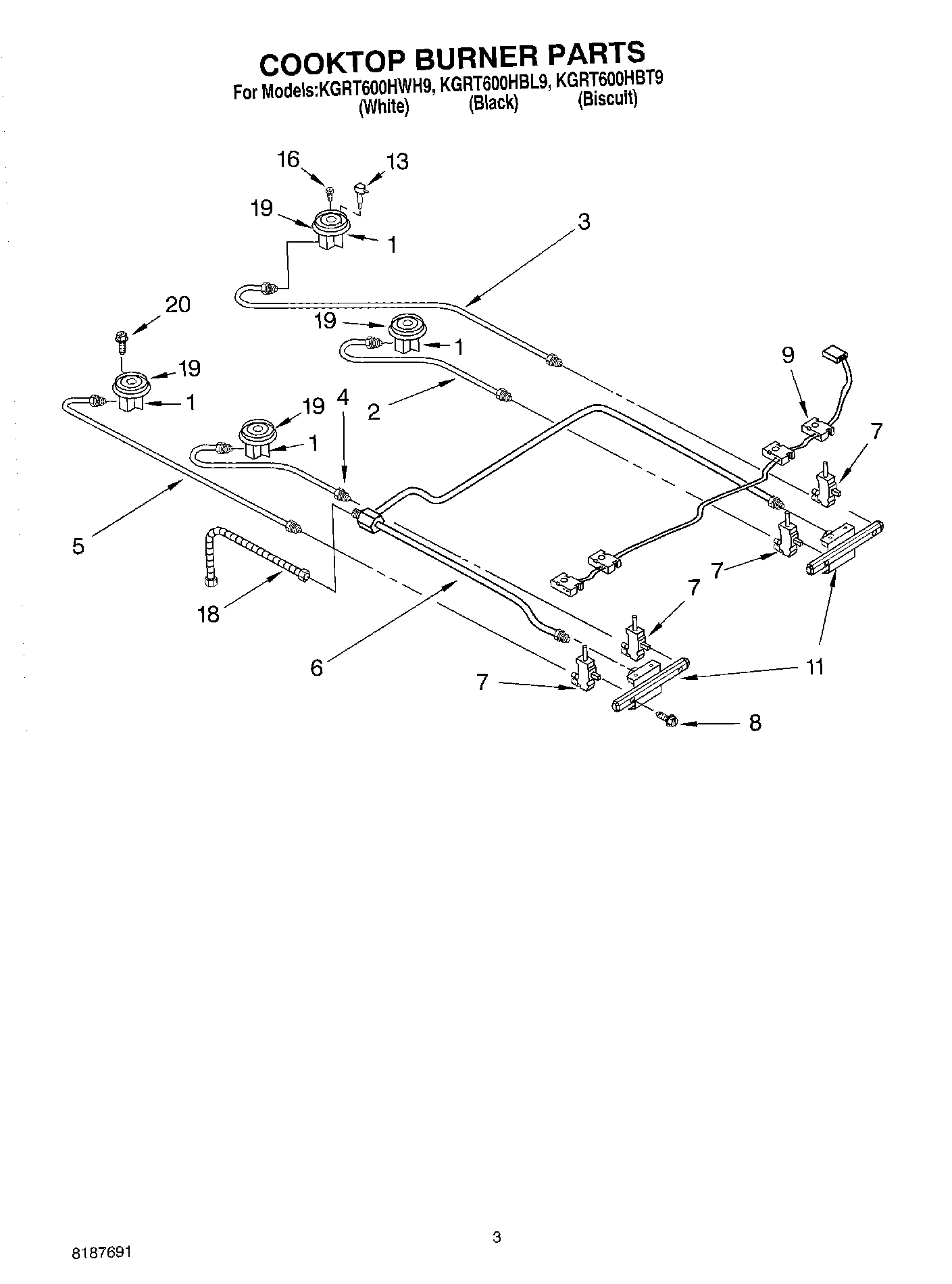

KGRT600HBT9 02 – COOKTOP BURNER

Products

PositionProduct
1Burner Base w/Orifice (Small (2))
1WPW10244714 Whirlpool Orifice Holder
1WPW10128456 Whirlpool Orifice Holder
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tube, Manifold
7Valve, Burner Large (2)
7Valve, Burner Small (2)
7Valve, Burner (14K LF Plain Stem)
8WP3186217 Whirlpool Screw
9WP9755451 Whirlpool Wire Harness
11Manifold (Right Hand)
11Manifold (Left Hand)
13WP9782116 Whirlpool Surface Igniter
16WP9753930 Whirlpool Orifice
16WP9753929 Whirlpool Orifice
16WP9753928 Whirlpool Orifice Assembly
18Tubing, Flex
19Burner Head (Turbi)
19WP4455981 Whirlpool Burner Head
19WP4455979 Whirlpool Range Small Burner Head
20WPW10067840 Whirlpool Screw
