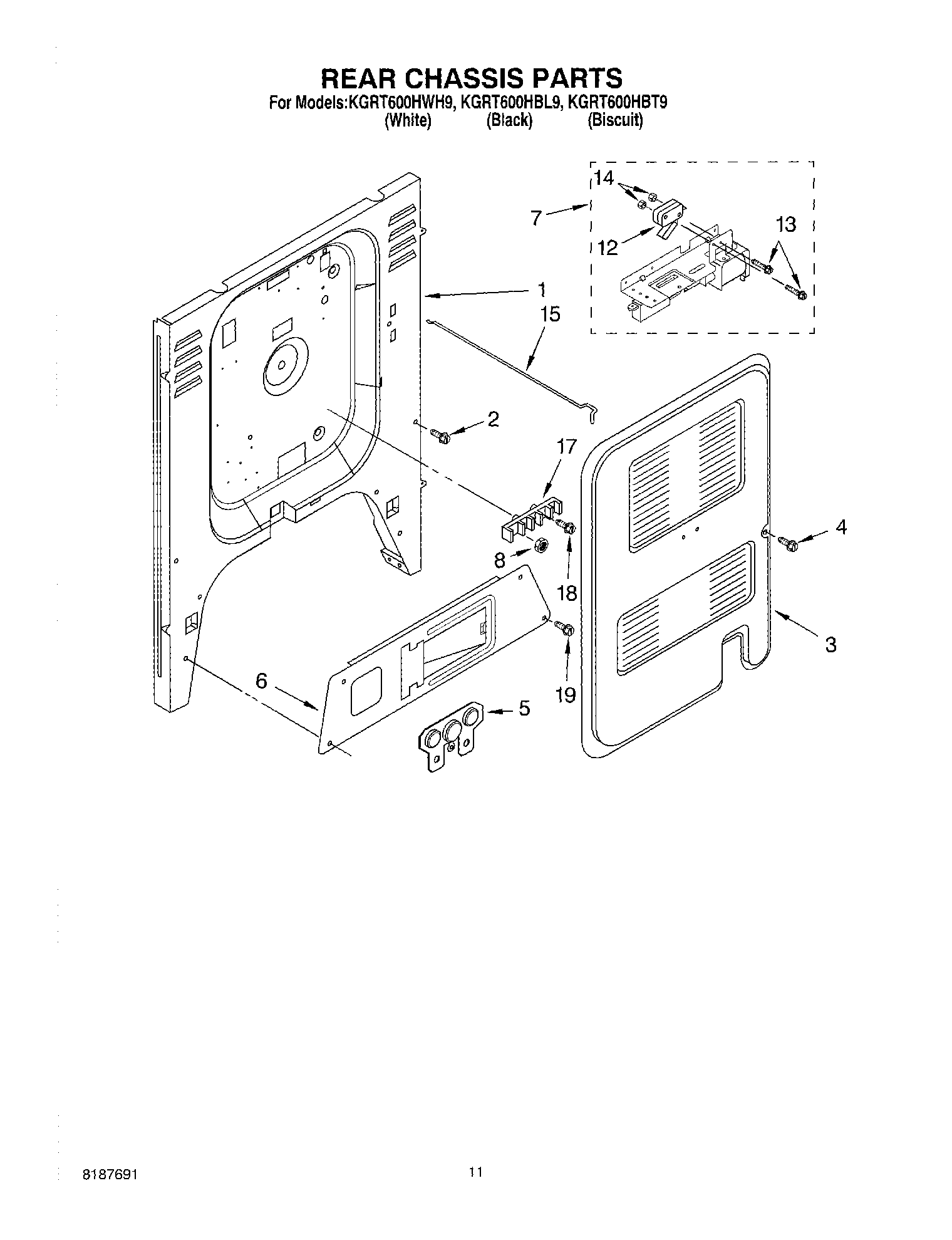

KGRT600HBT9 08 – REAR CHASSIS

Products

Position	Product
1	Back panel, Chassis
2	340184 Whirlpool Screw
3	Panel, Rear Cover
4	Screw (4) 10 x 3/8
5	Suppressor, Trans
6	Bracket, Regulator Valve
7	Oven Lock Assembly
8	WP112432 Whirlpool Nut Assembly
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
18	Screw, (2) 10-16 x 1
19	WPL 9751868
19	Grease
19	8212471 Whirlpool Oven Paint
19	Insulation, Rear
19	242831 Whirlpool Oven Wire
19	Insulation
19	WPL 9782464
19	WPL 9782466
19	WPL 9782460
19	WP9755428 Whirlpool Orifice Spud
19	WPL 9754301
19	WPL 9782454
19	WPL 9782344
19	Insulation, Wrap
19	WPL 9781055
19	WPL 9752717
19	WPL 9782443
19	WPL 9754366
19	WPL 9782111
19	WPL 9755193
19	1
19	Wire (14 Ga. 200 c Brown)
19	Wire, 25` Roll (Black 14 Ga.)
19	WA906B Whirlpool Cooktop Glass Scraper
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPL 799832
19	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
19	511873 Whirlpool Refrigerator Paint
19	4392901 Whirlpool Biscuit Spray Paint
19	4392899 Whirlpool Biscuit Touch-Up Paint
19	350942 Whirlpool Spray Paint
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25“ Roll (White 14 GA.)
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	3400964 Whirlpool Oven Clip
19	WPL 9751745
19	Clip, Wire
19	WP4159387 Whirlpool Compactor Screw
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	285006 Whirlpool Spray
19	WPW10339879 Whirlpool Wire Tie
19	350930 Whirlpool White Spray Paint
