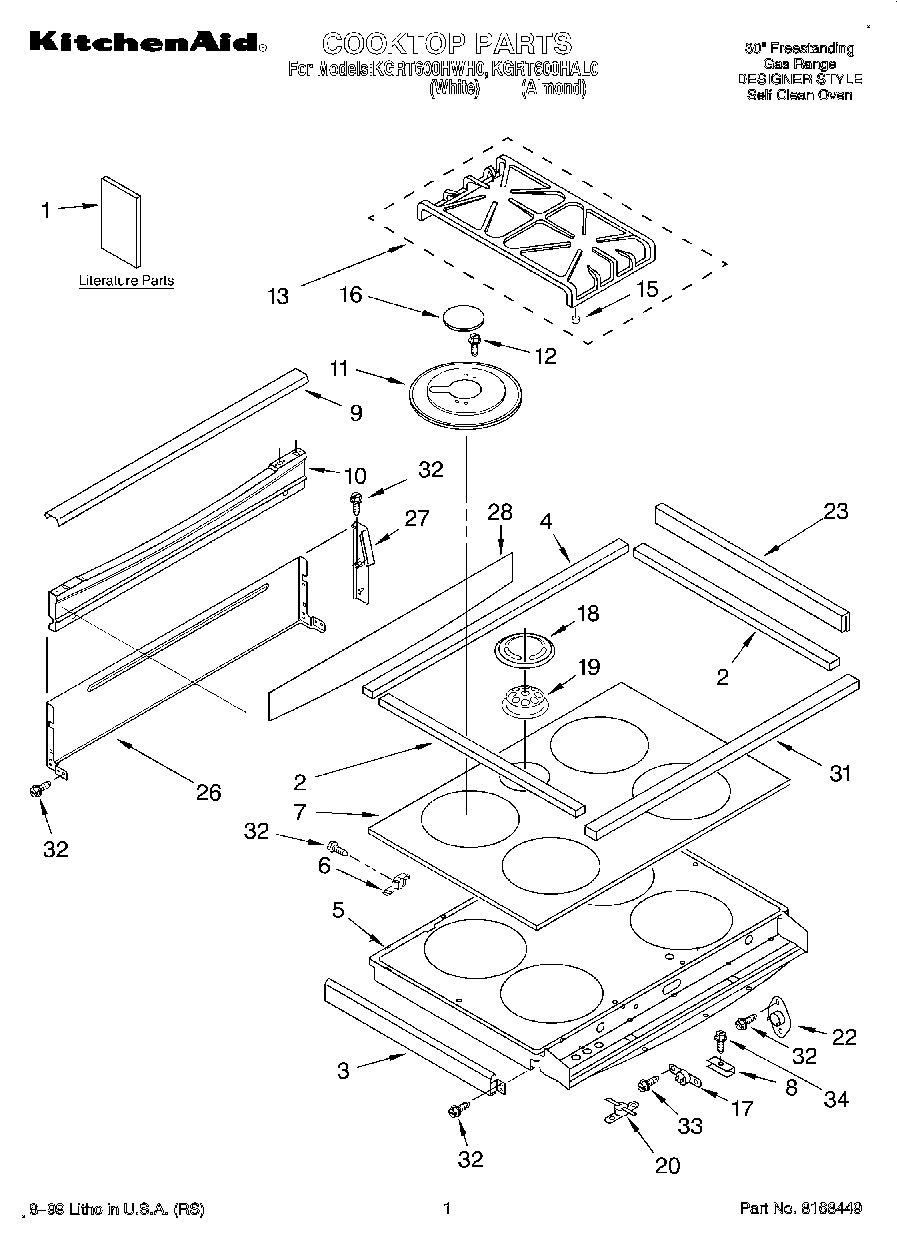

KGRT600HWH0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet)
1Literature Parts (Smart & Easy Guide)
1WPL LIT9752775
1Installation Instructions (English)
1Use & Care Guide (English)
1Literature Parts (Wiring Diagram)
1Literature Parts (LP Installation Instructions)
2Gasket, Cooktop
3Trim, Cooktop (White (Right))
3(Trim, Cooktop (Left Hand)) (White)
3Trim, Cooktop (Left Hand) (Almond)
3Trim, Cooktop (Almond (Right))
4Rear Gasket
5Support, Burner
6Bracket, Pivot
6Washer, Pivot
7Cooktop, Glass (White)
7Cooktop, Glass (Biscuit)
8Support Clip (4)
9Cover, Light (Almond)
9Cover, Light (White)
10Backsplash (Almond)
10Backsplash (White)
11(Bezel, Burner (Black)) (6K RF-LR)
11(Bezel, Burner (Black)) (14K LF)
11Bezel, Bu
12WP3368921 Whirlpool Screw
13WPL 9753616GB
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16WP3191904 Whirlpool Burner Cap
16WP3191898 Whirlpool Surface Burner Cap Black
16WPL 9753939GB
17Thermostat SPST (205)
18WPL 9751271GB
19WPL 9751366
20WP9759944 Whirlpool Thermostat
22WPL 9752006
23Seal, Rubber
26Cover, Backsplash
27Endcap, Backsplash (Almond (
27Endcap, Backsplash (Almond (Left))
27Endcap, Backsplash (White, Right)
27Endcap, Backsplash (White, Left)
28WPL 9753910CW
28WPL 9753910CT
31Gasket, Console
32WP4159387 Whirlpool Compactor Screw
33Back Splash (Screw (4) 10AB x 1/2“)
34Screw, 10-16 x 1
