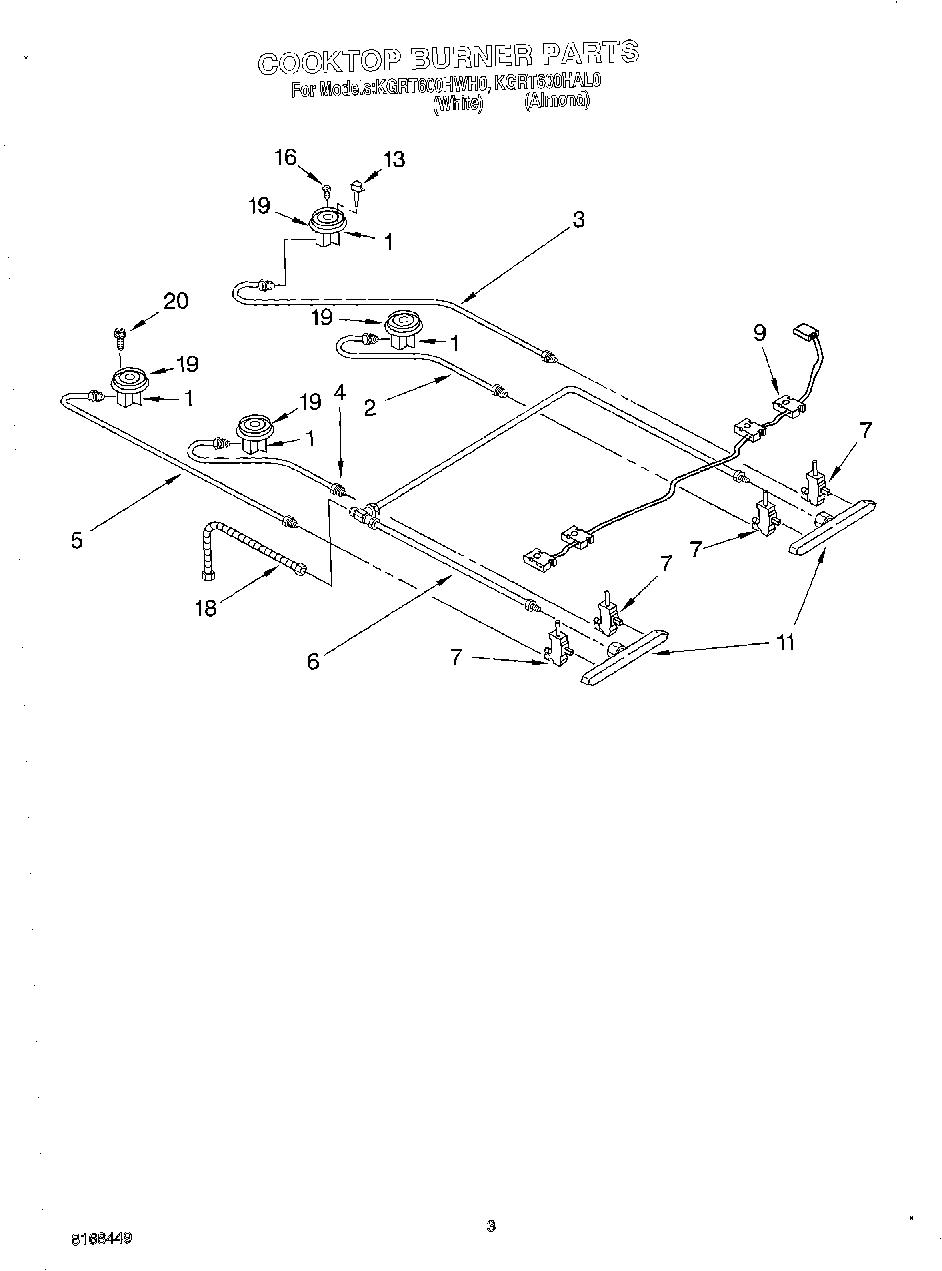

KGRT600HWH0 02 – COOKTOP BURNER
Written by
in
KGRT600HWH0 02 – COOKTOP BURNER
Products
Position
Product
1
Burner Base W/Orifice (6K RF-LR)
1
Burner Base W/Orifice (12K RR)
1
Burner Base W/Orifice (14K LF)
2
Tubing, Burner (RF)
3
Tubing, Burner (RR)
4
Tubing, Burner (LF)
5
Tubing, Burner (LR)
6
Tubing, Manifold
7
Bolt (Gas Valve)
7
Valve, Burner (14K LF Plain Stem)
7
Valve, Burner Small (2)
7
Valve, Burner Large (2)
9
Spark Switch & Harness Assembly
11
Manifold
13
Ignitor
16
WP9753928 Whirlpool Orifice Assembly
16
WP9753929 Whirlpool Orifice
16
WP9753930 Whirlpool Orifice
18
Tubing, Flex
19
Head, Burner (LF)
19
Head, Burner (RF)
19
Head, Burner (14K LF)
20
WPW10067840 Whirlpool Screw
←
