KGRT600HWH3 06 – BROILER AND OVEN BURNER

KGRT600HWH3 06 – BROILER AND OVEN BURNER

Written by

in

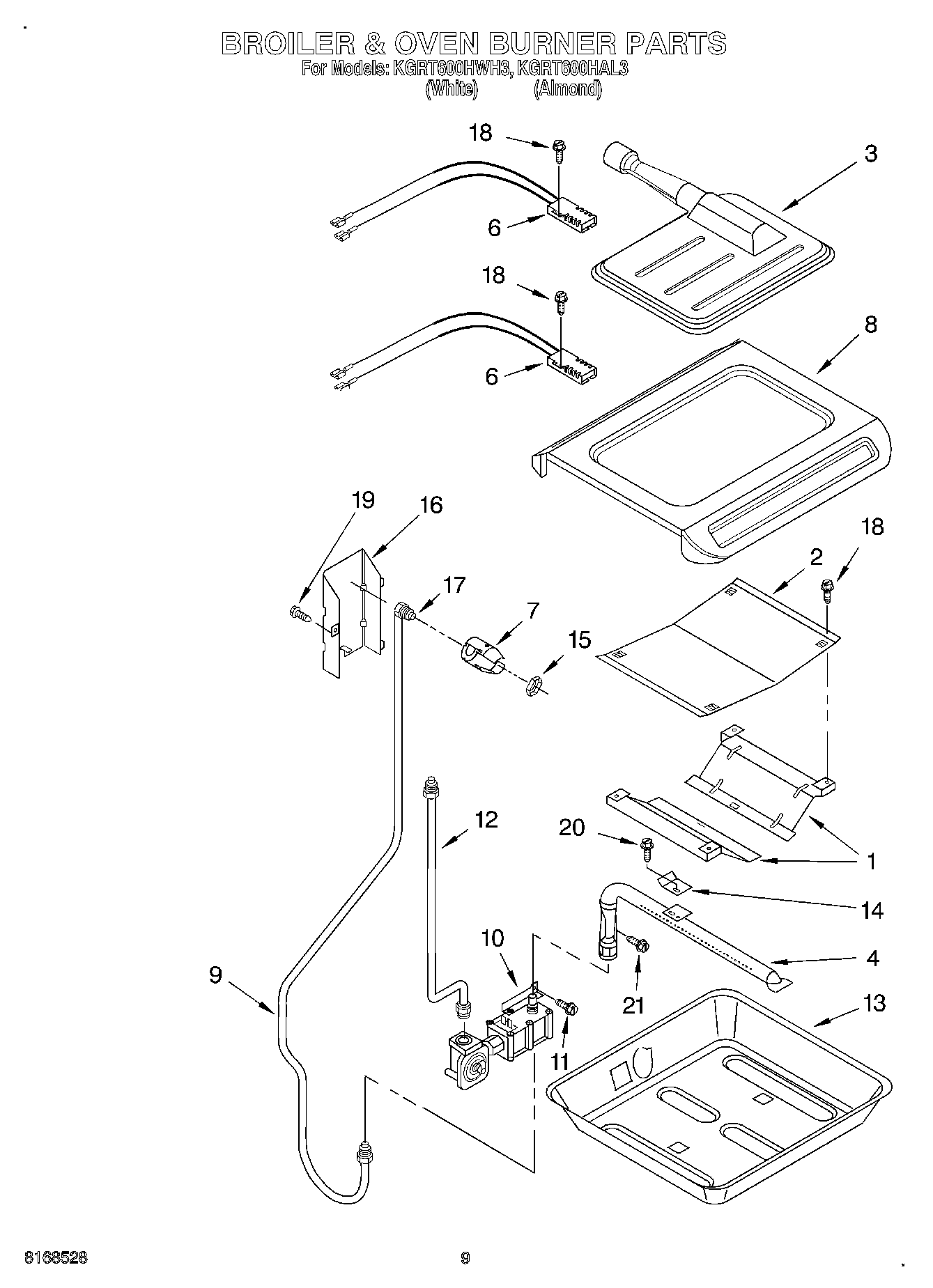

KGRT600HWH3 06 – BROILER AND OVEN BURNER

Products

PositionProduct
1Shield, Oven (2)
2Flame Shield, Bake
3Burner, Broiler
4Burner, Bake
6WP9782065 Whirlpool Oven Igniter
7Bracket, Broil Shooter
8Pan, Oven Bottom
9Tubing, Broil
10WP9755424 Whirlpool Gas Valve
11Screw. 1/4-20 x 1/2 (4)
12Tubing, Valve
13Pan Support, Bake
14Bracket, Bake
15Nut 18 5/8
16Coverbox (Broiler Tubing)
17Orifice 54
18Screw, 10 x 3/8
19WP4159387 Whirlpool Compactor Screw
20Screw
21Screw, 10-32 x 1/2
