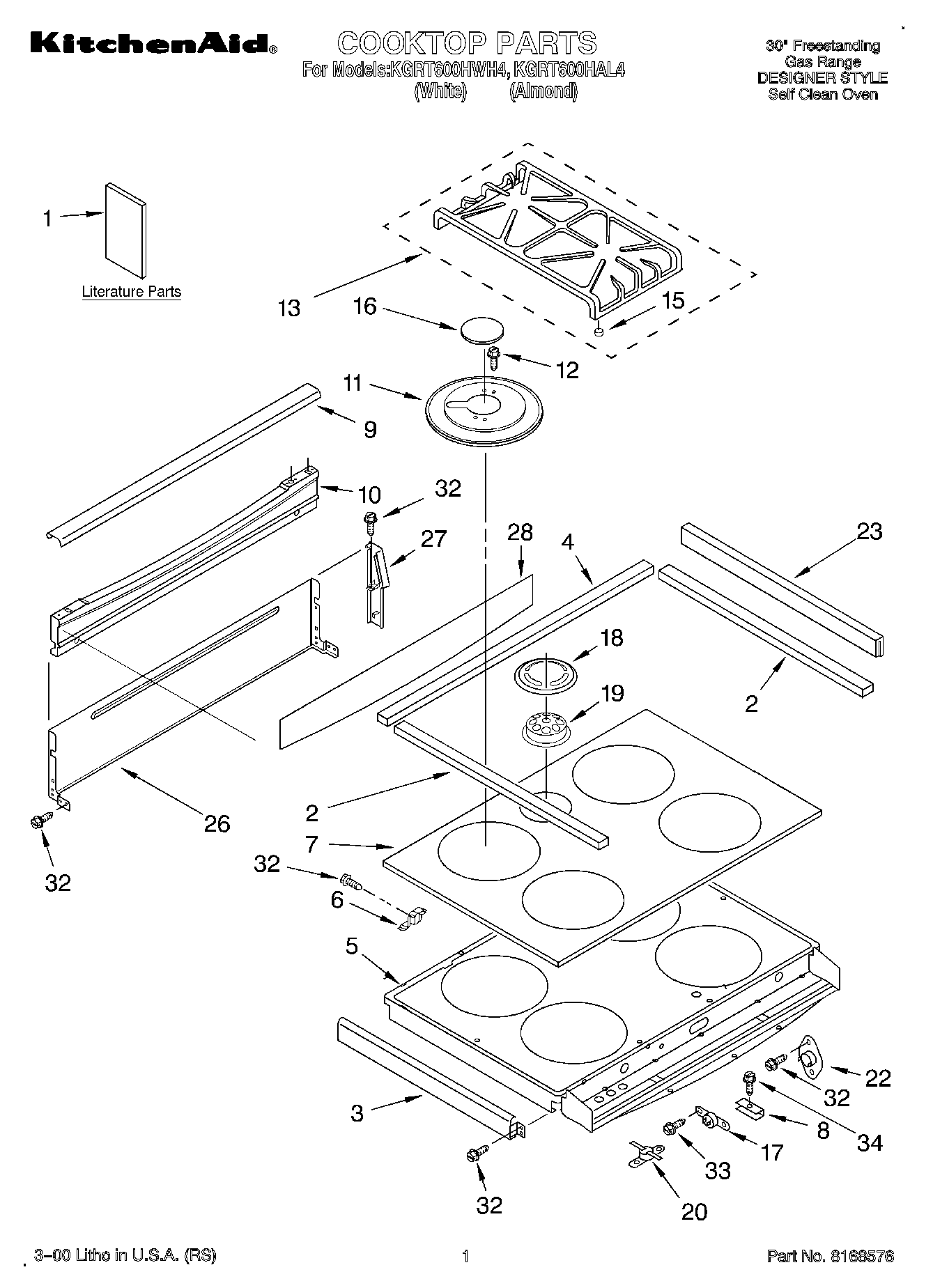

KGRT600HWH4 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet)
1	Literature Parts (LP Installation Instructions)
1	Literature Parts (Wiring Diagram)
1	Use & Care Guide (English)
1	Installation Instructions (English)
1	WPL LIT9752775
1	Literature Parts (Smart & Easy Guide)
2	WP9780939 Whirlpool Cooktop Gasket
3	(Trim, Cooktop (Left Hand)) (White)
3	Trim, Cooktop (Left Hand) (Almond)
3	Trim, Cooktop (White (Right))
3	Trim, Cooktop (Almond (Right))
4	Gasket, Silicone
5	Support, Burner
6	Bracket, Pivot
6	Washer, Pivot
7	Cooktop, Glass (White)
7	Cooktop, Glass (Biscuit)
8	Support Clip (4)
9	Cover, Light (White)
9	Cover, Light (Almond)
10	Backsplash (Almond)
10	Backsplash (White)
11	(Bezel, Burner (Black)) (14K LF)
11	(Bezel, Burner (Black)) (6K RF-LR)
11	Bezel, Bu
12	WP3368921 Whirlpool Screw
13	WPL 9753616GB
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16	WPL 9753939GB
16	WP3191898 Whirlpool Surface Burner Cap Black
16	WP3191904 Whirlpool Burner Cap
17	Thermostat SPST (205)
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
22	WPL 9752006
23	Seal, Rubber
26	Cover, Backsplash
27	Endcap, Backsplash (Almond (
27	Endcap, Backsplash (Almond (Left))
27	Endcap, Backsplash (White, Right)
27	Endcap, Backsplash (White, Left)
28	WPL 9753910CT
28	WPL 9753910CW
32	WP4159387 Whirlpool Compactor Screw
33	Back Splash (Screw (4) 10AB x 1/2“)
34	Screw, 10-16 x 1
34	Head, Burner (Pad, Burner Ring)
