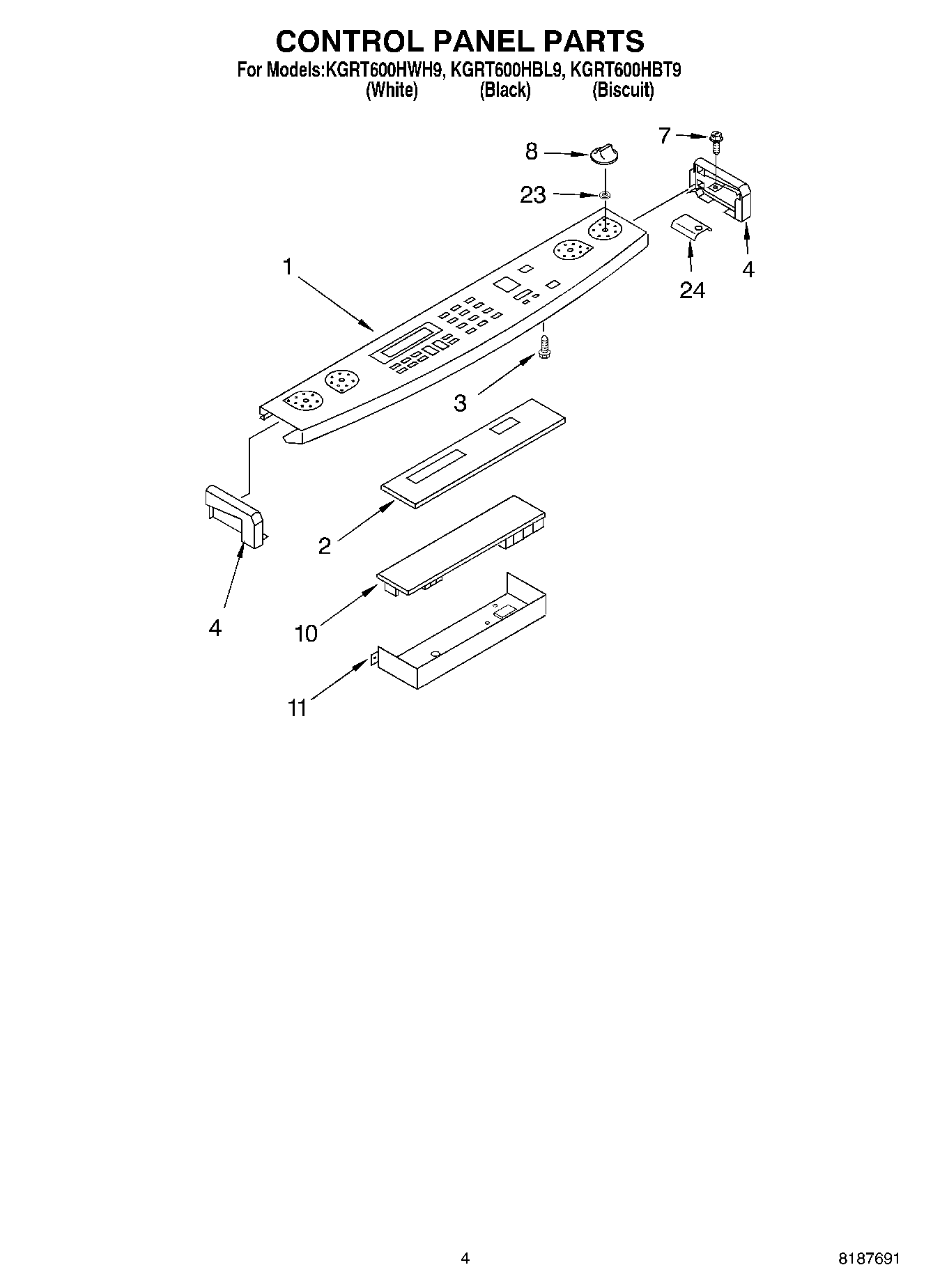

KGRT600HWH9 03 – CONTROL PANEL
Products
Position
Product
1
Console, Glass (White)
1
Console, Glass (Black)
1
Console, Glass (Biscuit)
2
Board, Display
3
Screw
4
End Cap (Biscuit, Right)
4
End Cap (Black, Right)
4
End Cap (Biscuit, Left)
4
End Cap (White, Right)
4
End Cap (Black, Left)
4
End Cap (Left Hand) (White)
7
WP4159387 Whirlpool Compactor Screw
8
W10405147 Whirlpool Knob
8
Knobs, Control (Biscuit)
8
Knobs, Control (White)
10
Board, Power
11
Shield, Control Panel
23
WP3188425 Whirlpool Seal Switch
24
Console, Glass (Spacer)
←
