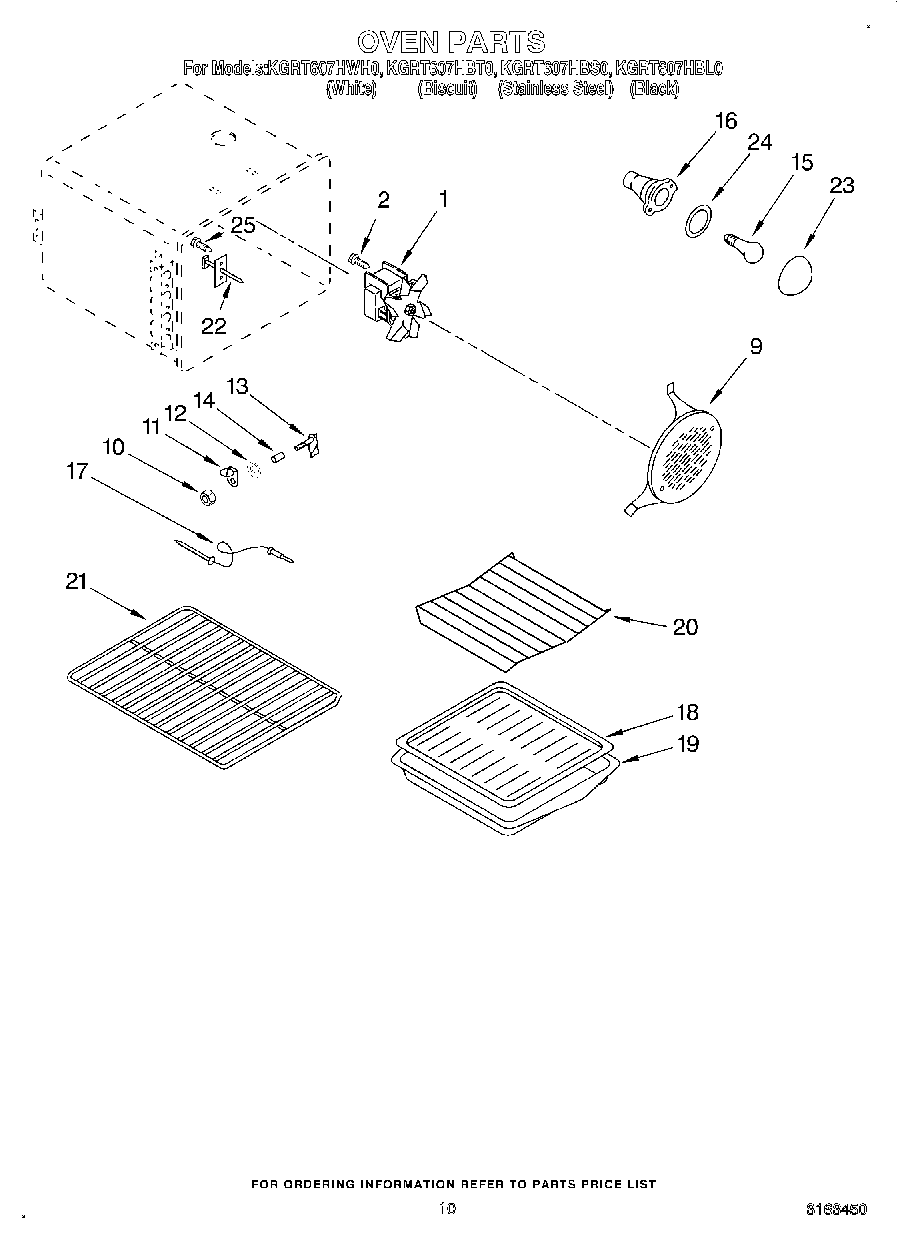

| 1 | Fan Assembly |
| 2 | Screw (4) 10 x 1/2 |
| 9 | Screw (2) 8 x 3/8 |
| 9 | Baffle, Convection |
| 10 | Lock-Nut, Cvr.Jack |
| 11 | Jack Cover |
| 12 | Gasket |
| 13 | Receptacle, Probe |
| 14 | Spacer - Tubing |
| 15 | RANGE ONLY 40W 120V APPL BULB |
| 16 | W11594027 Whirlpool Range Oven Light Socket |
| 17 | Probe |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Rack, Roasting |
| 21 | Rack, Standard (3) |
| 22 | Sensor |
| 23 | WP9781049 Whirlpool Light Lens |
| 24 | WP3184533 Whirlpool Range Light Lens Gasket |
| 25 | Screw |
