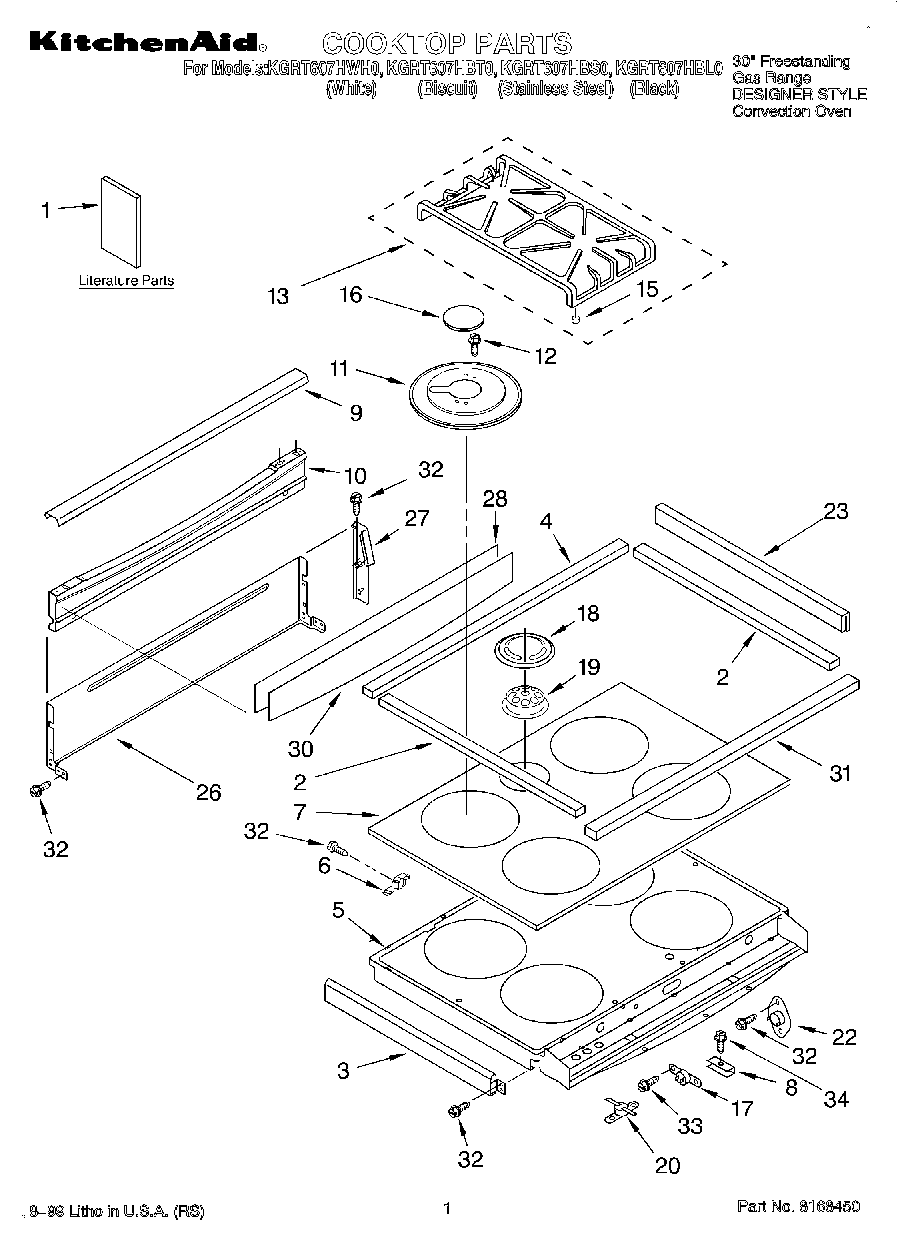

KGRT607HBS0 01 – COOKTOP, LITERATURE

KGRT607HBS0 01 – COOKTOP, LITERATURE

Written by

in

KGRT607HBS0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Tech Sheet)
1Literature Parts (LP Installation Instructions)
1Literature Parts (Smart & Easy Guide)
1Installation Instructions (English)
1Literature Parts (Wiring Diagram)
1WPL LIT9752775
1Use & Care Guide (English)
2Gasket, Cooktop
3WPL 9751275PC
3(Trim, Cooktop (Left Hand)) (White)
3Trim, Cooktop (White (Right))
3Trim, Cooktop (Black (Right))
3WPL 9751276PC
3WPL 9751276PB
4Rear Gasket
5Support, Burner
6Bracket, Pivot
6Washer, Pivot
7Cooktop, Glass (Biscuit)
7Cooktop, Glass (Opaque White)
7Cooktop, Glass (Black)
8Support Clip (4)
9Cover, Light (Biscuit)
9Cover, Light (Black)
9Cover, Light (White)
10Backsplash (Biscuit)
10Backsplash (Black)
10Backsplash (White)
11Bezel, Burner (Mouse Gray) (14K LF)
11(Bezel, Burner (Black)) (6K RF-LR)
11Bezel, Burner (Mouse Gray) (6K RF-LR)
11Bezel, Bu
11WPL 9753602GS
11(Bezel, Burner (Black)) (14K LF)
12WP3368921 Whirlpool Screw
13WPL 9753616GB
13WPL 9753616GS
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16Cap, Burner 6K (1) (Gray)
16WPL 9753939GS
16WP3191904 Whirlpool Burner Cap
16WP3191898 Whirlpool Surface Burner Cap Black
16WP3191905 Whirlpool Burner Cap
16WPL 9753939GB
17Thermostat SPST (205)
18WPL 9751271GC
18WPL 9751271GW
18WPL 9751271GB
19WPL 9751366
20WP9759944 Whirlpool Thermostat
22WPL 9752006
23Seal, Rubber
26Cover, Backsplash
27Endcap, Backsplash (Biscuit, Left)
27Endcap, Backsplash (Black, Left)
27Endcap, Backsplash (White, Left)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (White, Right)
27Endcap, Backsplash (Black, Right)
28WPL 9753910CC
28WPL 9753910CB
28WP9753292 Whirlpool Backsplash Glass
28WPL 9753910CW
30WPL 9753291
31Gasket, Console
32WP4159387 Whirlpool Compactor Screw
33Back Splash (Screw (4) 10AB x 1/2“)
34Screw, 10-16 x 1
