KGRT607HBS0 02 – COOKTOP BURNER

KGRT607HBS0 02 – COOKTOP BURNER

Written by

in

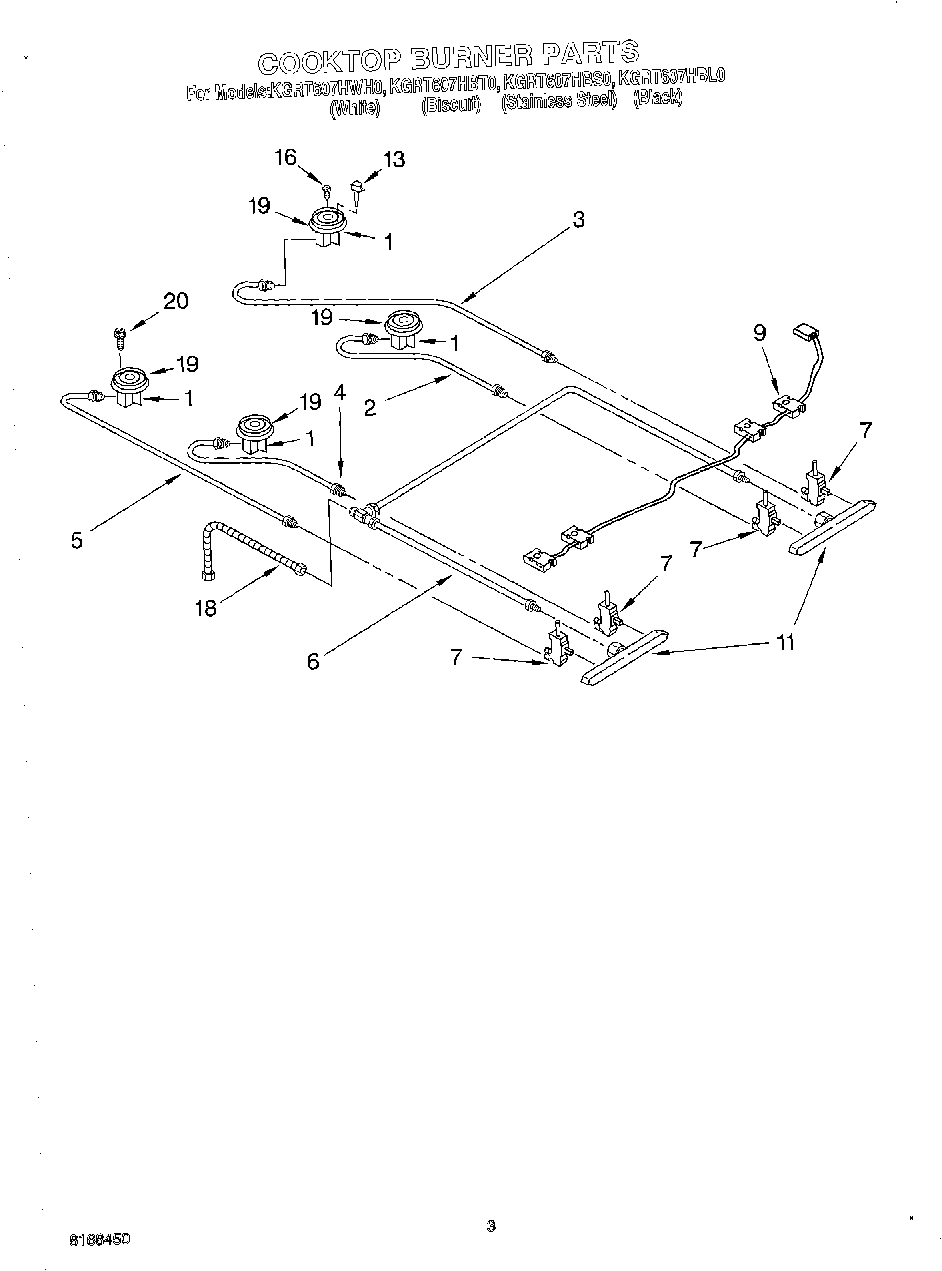

KGRT607HBS0 02 – COOKTOP BURNER

Products

PositionProduct
1Burner Base W/Orifice (6K RF-LR)
1Burner Base W/Orifice (12K RR)
1Burner Base W/Orifice (14K LF)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tubing, Manifold
7Bolt (Gas Valve)
7Valve, Burner (14K LF Plain Stem)
7Valve, Burner Small (2)
7Valve, Burner Large (2)
9Spark Switch & Harness Assembly
11Manifold
13Ignitor
16WP9753928 Whirlpool Orifice Assembly
16WP9753929 Whirlpool Orifice
16WP9753930 Whirlpool Orifice
18Tubing, Flex
19Head, Burner (LF)
19Head, Burner (RF)
19Head, Burner (14K LF)
20WPW10067840 Whirlpool Screw
