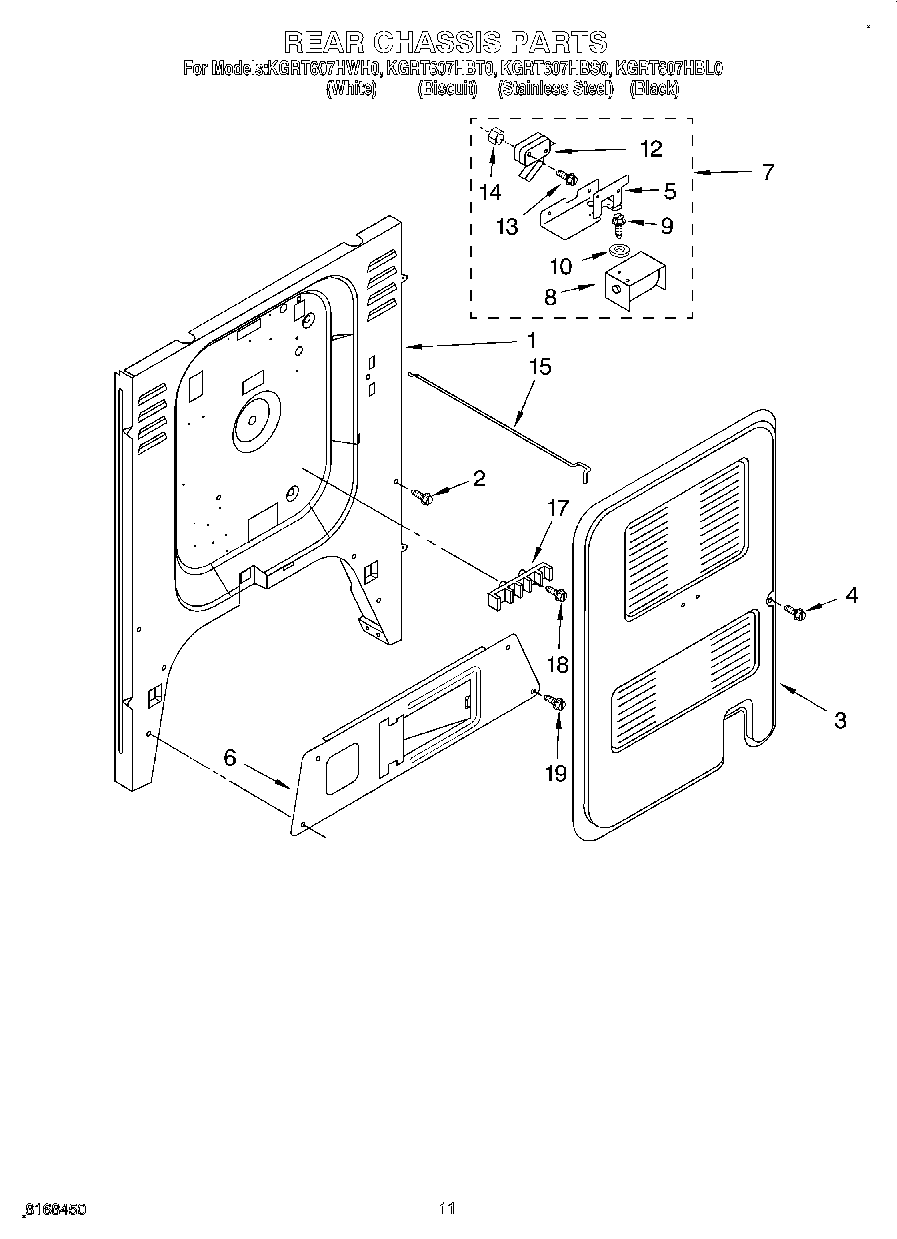

KGRT607HBS0 08 – REAR CHASSIS, OPTIONALadmin2025-04-26T11:32:12+00:00KGRT607HBS0 08 – REAR CHASSIS, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Back panel, Chassis |
| 2 | 340184 Whirlpool Screw |
| 3 | Panel, Rear Cover |
| 4 | Screw (4) 10 x 3/8 |
| 5 | Bracket, Lock |
| 6 | Bracket, Regulator Valve |
| 7 | Oven Lock Assembly |
| 8 | Solenoid |
| 9 | Screw (2) 10-32 x 5/16 |
| 10 | Washer (2) |
| 12 | Switch, Interlock |
| 13 | Screw, (2) |
| 14 | Nut (2) |
| 15 | Rod, Lock |
| 17 | WP8203546 Whirlpool Terminal Block |
| 18 | Screw, (2) 10-16 x 1 |
| 19 | WP4159387 Whirlpool Compactor Screw |
| 19 | 1 |
| 19 | Wire (14 Ga. 200 c Brown) |
| 19 | 18 Ga. 80~c Rating (Red) |
| 19 | Wire (12 Ga. 150 c Black) |
| 19 | WPL 9751164 |
| 19 | Insulation |
| 19 | 8212471 Whirlpool Oven Paint |
| 19 | WPL 9781639 |
| 19 | WPL 9753808 |
| 19 | WPL 9751708 |
| 19 | WP9755428 Whirlpool Orifice Spud |
| 19 | WPL 9781055 |
| 19 | WPL 9752769 |
| 19 | WPL 9752717 |
| 19 | WPL 9753374 |
| 19 | Insulation, Rear |
| 19 | WPL 9751868 |
| 19 | Grease |
| 19 | Wire (14 Ga. 150 c Yellow) |
| 19 | Wire (14 Ga. 150 c Orange) |
| 19 | Wire (14 Ga. 150 c Green) |
| 19 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 19 | WPL 799832 |
| 19 | PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) |
| 19 | 511873 Whirlpool Refrigerator Paint |
| 19 | 4392901 Whirlpool Biscuit Spray Paint |
| 19 | 4392899 Whirlpool Biscuit Touch-Up Paint |
| 19 | 350942 Whirlpool Spray Paint |
| 19 | Golden Harvest (Uncut) |
| 19 | Golden Harvest |
| 19 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 19 | Almond (Uncut) |
| 19 | WP72107 Whirlpool Touchup |
| 19 | 799344 Whirlpool Refrigerator Paint |
| 19 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 19 | 350956 Whirlpool Spray Assembly |
| 19 | WA906B Whirlpool Cooktop Glass Scraper |
| 19 | Wire, 25` Roll (Black 14 Ga.) |
| 19 | Wire (14 Ga. 150 c Brown) |
| 19 | Wire (14 Ga. 150 c Blue) |
| 19 | 242831 Whirlpool Oven Wire |
| 19 | 3400964 Whirlpool Oven Clip |
| 19 | WPL 9751745 |
| 19 | WPL 9750376 |
| 19 | W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 19 | Paint, Spray 13 Oz. (Avocado) |
| 19 | paint, spray 13 oz. (coffee) |
| 19 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 19 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 19 | 285006 Whirlpool Spray |
| 19 | WPW10339879 Whirlpool Wire Tie |
| 19 | Wire, 25`` Roll (White 14 GA.) |
| 19 | Wire, 25` Roll (Red 14 Ga.) |
| 19 | 350930 Whirlpool White Spray Paint |
