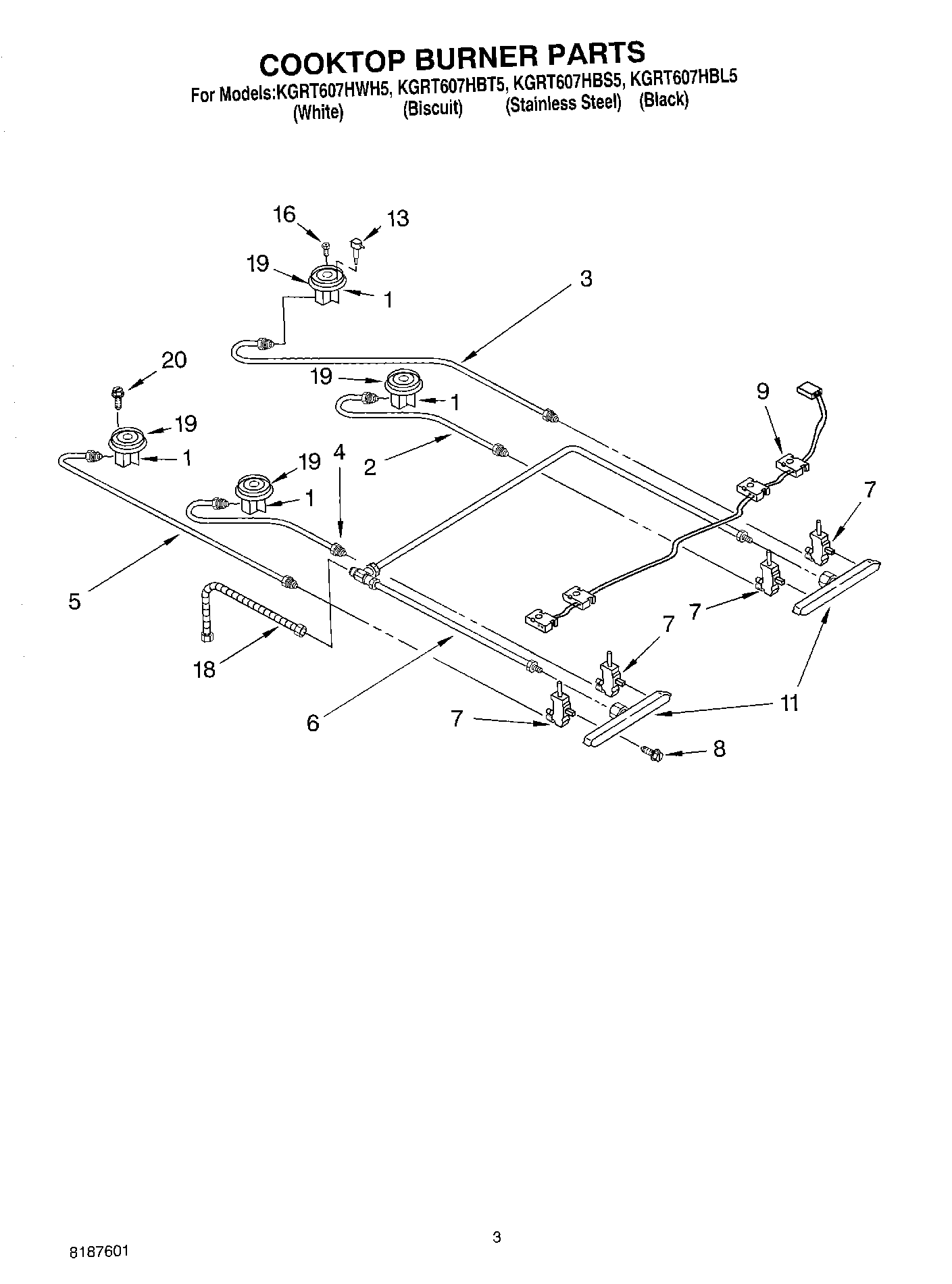

KGRT607HBT5 02 – COOKTOP BURNER

Products

Position	Product
1	Orifice Holder (Includes Orific & Ignitor) (Auxi)
1	Burner Base w/Orifice (Large (2))
1	Burner Base W/Orifices (14K LF)
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Tube, Manifold
7	Valve, Burner Small (2)
7	Valve, Burner Large (2)
7	Valve, Burner (14K LF Plain Stem)
8	Bolt (Gas Valve)
9	Spark Switch & Harness Assembly
11	Manifold (Left Hand)
11	Manifold (Right Hand)
13	WP9754215 Whirlpool Surface Igniter
16	WP9753928 Whirlpool Orifice Assembly
16	WP9753929 Whirlpool Orifice
16	WP9753930 Whirlpool Orifice
18	Tubing, Flex
19	WP4455979 Whirlpool Range Small Burner Head
19	WP4455981 Whirlpool Burner Head
19	Head, Burner (Pad, Burner Ring)
19	Burner Head (Turbi)
20	WPW10067840 Whirlpool Screw
