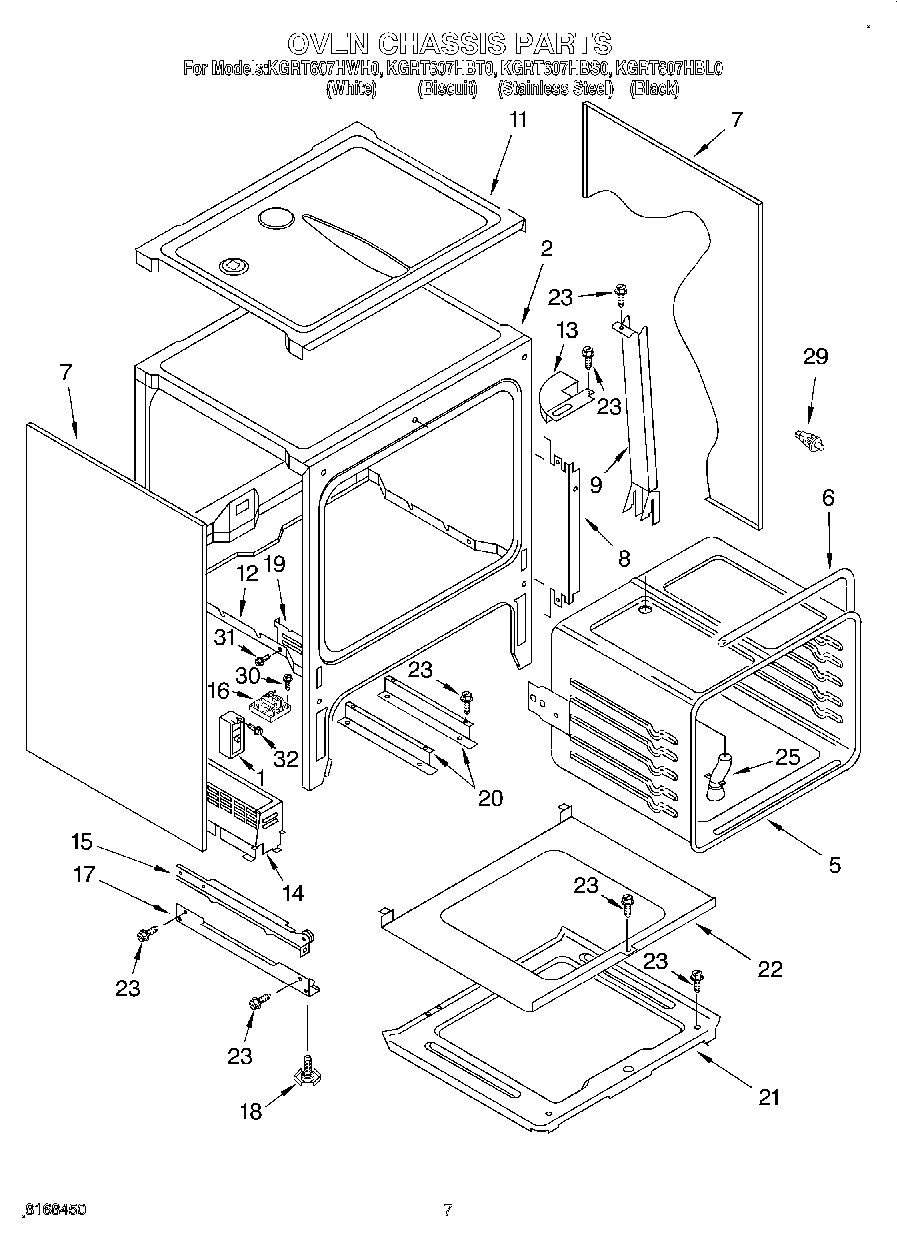

KGRT607HWH0 05 – OVEN CHASSIS

Products

Position	Product
1	WP8053421 Whirlpool Oven Spark Module
1	8528351 Whirlpool Clip
2	Chassis, Front
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
7	Body, Side (Biscuit)
7	Body, Side (White)
8	Shield, Insulation
9	Duct, Side Fan
11	Burner Box
12	Retainer, Insulation
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
20	Support Rail
21	Shield
22	Plate, Reflector
23	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
29	Switch, Door
30	Screw, (3) No.8 x 1``
31	Screw (2) 8 x 3/8
32	Screw
