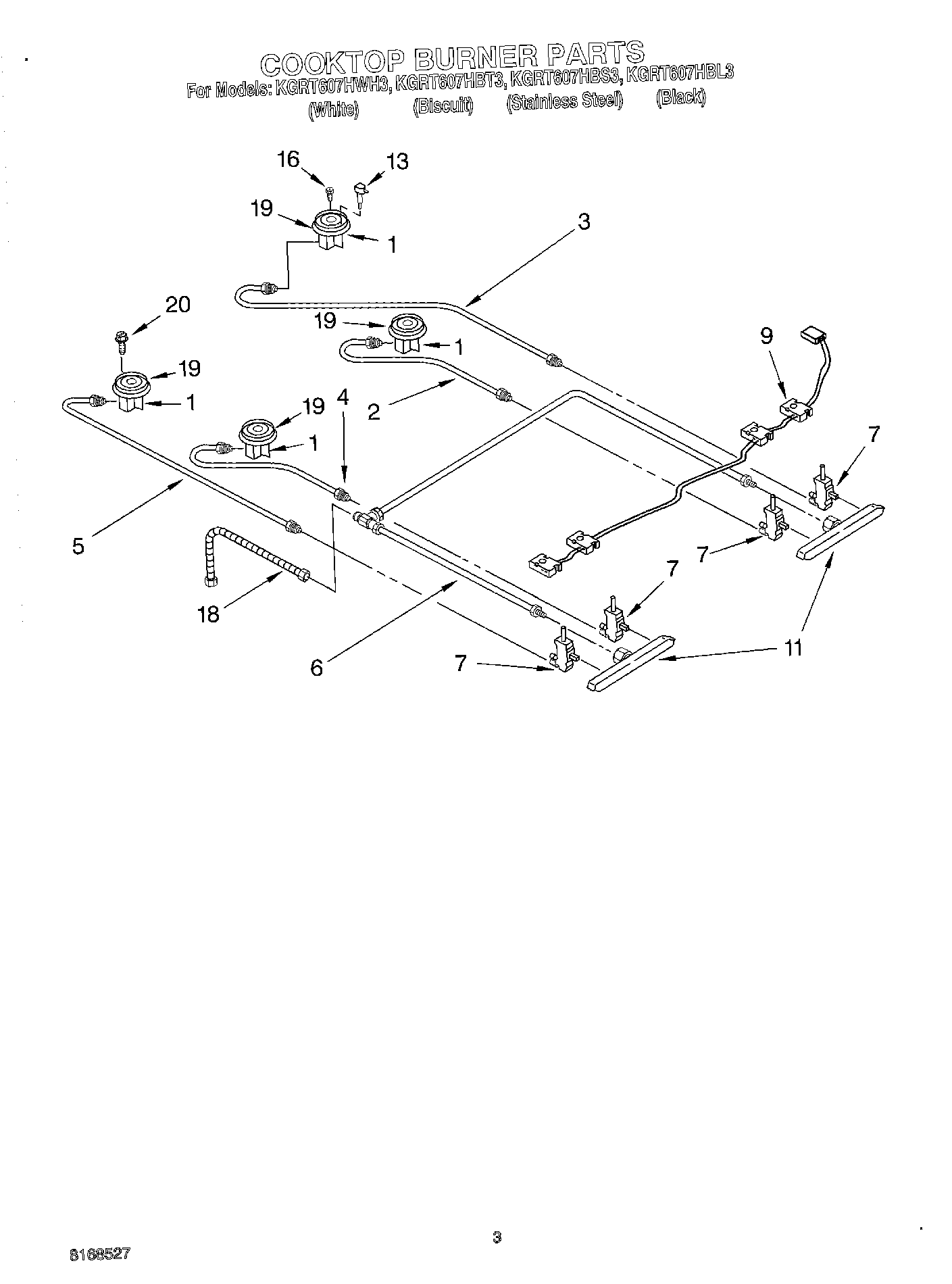

KGRT607HWH3 02 – COOKTOP BURNER
Written by
in
KGRT607HWH3 02 – COOKTOP BURNER
Products
Position
Product
1
Burner Base W/Orifices (14K LF)
1
Burner Base w/Orifice (Large (2))
1
Orifice Holder (Includes Orific & Ignitor) (Auxi)
2
Tubing, Burner (RF)
3
Tubing, Burner (RR)
4
Tubing, Burner (LF)
5
Tubing, Burner (LR)
6
Tubing, Manifold
7
Bolt (Gas Valve)
7
Valve, Burner Small (2)
7
Valve, Burner Large (2)
7
Valve, Burner (14K LF Plain Stem)
9
Spark Switch & Harness Assembly
11
Manifold
13
WP9754215 Whirlpool Surface Igniter
16
WP9753928 Whirlpool Orifice Assembly
16
WP9753929 Whirlpool Orifice
16
WP9753930 Whirlpool Orifice
18
Tubing, Flex
19
WP4455981 Whirlpool Burner Head
19
WP4455979 Whirlpool Range Small Burner Head
19
Head, Burner (14K – LF)
20
WPW10067840 Whirlpool Screw
←
