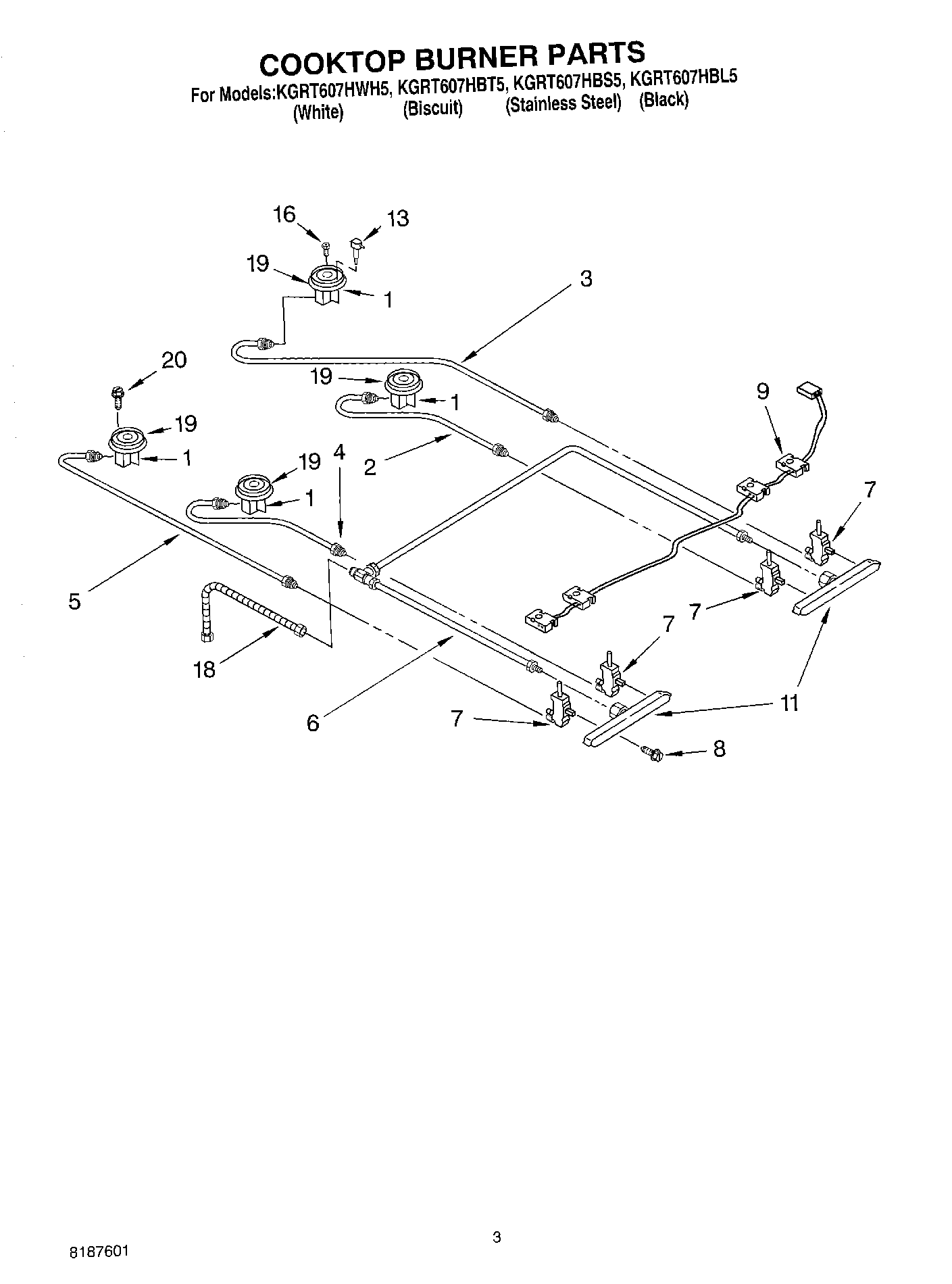

KGRT607HWH5 02 – COOKTOP BURNER

Products

PositionProduct
1Orifice Holder (Includes Orific & Ignitor) (Auxi)
1Burner Base w/Orifice (Large (2))
1Burner Base W/Orifices (14K LF)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tube, Manifold
7Valve, Burner Small (2)
7Valve, Burner Large (2)
7Valve, Burner (14K LF Plain Stem)
8Bolt (Gas Valve)
9Spark Switch & Harness Assembly
11Manifold (Left Hand)
11Manifold (Right Hand)
13WP9754215 Whirlpool Surface Igniter
16WP9753928 Whirlpool Orifice Assembly
16WP9753929 Whirlpool Orifice
16WP9753930 Whirlpool Orifice
18Tubing, Flex
19WP4455979 Whirlpool Range Small Burner Head
19WP4455981 Whirlpool Burner Head
19Head, Burner (Pad, Burner Ring)
19Burner Head (Turbi)
20WPW10067840 Whirlpool Screw
