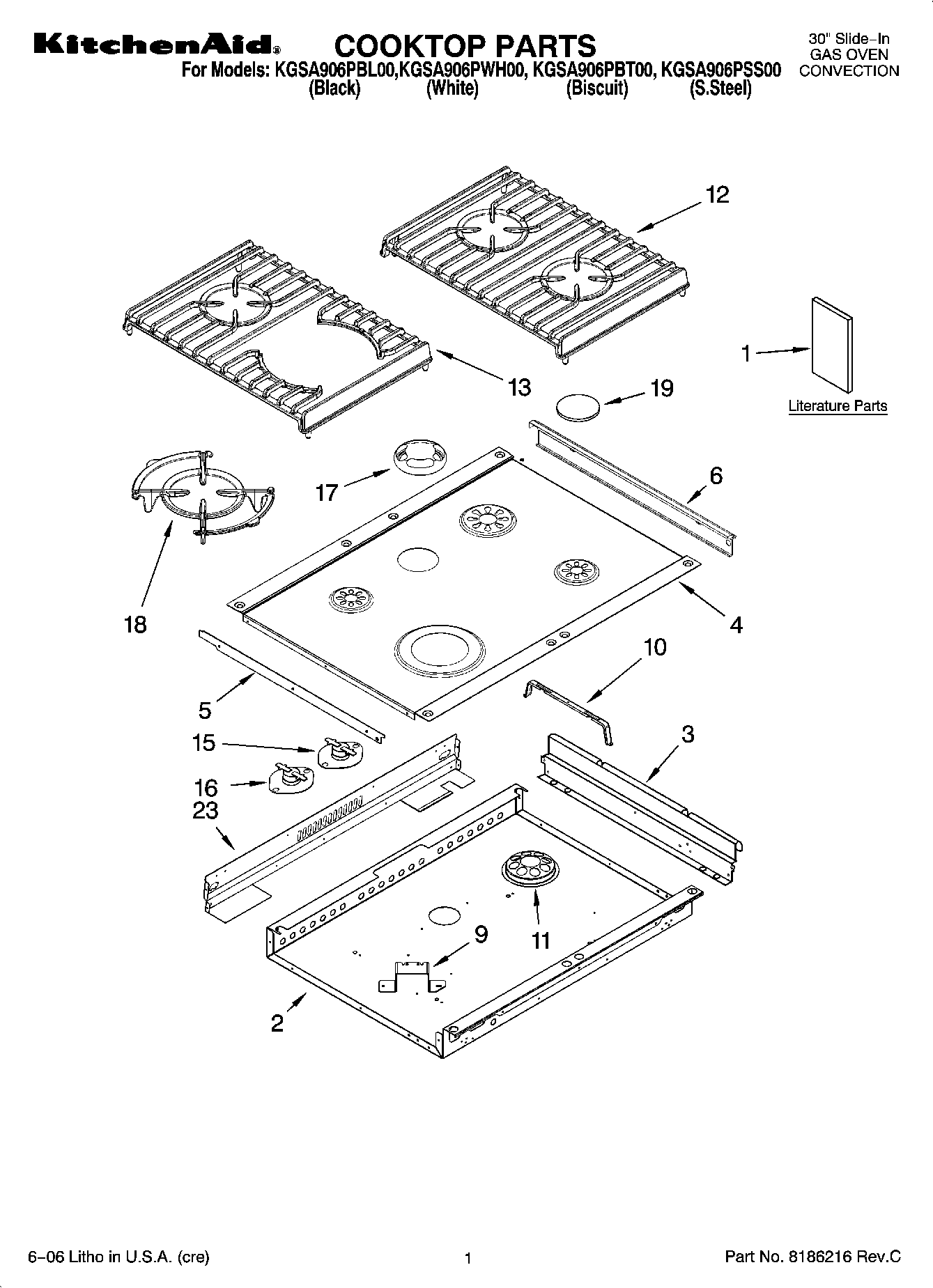

KGSA906PBL00 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Installation Instructions
1Tech Sheet
1Anti-Tip Instruct.
1Safe Cooking Tips
2Burner Box
3Bracket, Mounting
4Cooktop (Black)
4Cooktop (White)
4Cooktop (Biscuit)
5Wall, Side Cktp (Black)
5Wall, Side Cktp (Biscuit)
5Wall, Side Cktp (White)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (S.Steel RH)
6TRIM, COOKTOP (RIGHT) (BISCUIT)
6TRIM, COOKTOP (LEFT) (BISCUIT)
6Trim-CkTop, SI (Black RH)
9Bracket, Burner
9WP12990527 Whirlpool Microwave Screw
10WP9756821 Whirlpool Support
10WP4449809 Whirlpool Screw
11Dome Cap, Vent
12Grate, Burner (Moleskin)
12Grate, Burner (Mouse Grey)
12Grate, Burner (Coal Black)
12Grate, Burner (Black)
13Grate, Brnr (TCB) (Black)
13Grate, Brnr (TCB) (Coal Black)
13Grate, Brnr (TCB) (Mouse Grey)
13Grate, Brnr (TCB) (Moleskin)
15WP9757807 Whirlpool High Limit Thermostat
16W10491985 Whirlpool Screw
16WP9759944 Whirlpool Thermostat
17Vent, Center (Biscuit)
17Vent, Center (Black)
17Vent, Center (White)
18Grate
18WPL 9760222CB
18WPL 9760222MG
18WPL 9760222MS
19WP3191898 Whirlpool Surface Burner Cap Black
19WP3191904 Whirlpool Burner Cap
19WP3191905 Whirlpool Burner Cap
19WPL 3191904MS
19WPL 3191898MS
19Cap, Burner 6K (1) (Gray)
19WP8284669 Whirlpool Burner Cap
19WP4456536 Whirlpool Burner Cap
23Screw (4)
23WPL 9759627
