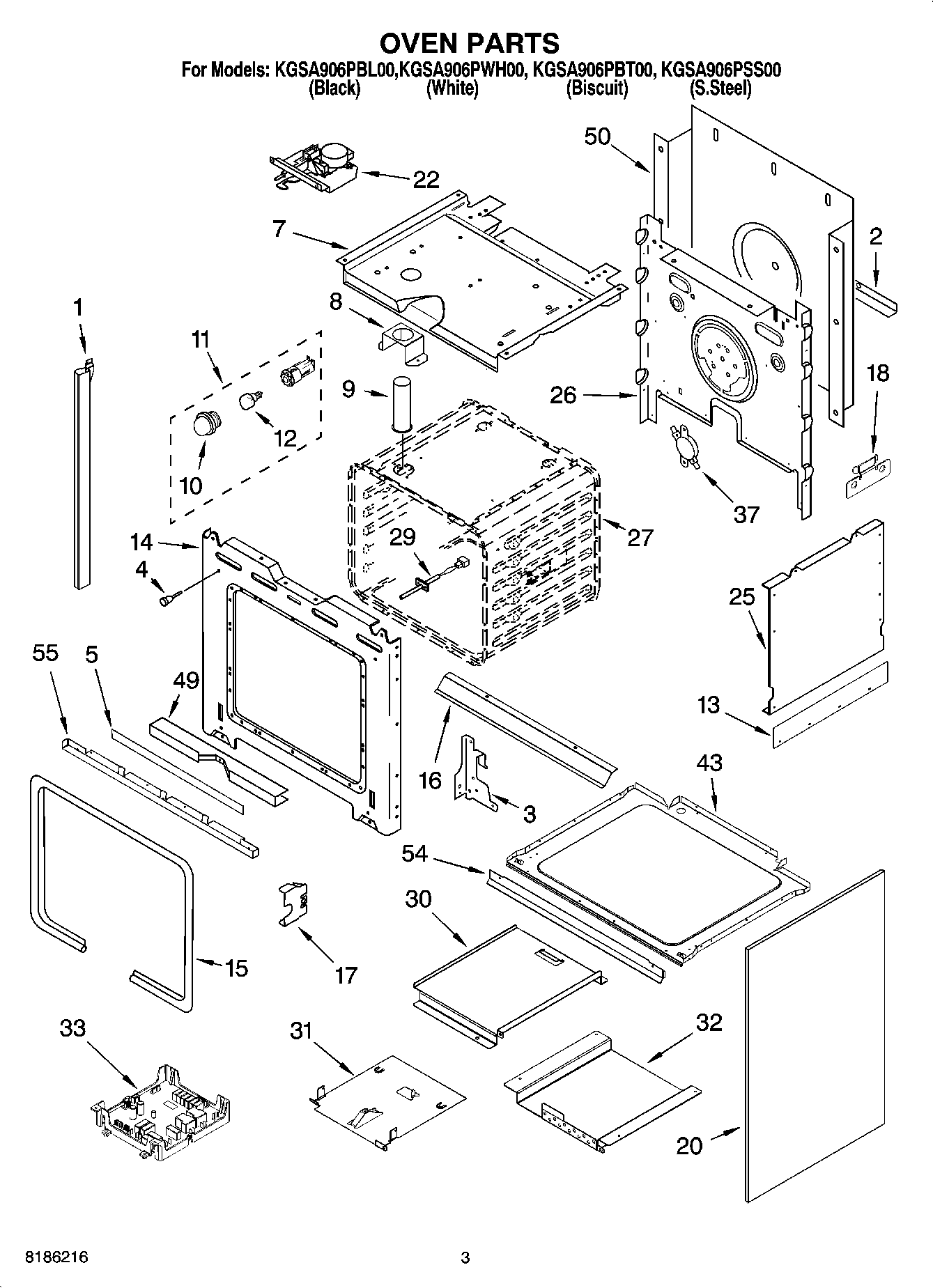

KGSA906PBL00 02 – OVEN PARTS

Products

Position	Product
1	WP3400832 Whirlpool Screw
1	Trim, Side (Left Hand) (White)
1	Trim, Side (Left Hand) (S.Steel)
1	Trim, Side (Left Hand) (Biscuit)
1	Trim, Side (Left Hand) (Black)
1	Trim, Side (Right Hand) (White)
1	Trim, Side (Right Hand) (S.Steel)
1	Trim, Side (Right Hand) (Biscuit)
1	Trim, Side (Right Hand) (Black)
2	Brace, Main Back
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Insulation, Bottom Vent
7	Top, Chassis
8	Bracket, Vent Sprt
9	SCREW
9	Tube, Vent
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Shield, Heat
13	WP4449743 Whirlpool Screw
14	Frame, Front
14	WP4450118 Whirlpool Nut
14	Screw
15	W11675844 Whirlpool Oven Gasket
16	Deflector, Vent Bottom
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
20	Body, Side (Biscuit)
20	Body, Side (White)
20	Body, Side (Black)
22	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Bracket, GOC
31	Slide, GOC
32	W10083460 Whirlpool Slide Assembly
33	Screw (4)
33	Central, Appliance
37	WP8300802 Whirlpool Thermostat
43	Base, Chassis
43	Gasket
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
54	Vent, Bottom Upper (S. Steel)
54	Vent, Bottom Upper (Biscuit)
54	Vent, Bottom Upper (Black)
54	Ve
55	WPL ARI88124A3
55	WPL 9756485BL
55	WPL 9756485BT
55	WPL 9756485SS
55	WPL 9756485WH
55	WPL 9756817
55	WPL 9756470
