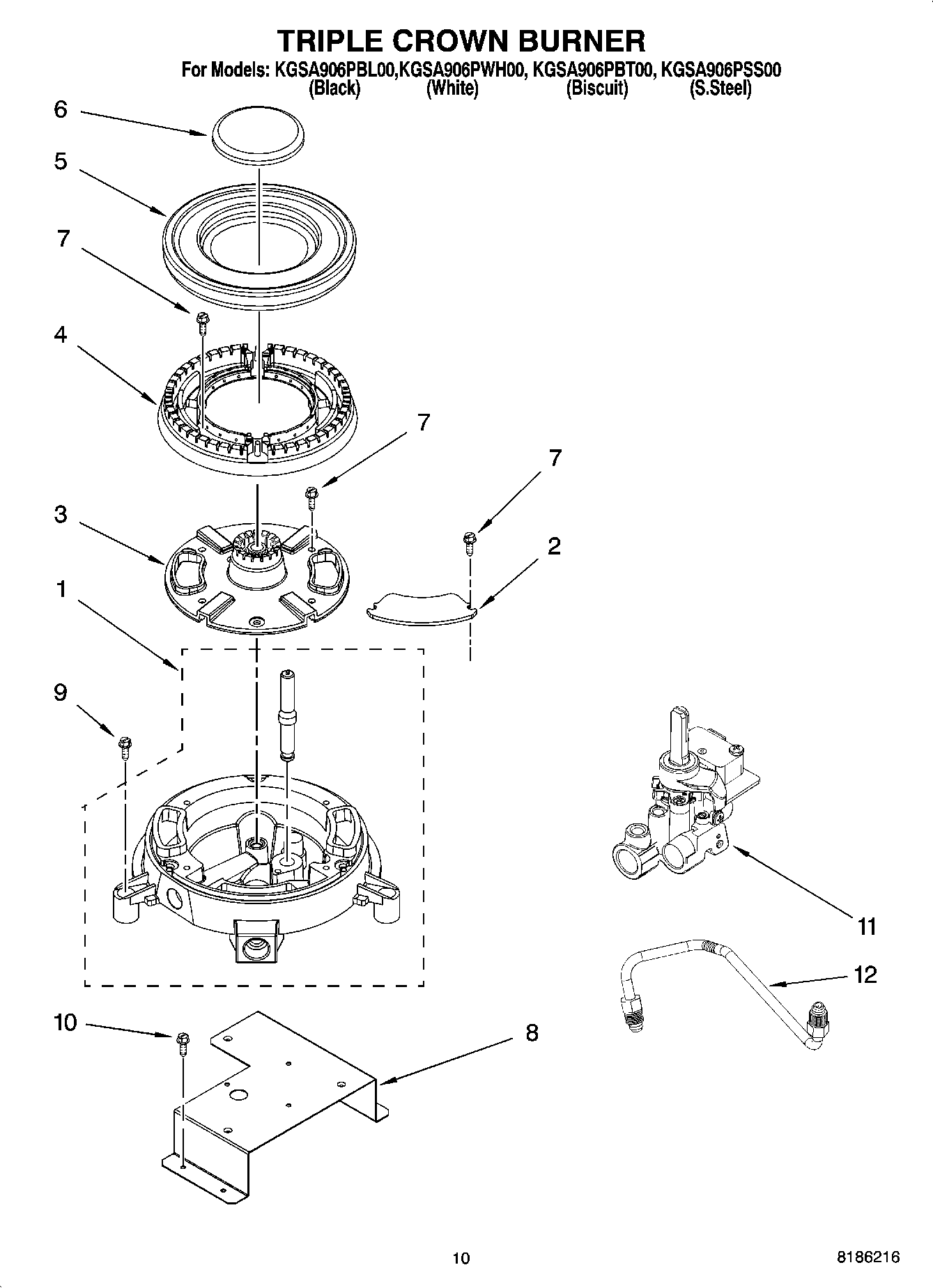

KGSA906PBL00 07 – TRIPLE CROWN BURNERadmin2025-04-26T11:32:55+00:00KGSA906PBL00 07 – TRIPLE CROWN BURNER
Products
| Position | Product |
|---|
| 1 | Burner Assy., Triple Crown Brnr |
| 2 | 8285250 Whirlpool Oven Cover Plate |
| 3 | WP8285255 Whirlpool Burner Head |
| 4 | WP8285256 Whirlpool Burner Head |
| 5 | Cap, Burner Ext. (Mouse Gray) |
| 5 | WP8285258 Whirlpool Top Cap |
| 5 | Cap, Burner Ext. (Black) |
| 5 | Cap, Burner Ext. (Moleskin) |
| 6 | Cap, Burner Int. (Black) |
| 6 | Cap, Burner Int. (Mouse Gray) |
| 6 | WP9758829CB Whirlpool Burner Cap |
| 6 | Cap, Burner Int. (Moleskin) |
| 8 | Bracket, Triple Crown Burner |
| 9 | WP12990527 Whirlpool Microwave Screw |
| 10 | WP3400702 Whirlpool Screw |
| 11 | Valve, T.C.B. |
| 12 | Tube, T.C.B. Gas |
