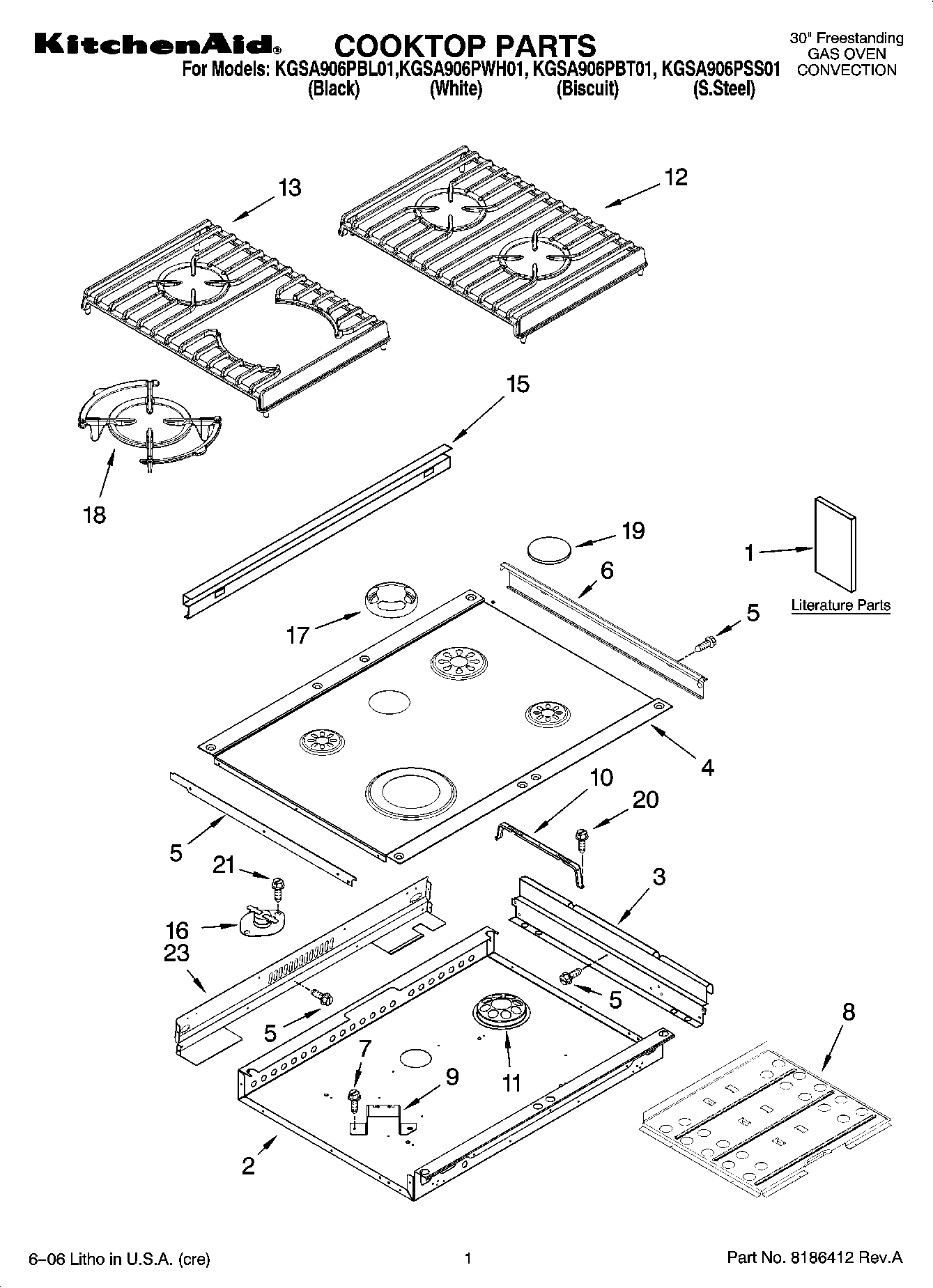

KGSA906PBL01 01 – COOKTOP PARTS

Products

Position	Product
1	Safe Cooking Tips
1	Tech Sheet
1	Installation Instructions
1	Safe Cooking Tips (French)
1	Anti-Tip Instruct.
1	Guide, Easy Set
1	Guide, Easy Set (French)
1	Use & Care Guide
2	Burner Box
3	Bracket, Mounting
4	Cooktop (White)
4	Cooktop (Biscuit)
4	Cooktop (Black)
5	WP3196557 Whirlpool Screw
6	Trim-CkTop, SI (White LH)
6	Trim-CkTop, SI (S.Steel LH)
6	Trim-CkTop, SI (Black LH)
6	Trim-CkTop, SI (White RH)
6	Trim-CkTop, SI (S.Steel RH)
6	Trim-CkTop, SI (Black RH)
6	Trim-CkTop, SI (Biscuit RH)
6	Trim-CkTop, SI (Biscuit LH)
7	WP12990527 Whirlpool Microwave Screw
8	Shield, Heat
9	Bracket, Burner
10	WP9756821 Whirlpool Support
11	Dome Cap, Vent
12	Grate, Burner (Black)
12	Grate, Burner (Mouse Grey)
12	Grate, Burner (Coal Black)
12	Grate, Burner (Moleskin)
13	Grate, Brnr (TCB) (Black)
13	Grate, Brnr (TCB) (Mouse Grey)
13	Grate, Brnr (TCB) (Moleskin)
13	Grate, Brnr (TCB) (Coal Black)
15	Trim, Cooktop Rear (Biscuit)
15	Trim. Cooktop Rear (S.Steel)
15	Trim, Cooktop Rear (White)
15	Trim, Cooktop Rear (Black)
16	WP9759944 Whirlpool Thermostat
17	Vent, Center (White)
17	Vent, Center (Biscuit)
17	Vent, Center (Black)
18	Grate
18	WPL 9760222MS
18	WPL 9760222MG
18	WPL 9760222CB
19	WP3191898 Whirlpool Surface Burner Cap Black
19	WP3191904 Whirlpool Burner Cap
19	WP3191905 Whirlpool Burner Cap
19	Cap, Burner 6K (1) (Gray)
19	WP8284669 Whirlpool Burner Cap
19	WP4456536 Whirlpool Burner Cap
19	WPL 3191904MS
19	WPL 3191898MS
20	WP4449809 Whirlpool Screw
21	W10491985 Whirlpool Screw
23	WPL 9759627
