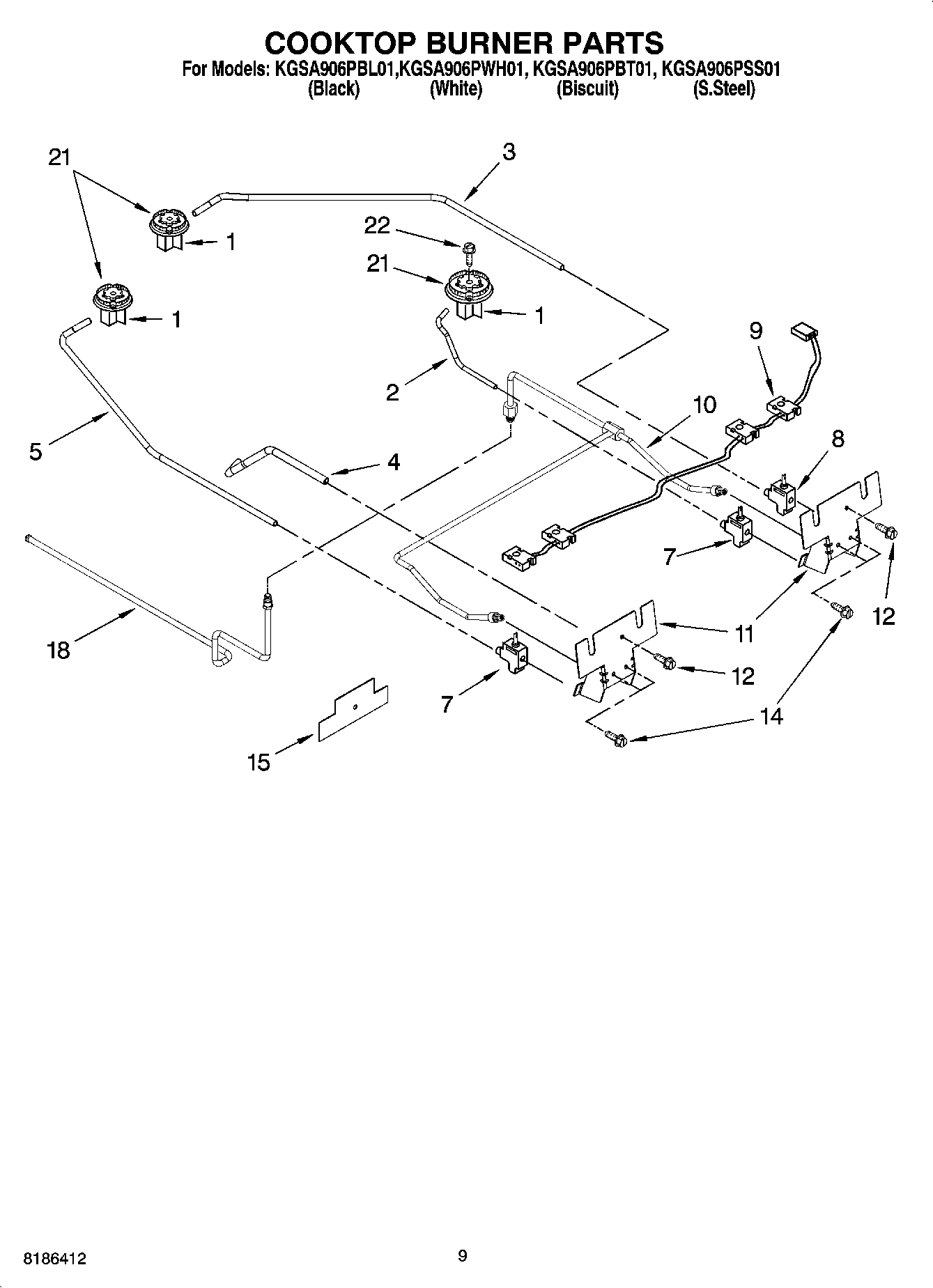

KGSA906PBL01 06 – COOKTOP BURNER PARTS

Products

PositionProduct
1WPW10244714 Whirlpool Orifice Holder
1Burner Base w/Orifice (Small (2))
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
7WP4456816 Whirlpool Burner Valve
8WP4456817 Whirlpool Burner Valve
9WP9756824 Whirlpool Wire Harness
10Tube, Manifold
11Manifold (Cooktop)
11Manifold (TCB)
12WP3196557 Whirlpool Screw
14WP3186217 Whirlpool Screw
15Plate, Air Block
184453754 Whirlpool Oven Burner Tube
21Head, Burner (Small)
21WP4455981 Whirlpool Burner Head
22WP3368921 Whirlpool Screw
