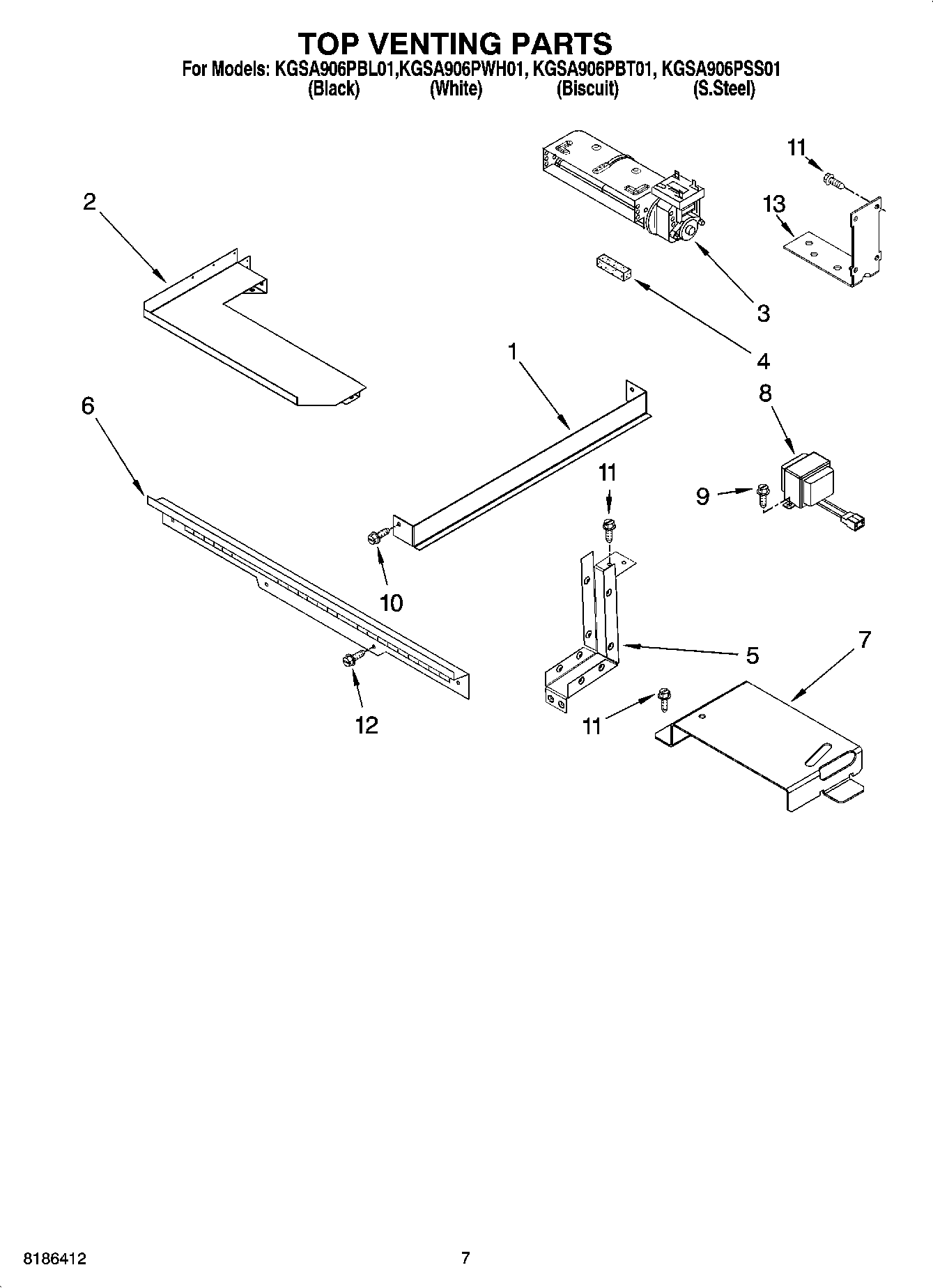

KGSA906PBT01 04 – TOP VENTING PARTS

Products

PositionProduct
1Front, Air Duct
2Top, Air Duct (R.Hand)
2Top, Air Duct (L.Hand)
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
5Corner, Air Duct (L.Hand)
5Corner, Air Duct (R.Hand)
6Vent, (Control Panel)
7WP9757829 Whirlpool Mounting Bracket
8Transformer
9WP3196557 Whirlpool Screw
10Screw
11WP4449809 Whirlpool Screw
12WP4450038 Whirlpool Screw
13WP4455352 Whirlpool Mounting Bracket
