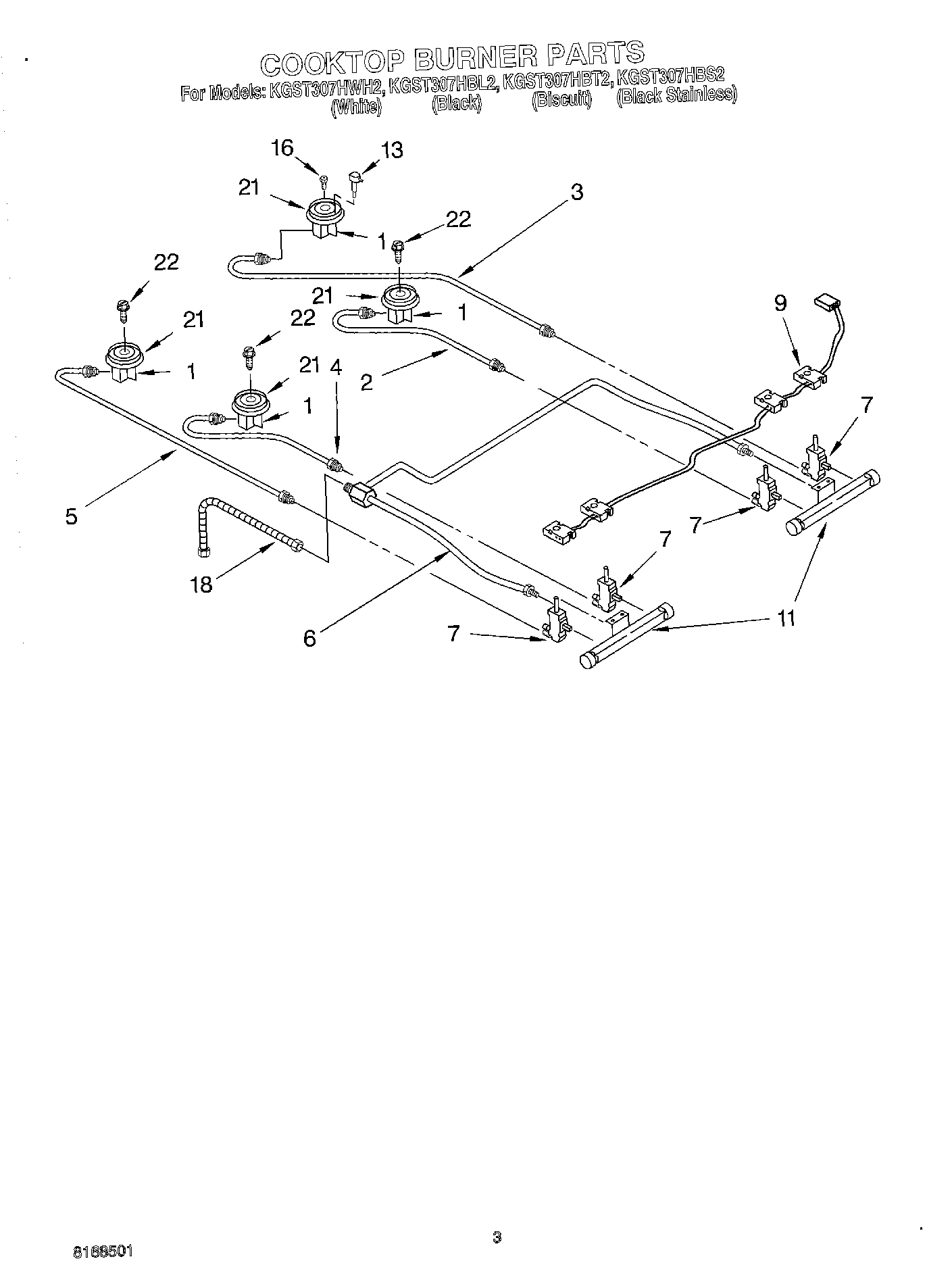

KGST307HBT2 02 – COOKTOP BURNER

KGST307HBT2 02 – COOKTOP BURNER

Written by

in

KGST307HBT2 02 – COOKTOP BURNER

Products

PositionProduct
1Burner Base w/Orifice (Large (2))
1Burner Base W/Orifices (14K LF)
1Orifice Holder (Includes Orific & Ignitor) (Auxi)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tube, Manifold
7Valve, Burner Large (2)
7Valve, Burner Small (2)
7Bolt (Gas Valve)
7Valve, Burner (14K LF Plain Stem)
9Spark Switch & Harness Assembly
11Manifold (Right Hand)
11Manifold (Left Hand)
13WP8523793 Whirlpool Oven Surface Igniter
16WP9753928 Whirlpool Orifice Assembly
16WP9753930 Whirlpool Orifice
16WP9753929 Whirlpool Orifice
18Tubing, Flex
21WP4455981 Whirlpool Burner Head
21WP4455979 Whirlpool Range Small Burner Head
21Head, Burner (14K – LF)
22WPW10067840 Whirlpool Screw
