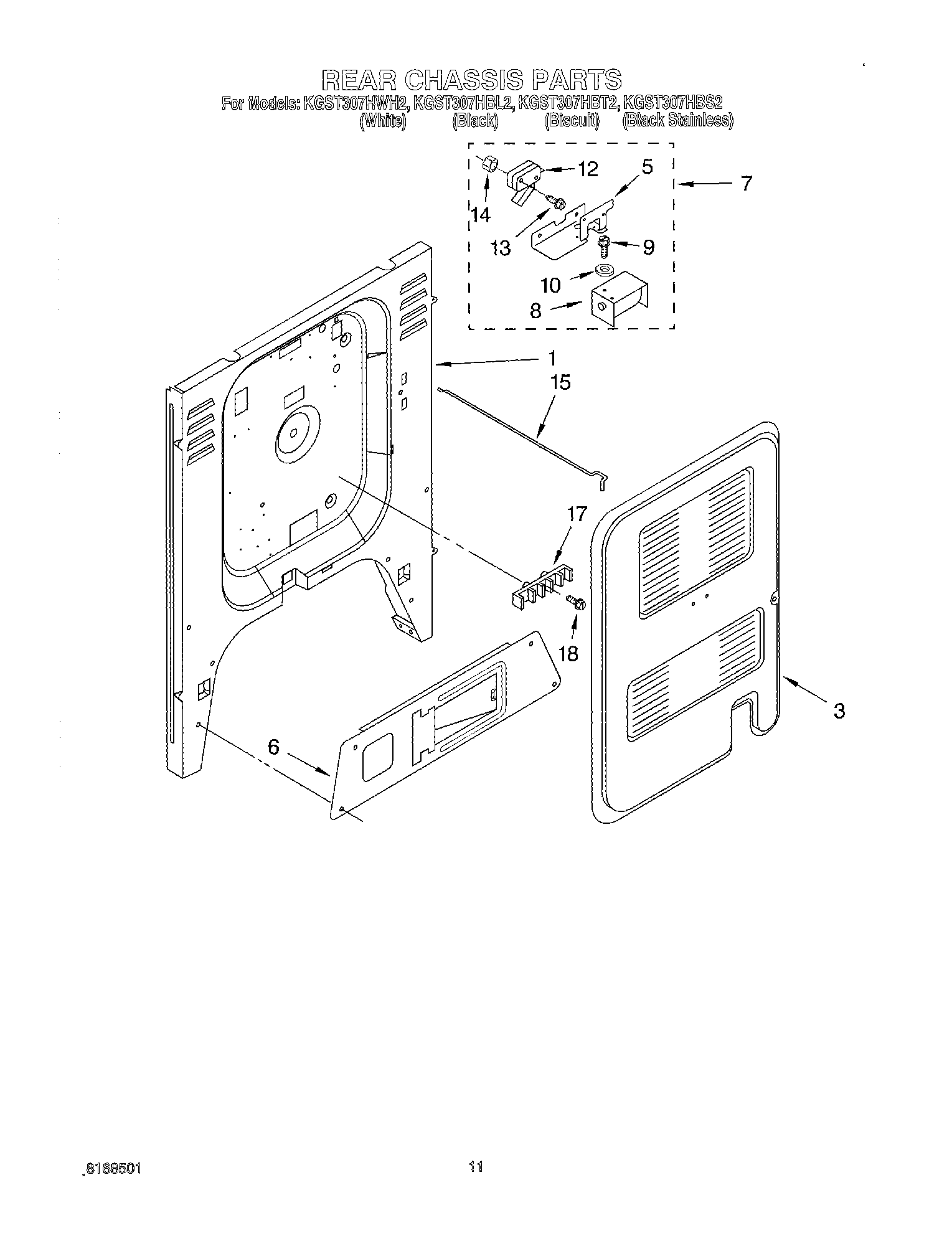

KGST307HBT2 08 – REAR CHASSIS, OPTIONAL

Products

PositionProduct
1Back panel, Chassis
3Panel, Rear Cover
5Bracket, Lock
6Bracket, Regulator Valve
7Oven Lock Assembly
8Solenoid
9Screw (2) 10-32 x 5/16
10Washer (2)
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
18WPL 9781639
18Paint, Spray 13 Oz. (Avocado)
181
18Wire (14 Ga. 200 c Brown)
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18Insulation, Rear
18Screw, (2) 10-16 x 1
18WPL 9753808
18WPL 9751708
18WP9755428 Whirlpool Orifice Spud
18Insulation, Wrap
18WPL 9781055
18WPL 9752769
18WPL 9752717
18WPL 9753374
18WPL 9751868
18Grease
188212471 Whirlpool Oven Paint
18Insulation
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18WPL 799832
18PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
18511873 Whirlpool Refrigerator Paint
184392901 Whirlpool Biscuit Spray Paint
184392899 Whirlpool Biscuit Touch-Up Paint
18350942 Whirlpool Spray Paint
18Golden Harvest (Uncut)
18Golden Harvest
18SCREW
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WA906B Whirlpool Cooktop Glass Scraper
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
183400964 Whirlpool Oven Clip
18WPL 9751745
18WPL 9750376
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
188528351 Whirlpool Clip
18285006 Whirlpool Spray
18WPW10339879 Whirlpool Wire Tie
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18350930 Whirlpool White Spray Paint
