KGST307HBT6 03 – CONTROL PANEL
Written by
in

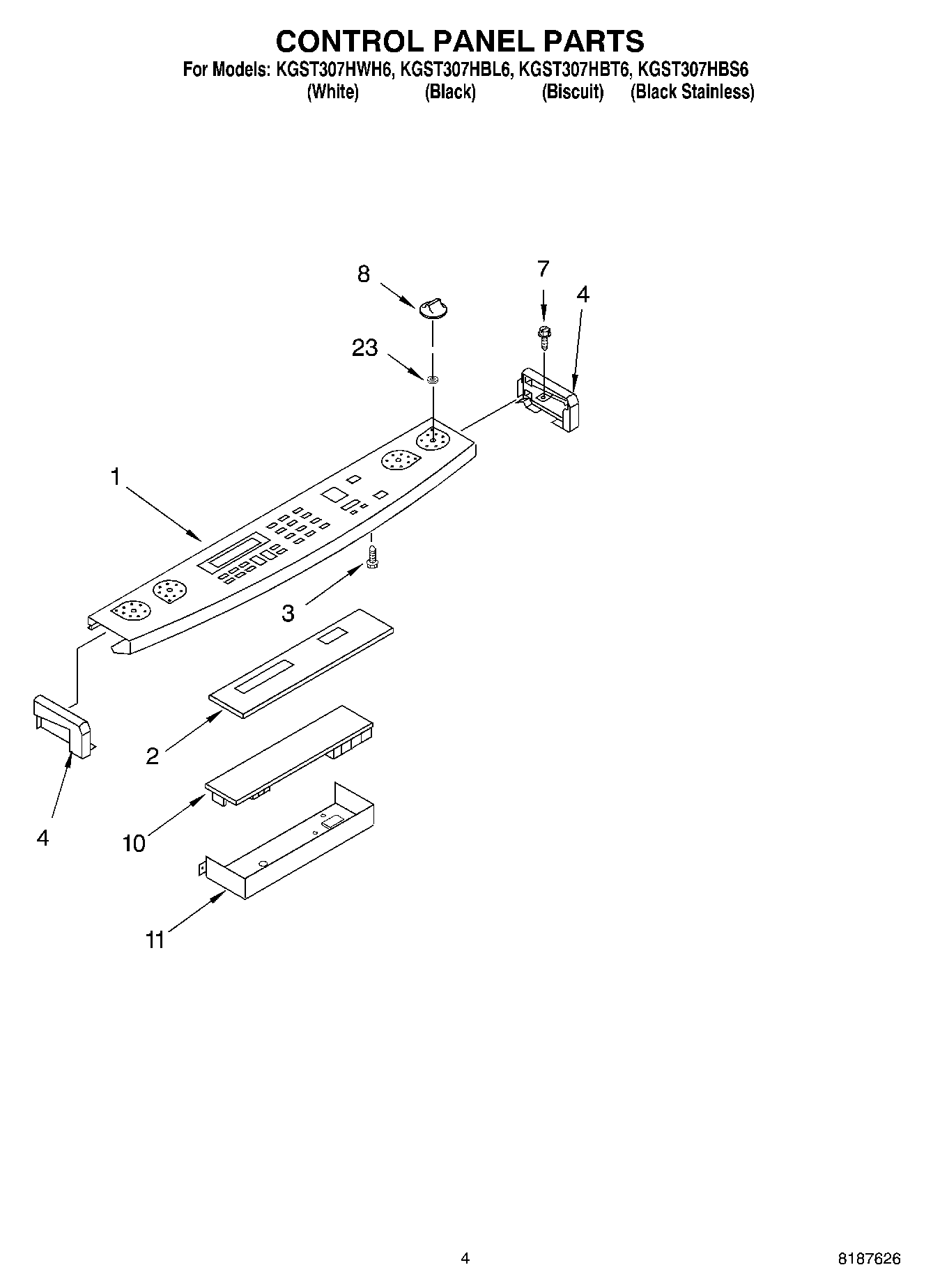

KGST307HBT6 03 – CONTROL PANEL
Products
Position
Product
1
Console, Glass (White)
1
Console, Glass (Biscuit)
1
Console, Glass (Black)
2
Display Board Assembly
3
Screw
4
End Cap (Right Hand) (Biscuit)
4
End Cap (Left Hand) (Biscuit)
4
End Cap (Right Hand) (White)
4
End Cap Right Hand (Black)
4
(End Cap Left Hand) (White)
4
(End Cap Left Hand) (Black)
7
WP4159387 Whirlpool Compactor Screw
8
Knobs, Control (White)
8
Knobs, Control (Biscuit)
8
W10405147 Whirlpool Knob
10
Microcptr
11
Shield, Control Panel
23
WP3188425 Whirlpool Seal Switch
←
