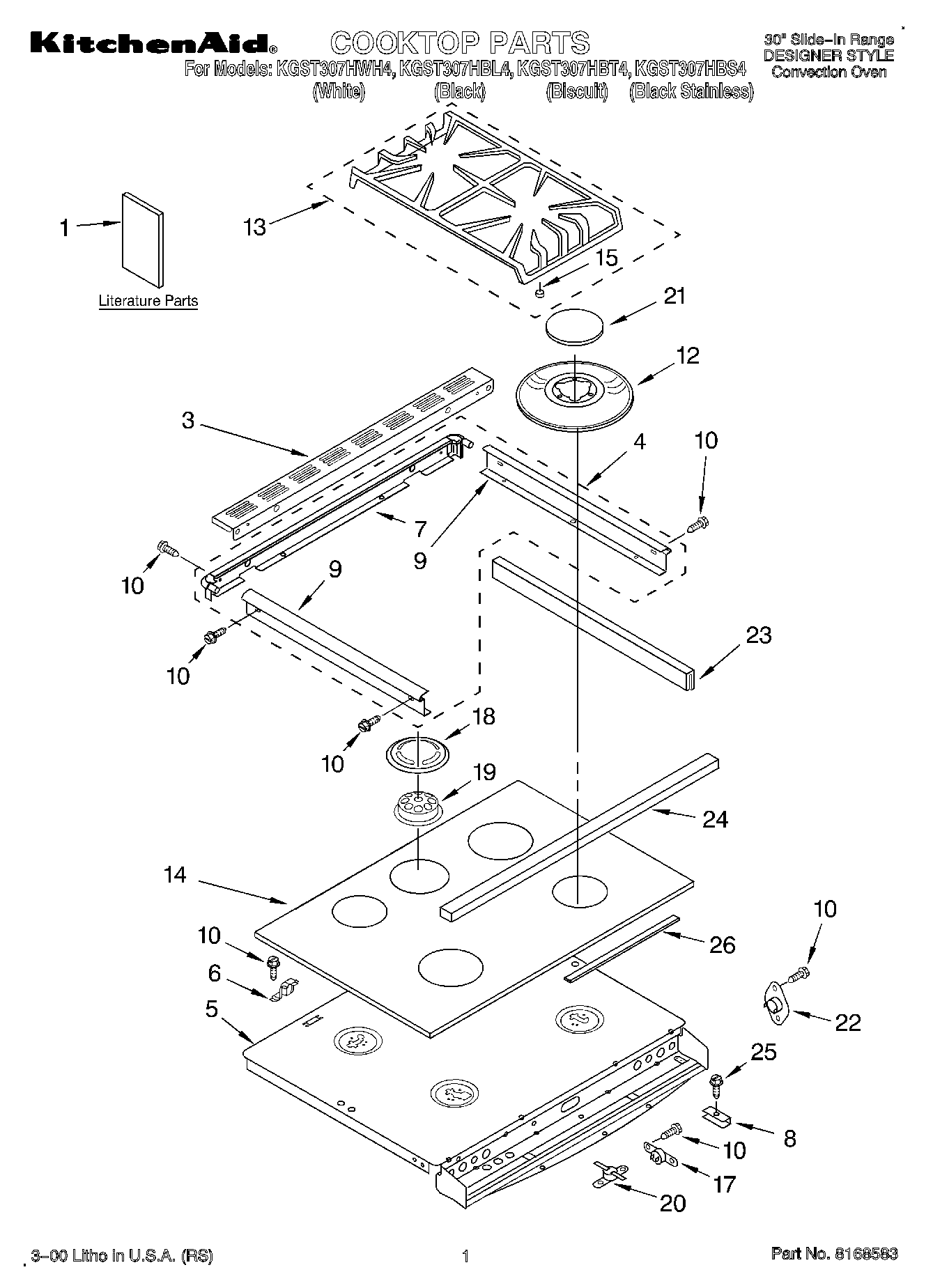

KGST307HWH4 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	WPL LIT9752775
1	Use & Care Guide (English)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Smart & Easy Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Cookbook (T/C Oven))
1	Installation Instructions (English)
1	Literature Parts (LP Installation Instructions)
3	Vent, Rear (White)
3	Vent, Rear (Black)
3	Vent, Rear (Biscuit)
4	Frame, Cooktop (White)
4	Frame, Cooktop (Biscuit)
4	Frame, Cooktop (Black)
5	Support, Burner
6	Bracket, Pivot
6	Washer, Pivot
7	Trim, Rear Frame (Incls. End Caps) (Black)
7	Trim, Rear (Includes End Caps) (White)
7	Trim, Back (Incl. End Caps) (Biscuit)
8	Support Clip (4)
9	Trim, Side Frame (White)
9	Trim, Side (Biscuit)
9	Trim, Side Frame (Black)
10	WP4159387 Whirlpool Compactor Screw
12	Bezel, Burner (Mouse Gray) (6K RF-LR)
12	Bezel, Bu
12	(Bezel, Burner (Black)) (6K RF-LR)
12	Bezel, Burner (Mouse Gray) (14K LF)
12	WPL 9753602GS
12	(Bezel, Burner (Black)) (14K LF)
13	WPL 9753616GB
13	WPL 9753616GS
14	Cooktop, Glass (Black)
14	Cooktop, Glass (Opaque White)
14	Cooktop, Glass (Biscuit)
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
17	Thermostat SPST (205)
18	WPL 9751271GW
18	WPL 9751271GC
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
21	WP3191905 Whirlpool Burner Cap
21	WP3191898 Whirlpool Surface Burner Cap Black
21	WP3191904 Whirlpool Burner Cap
21	Cap, Burner 6K (1) (Gray)
21	WPL 9753939GS
21	WPL 9753939GB
22	WPL 9752006
23	Seal, Rubber
24	Gasket, Cooktop
25	Screw, 10-16 x 1
26	Head, Burner (Pad, Burner Ring)
