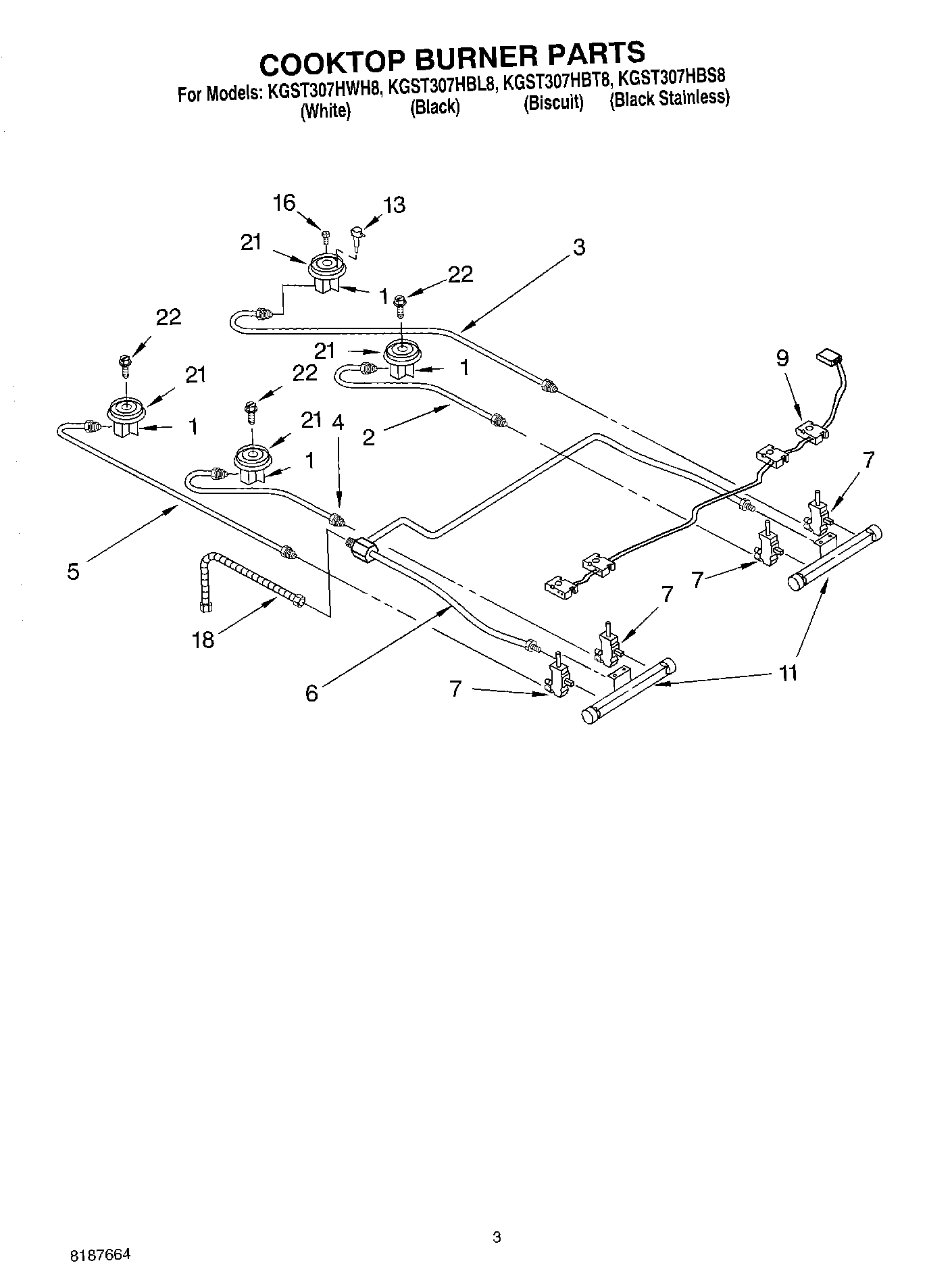

KGST307HWH8 02 – COOKTOP BURNER

Products

Position	Product
1	Burner Base W/Orifices (14K LF)
1	Orifice Holder (Includes Orific & Ignitor) (Auxi)
1	Burner Base w/Orifice (Large (2))
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Tube, Manifold
7	Valve, Burner (14K LF Plain Stem)
7	Valve, Burner Large (2)
7	Valve, Burner Small (2)
7	Bolt (Gas Valve)
9	Spark Switch & Harness Assembly
11	Manifold (Left Hand)
11	Manifold (Right Hand)
13	WP9754215 Whirlpool Surface Igniter
16	WP9753930 Whirlpool Orifice
16	WP9753929 Whirlpool Orifice
16	WP9753928 Whirlpool Orifice Assembly
18	Tubing, Flex
21	WP4455981 Whirlpool Burner Head
21	WP4455979 Whirlpool Range Small Burner Head
21	Burner Head (Turbi)
22	WPW10067840 Whirlpool Screw
