KGST307HWH8 07 – OVEN

Products

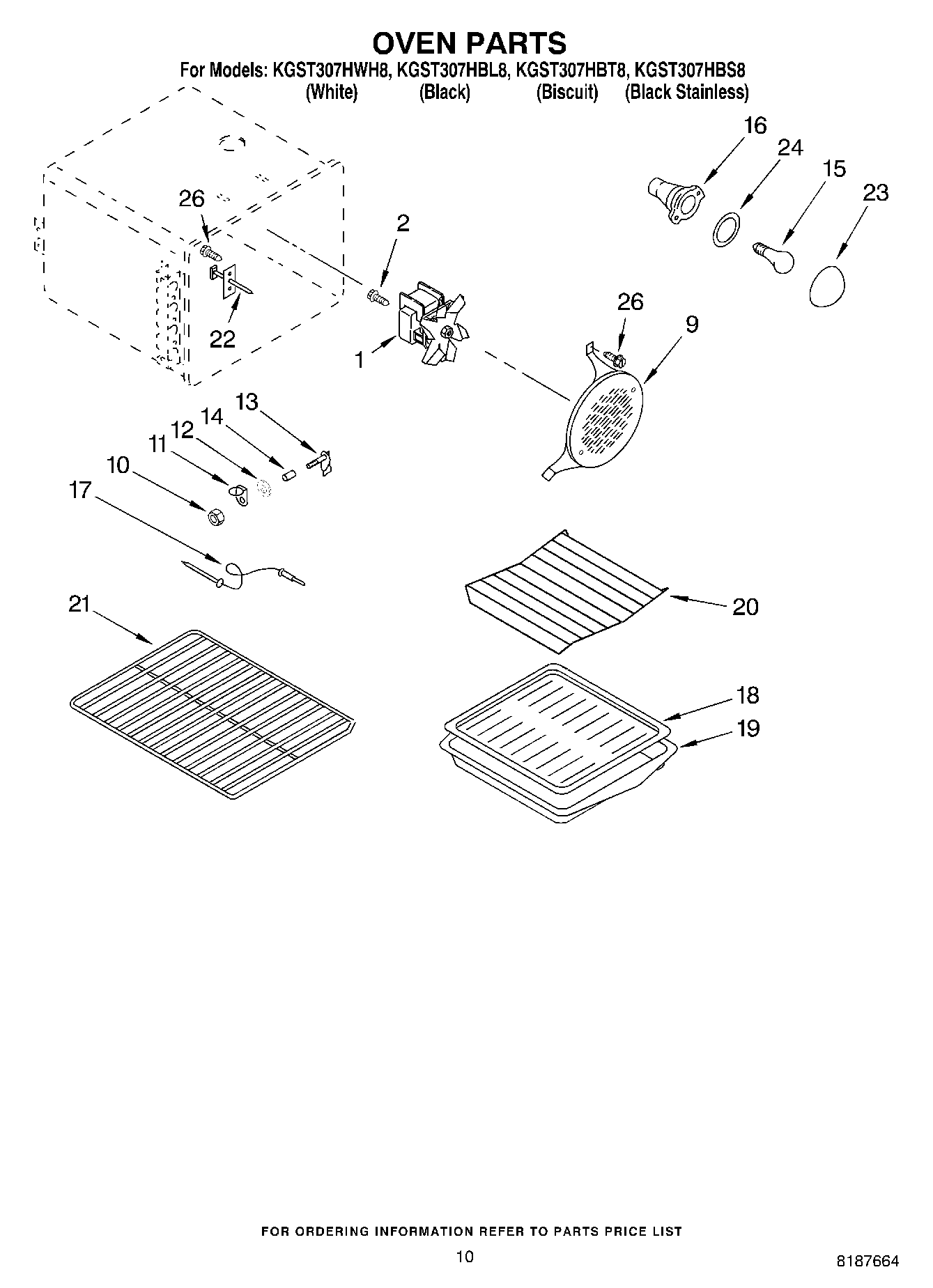

PositionProduct
1Fan Assembly
2Screw (4) 10 x 1/2
9Baffle, Convection
10Lock-Nut, Cvr.Jack
11Jack Cover
12Gasket
13Receptacle, Probe
14Spacer – Tubing
15RANGE ONLY 40W 120V APPL BULB
16W11594027 Whirlpool Range Oven Light Socket
17Probe
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Rack, Roasting
21Rack, Standard (3)
22Sensor
23WP9781049 Whirlpool Light Lens
24WP3184533 Whirlpool Range Light Lens Gasket
26WP4159387 Whirlpool Compactor Screw
