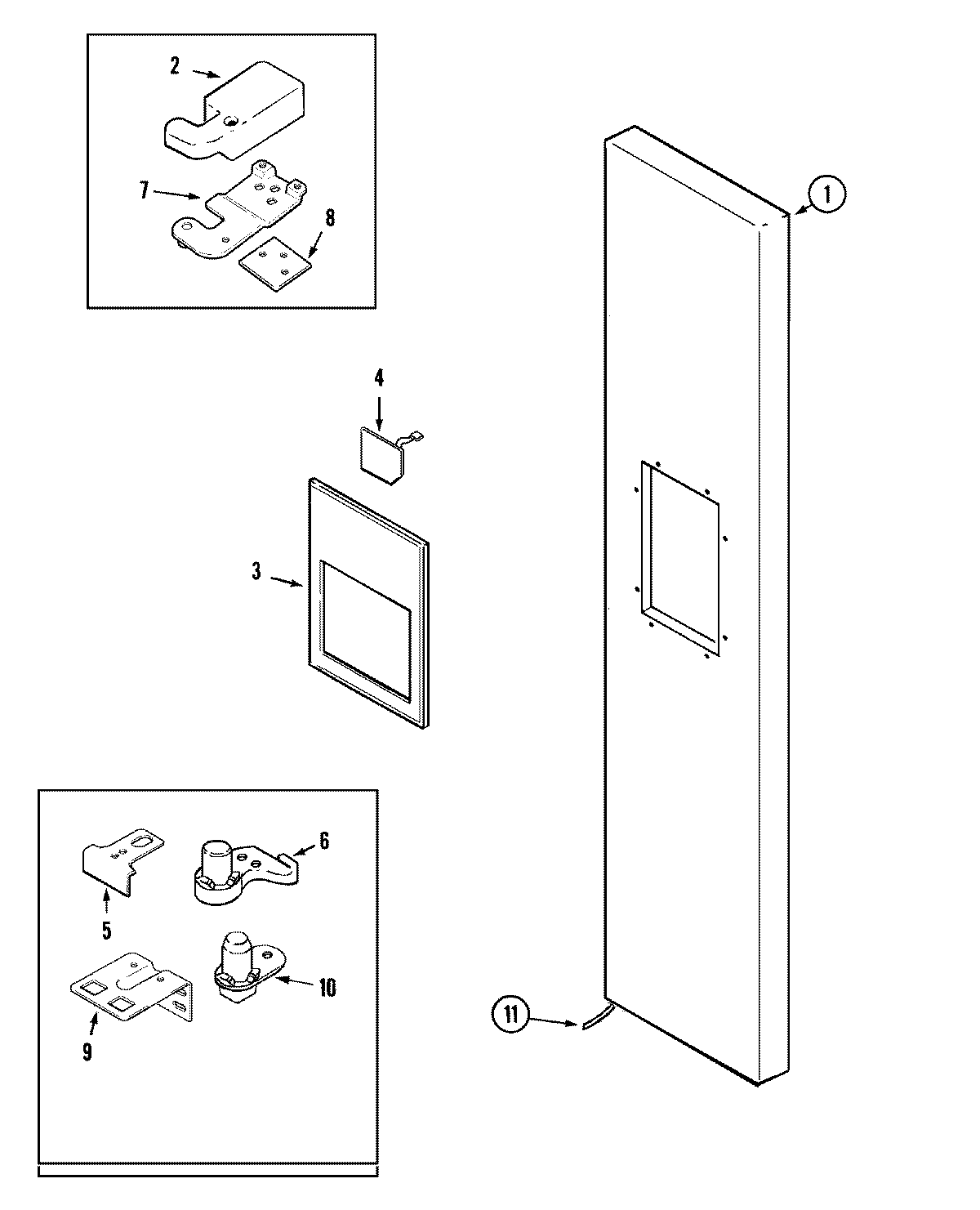

KGU57990KD 07 – FREEZER OUTER DOOR

KGU57990KD 07 – FREEZER OUTER DOOR

Written by

in

KGU57990KD 07 – FREEZER OUTER DOOR

Products

PositionProduct
1MAY 61005807
1MAY 61005769
2WP8281196 Whirlpool Screw
2MAY 61004722
3MAY 61006043
3MAY 61005109
3415013-35 Whirlpool Refrigerator Screw
4MAY 61003421
4MAY 61005861
4MAY 61003422
5MAY 61004120
6MAY 61004178
7MAY 61004194
7WP3-24838-048 Whirlpool Refrigerator Screw
8MAY 61001922
9MAY 61004713
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11WP2300868 Whirlpool Refrigerator Fitting
11MAY 61004569
12W10856122 Whirlpool Refrigerator Screw
12MAY 61005726
