KGU66990 03 – CONTROLS
Written by
in

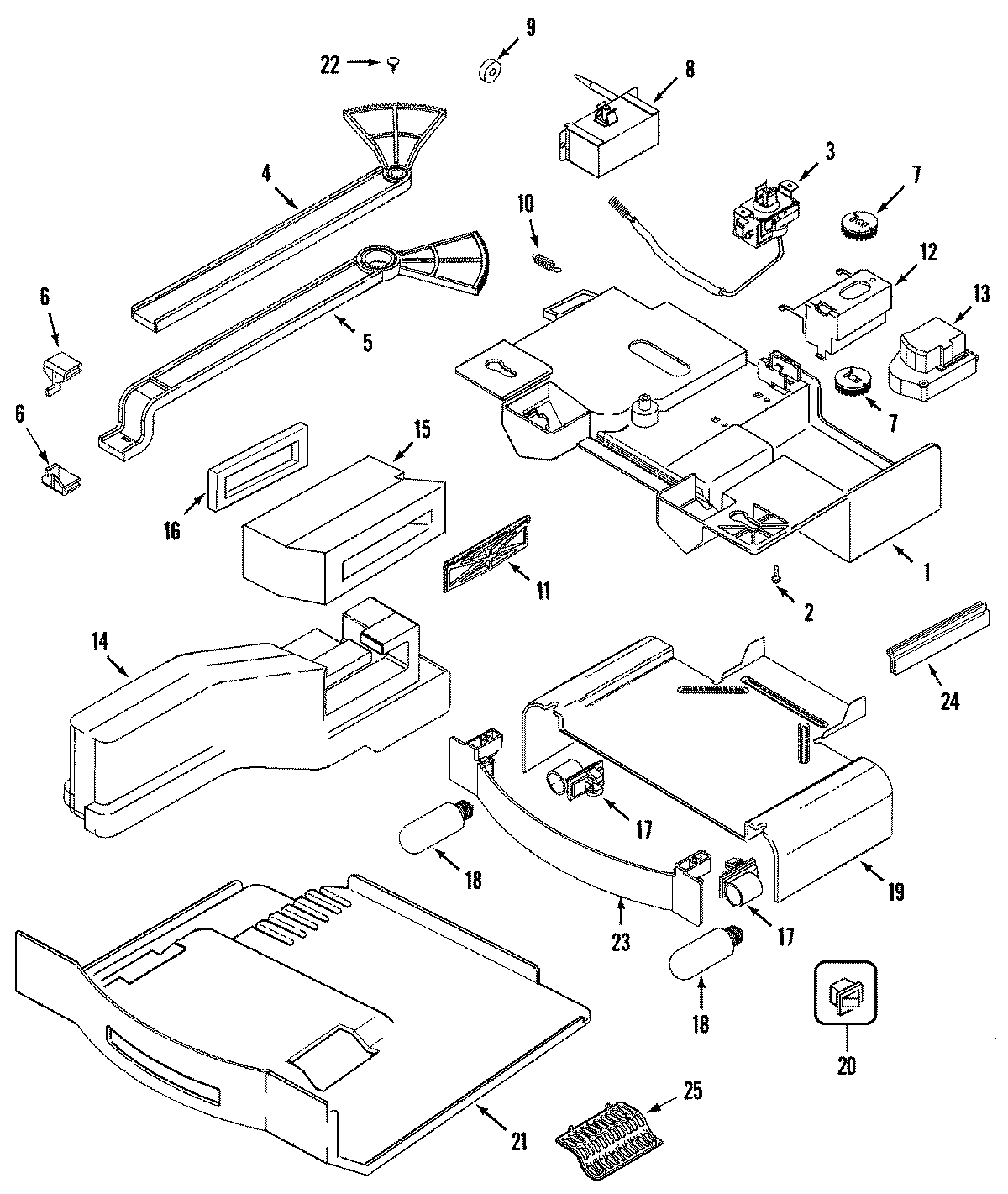

KGU66990 03 – CONTROLS
Products
Position
Product
1
MAY 61005618
1
MAY 61005043
1
MAY 61005971
1
MAY 61003228
2
WPW10348409 Whirlpool Screw
3
SCREW
3
MAY 61004268
4
MAY 61003287
5
MAY 61003293
6
MAY 61004591
7
MAY 61003305
8
MAY 61003359
8
MAY 61005044
9
MAY 61003358
10
MAY 61003141
11
MAY 61003235
12
MAY 61003315
13
WP61003601 Whirlpool Refrigerator Defrost Timer
13
MAY 405007-1
13
MAY 61005951
14
MAY 61005972
14
MAY 61003229
14
MAY 61003230
15
MAY 61005563
15
MAY 61005075
15
MAY 61006038
16
MAY 61003819
17
MAY 70458-1
17
MAY 61003727
17
MAY 61005805
18
MAY 61003355
18
W11618980 Whirlpool Light Bulb
18
MAY 61003354
18
MAY 61005975
18
MAY 61005974
19
MAY 61005976
19
MAY 61003238
20
MAY 61006157
20
W11384469 Whirlpool Door Switch
21
MAY 61004404
22
MAY 61003316
23
MAY 400031-1
23
MAY 61004405
24
MAY 61003891
25
MAY 61004590
26
MAY 61006042
26
MAY 61004247
27
MAY 61003821
27
SEE NOTE GROUND WIRE, GREEN
←
