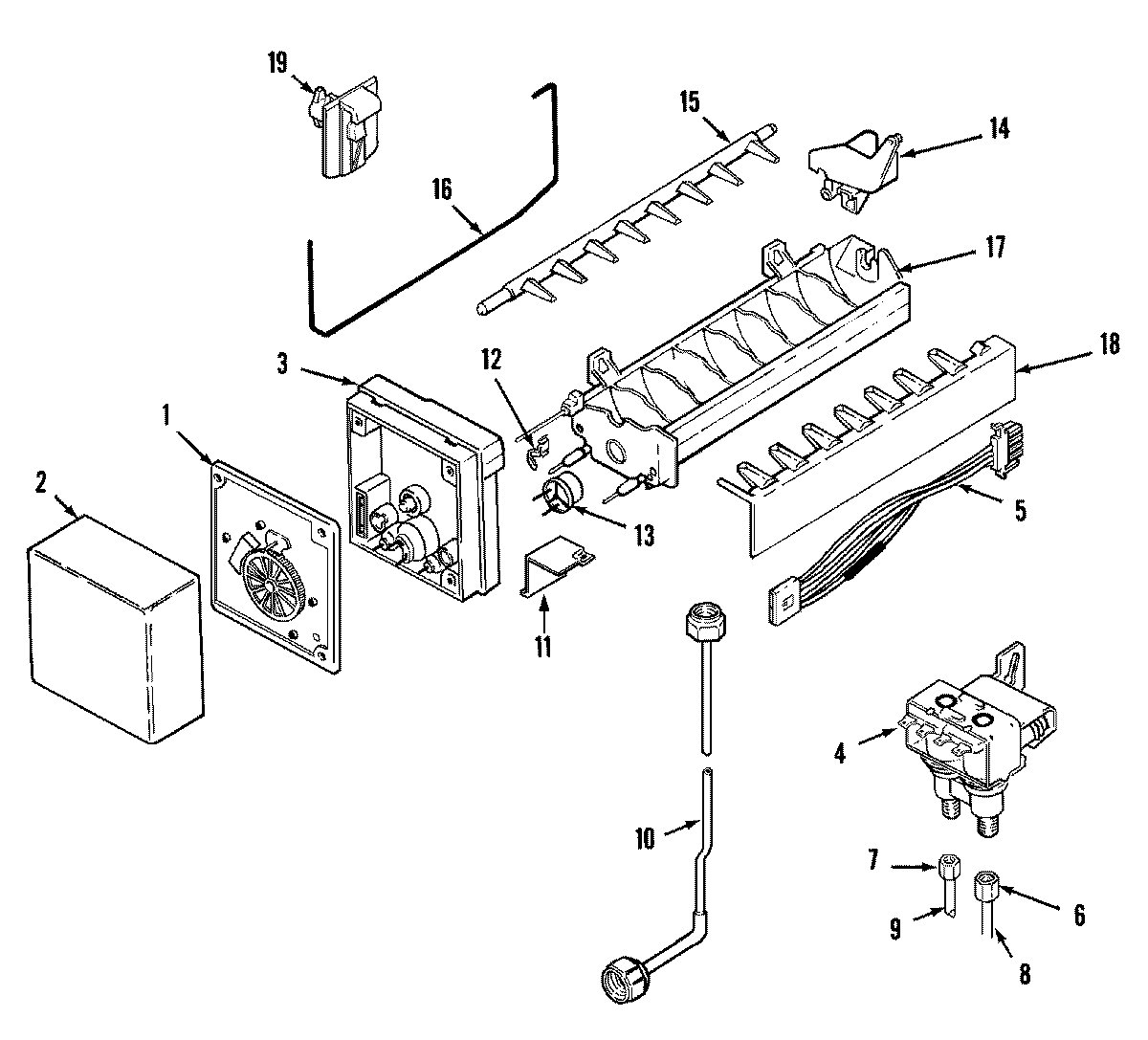

KGU66990 11 – ICE MAKER

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
1	MAY 61001014
2	MAY 61004608
2	MAY 61001982
3	WP2195914 Whirlpool Refrigerator Ice Maker Housing
3	SCREW
4	MAY 61004413
4	MAY 61006228
4	MAY 61002819
5	MAY 61005110
5	MAY 61005872
6	MAY 69583-2
7	WP627018 Whirlpool Refrigerator Nut
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 67579-26
10	MAY 61001858
11	MAY 95108-1
11	BRACKET, MODULE & HEATER
12	WP2315522 Whirlpool Refrigerator Clip
13	MAY 95093-1
13	WP627985 Whirlpool Icemaker Cycling Thermostat
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 61005657
17	MAY Y06100047
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	WP61005028 Whirlpool Refrigerator Support
