KGU6945BS 08 – FRESH FOOD OUTER DOOR

KGU6945BS 08 – FRESH FOOD OUTER DOOR

Written by

in

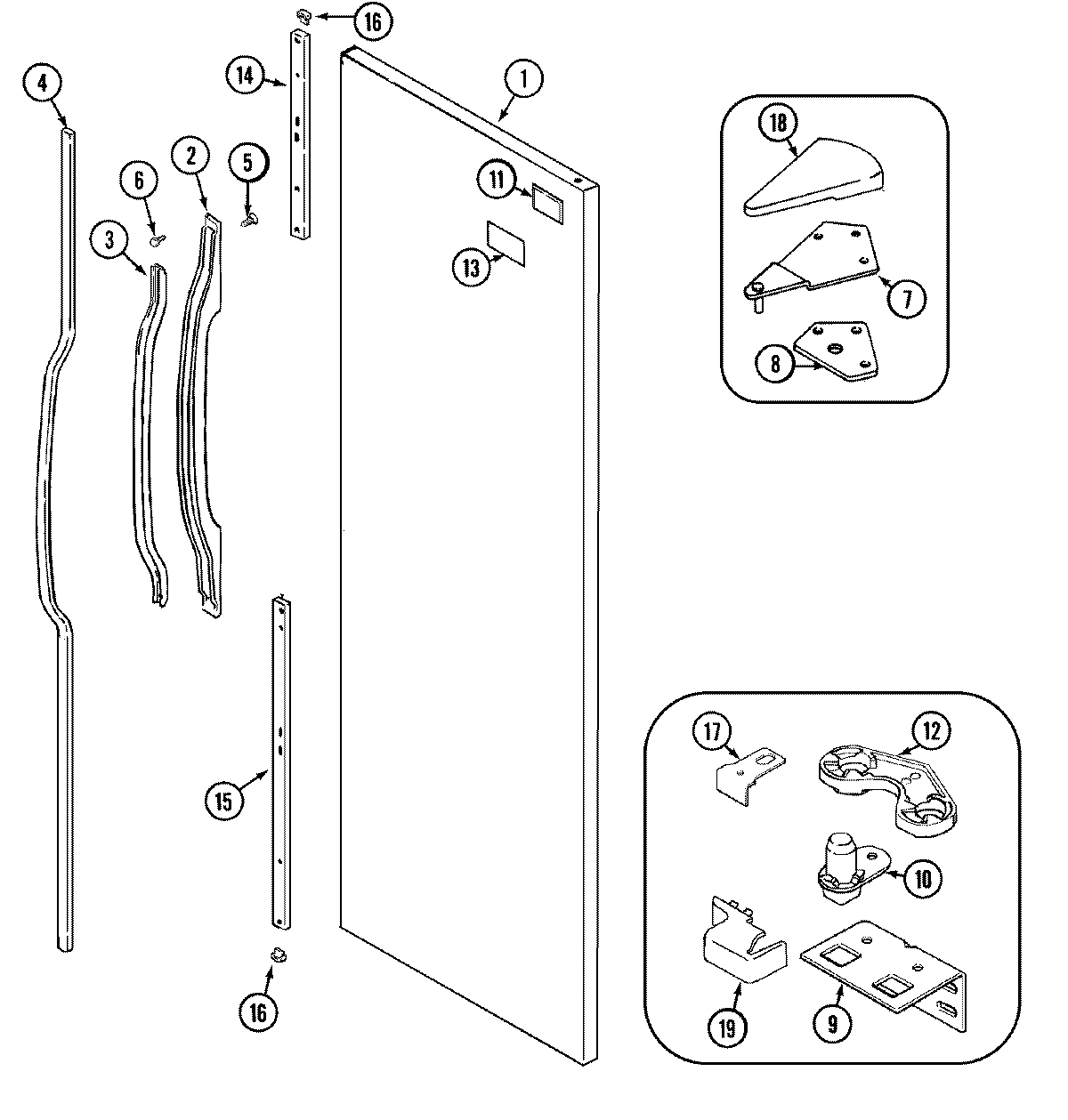

KGU6945BS 08 – FRESH FOOD OUTER DOOR

Products

PositionProduct
1MAY 61003495
2MAY 61003200
3MAY 61003168
4MAY 61003150
5MAY 61003172
7MAY 65275-86
7MAY 61001971
8MAY 61001922
9MAY 61001918
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11BEZEL, NAMEPLATE (WHT)
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61001482
14MAY 61003433
15MAY 61003434
16MAY 61003435
17W10856122 Whirlpool Refrigerator Screw
17MAY 61003471
18MAY 61004640
19MAY 61003220
