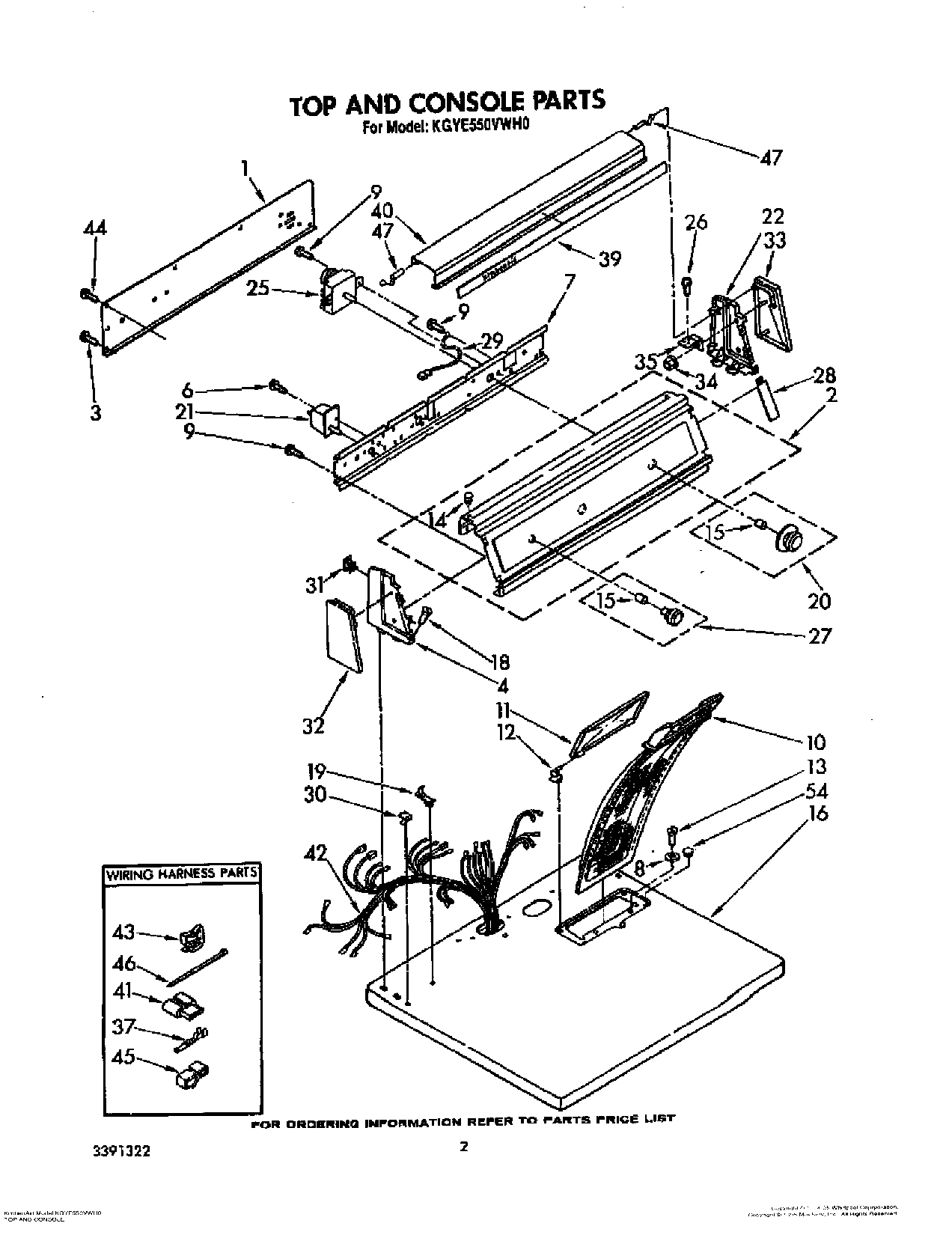

KGYE550VPL0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3391026
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Guide, Dryer
Label, Operating Instructions
WPL LIT3391322
WPL LIT3387332
WPL LIT3389703
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Leveler (Thinner)
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Almond (Uncut)
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
1Panel, Rear Console
2Panel, Control
3WP693995 Whirlpool Screw
4End Cap (L.H.)
6WP90767 Whirlpool Screw
7Bracket, Control
8Washer
9WP3390631 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Plug, Latch (3)
15WP688805 Whirlpool Spring Clip
16Top (Toast)
16Top (Platinum)
16Top (Harvest Wheat)
16Top (Almond)
16Top (White)
18WPL 64211
19Nut, Push-In (2)
20Knob, Timer
21Switch, Push-To-Start
22Cap, End (R.H.)
25Timer, 60Hz.
26WPL 310629
27Knob, Push To Start
28Spacer, Console (2)
29Wire, Ground
30Stop, Push-In Top
31WP689559 Whirlpool Nut
32Trim, End Cap (L.H.)
33Trim, End Cap (R.H.)
34Nut, No.10 Thread
35Bracket, End Cap (2)
37WP94614 Whirlpool Terminal
39Insert, Lamp Cover
40Insert, Lamp Cover
41Receptacle, 3-Way Terminal (Use W/94614)
42Harness, Gas
43Clip, Harness (Rear Bulkhead Area)
44WP489069 Whirlpool Compactor Screw
45Clip, Retainer
46WPW10339879 Whirlpool Wire Tie
47Hinge, Lamp Cover
54Plug, Hole
