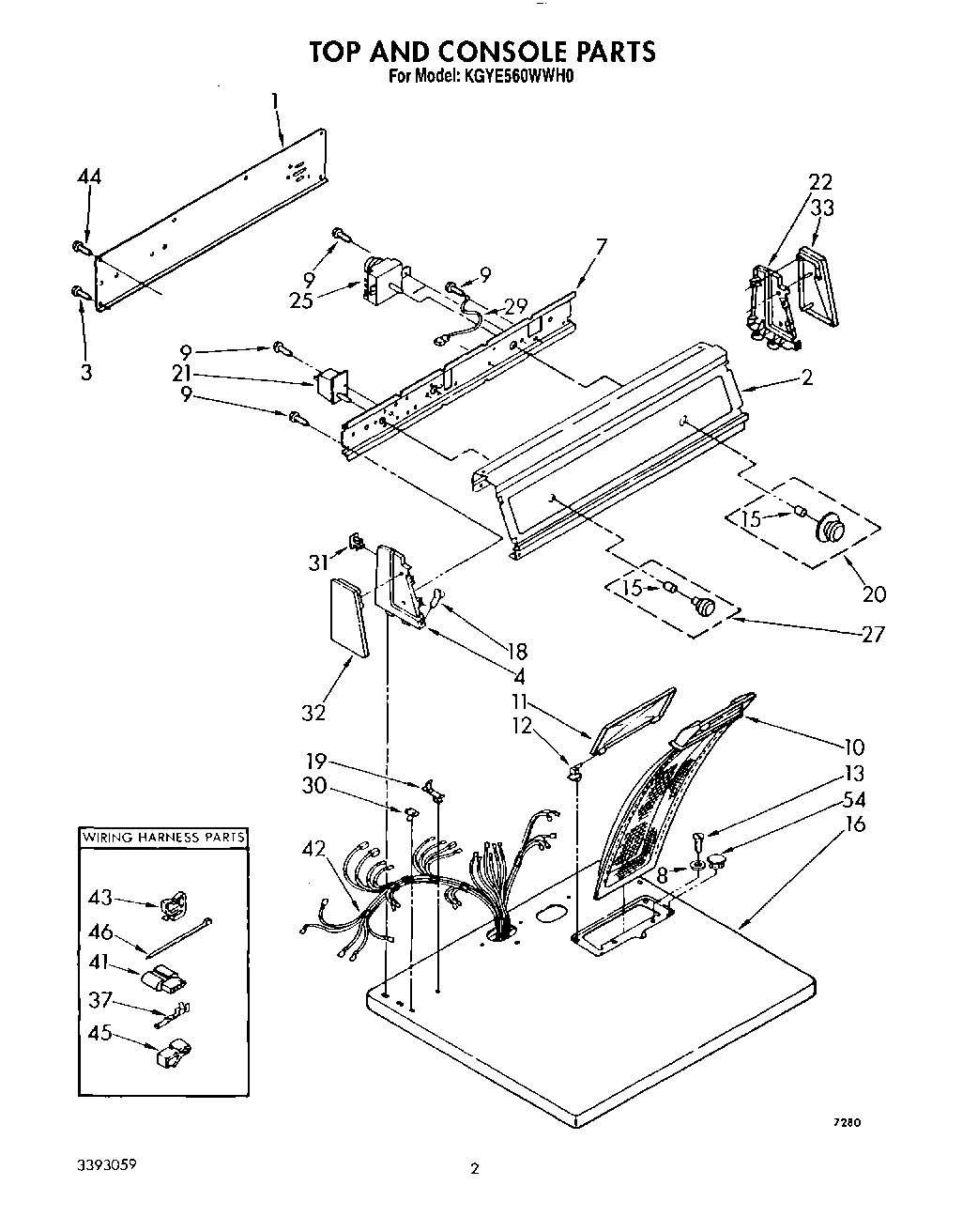

KGYE560WAL0 02 – TOP AND CONSOLE, LIT/OPTIONAL

KGYE560WAL0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

KGYE560WAL0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3391026
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL LIT3392976
	Guide, Dryer
	Label, Operating Instructions
	WPL LIT3393059
	WPL LIT3393139
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
7	Bracket, Control
8	Washer
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP688805 Whirlpool Spring Clip
16	Top (Harvest Wheat)
16	Top (Toast)
16	Top (Almond)
16	Top (White)
16	Top (Platinum)
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Switch, Push-To-Start
22	Cap, End (R.H.)
25	Timer, 60Hz.
27	Knob, Push To Start
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, Endcap (L.H.)
33	Trim, Endcap (R.H.)
37	WP94614 Whirlpool Terminal
41	Receptacle, 3-Way Terminal (Use W/94614)
42	Harness, Gas
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
54	Plug, Hole
