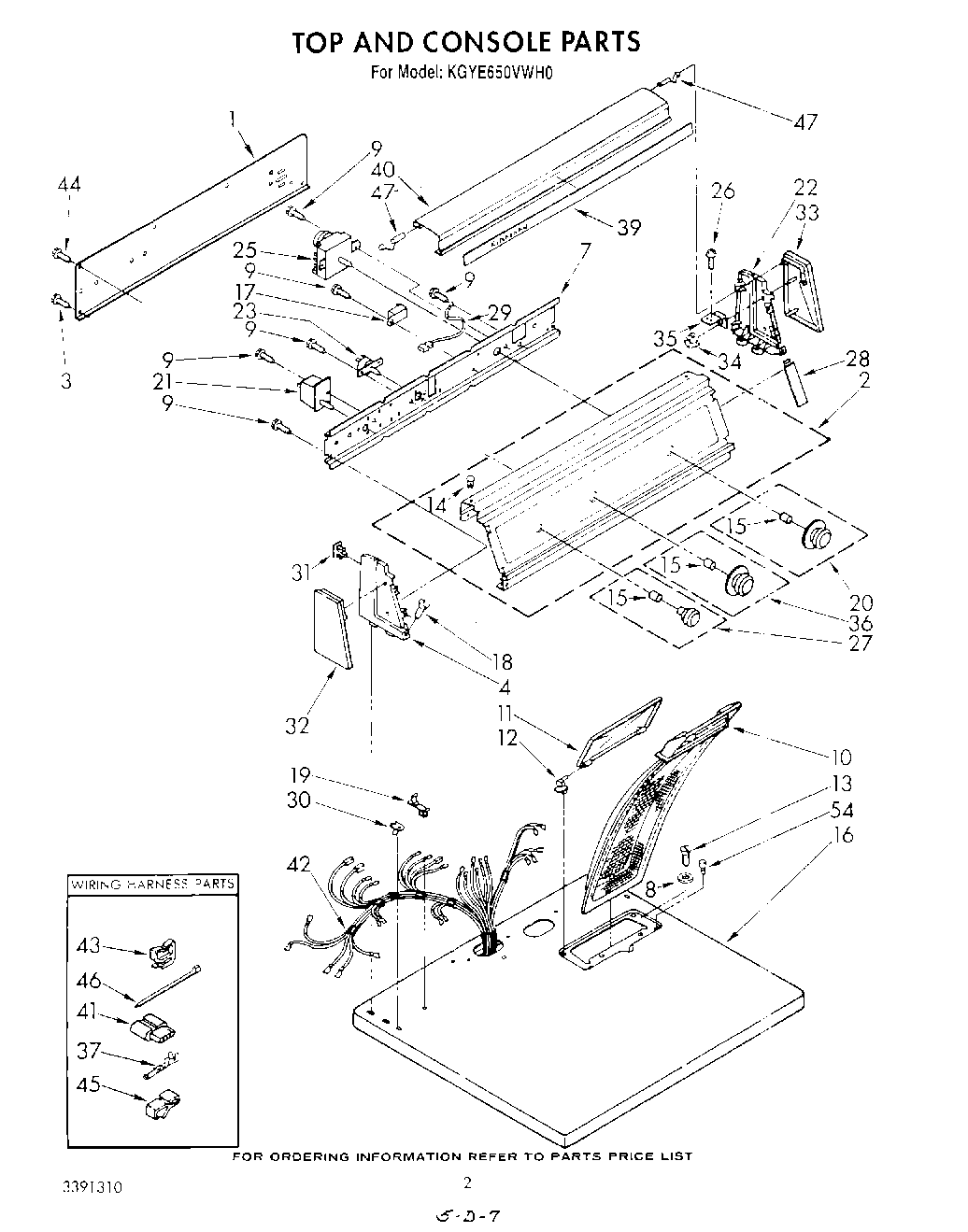

KGYE650VTO0 02 – TOP CONSOLE , LITERATURE AND OPTIONAL

KGYE650VTO0 02 – TOP CONSOLE , LITERATURE AND OPTIONAL

Written by

in

KGYE650VTO0 02 – TOP CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
WPL ARI154651A
Golden Harvest
Golden Harvest (Uncut)
Label, Operating Instructions
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT3387333
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
350956 Whirlpool Spray Assembly
Almond (Uncut)
Guide, Dryer
WPL LIT3390031
350938 Whirlpool Spray Gun
WPL LIT3391310
WPL LIT3389703
1Panel, Rear Console
2Panel, Control
3WP693995 Whirlpool Screw
4End Cap (L.H.)
7Bracket, Control
8Washer
9WP3390631 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Plug, Latch (3)
15WP688805 Whirlpool Spring Clip
16Top (Platinum)
16Top (Almond)
16Top (White)
16Top (Toast)
16Top (Harvest Wheat)
17WP694419 Whirlpool Buzzer Adjuster
18WPL 64211
19Nut, Push-In (2)
20Knob, Timer
21Relay, Push-To-Start
22Cap, End (R.H.)
23Switch, Temperature 3-Position
25Timer Assembly, 60 Hz.
26WPL 310629
27Knob, Push To Start
28Spacer, Console (2)
29Wire, Ground
30Stop, Push-In Top
31WP689559 Whirlpool Nut
32Trim, Endcap (L.H.)
33Trim, Endcap (R.H.)
34Nut, No.10 Thread
35Bracket, End Cap (2)
36Knob, Temperature Control
37WP94614 Whirlpool Terminal
39Insert, Lamp Cover
40Cover, Light (Includes Illus. No.41)
41Receptacle, 3-Way Terminal (Use W/94614)
42Harness, Gas
43Clip, Harness (Rear Bulkhead Area)
44WP489069 Whirlpool Compactor Screw
45Clip, Retainer
46WPW10339879 Whirlpool Wire Tie
47Hinge, Lamp Cover
54Bumper, Lint Lid
