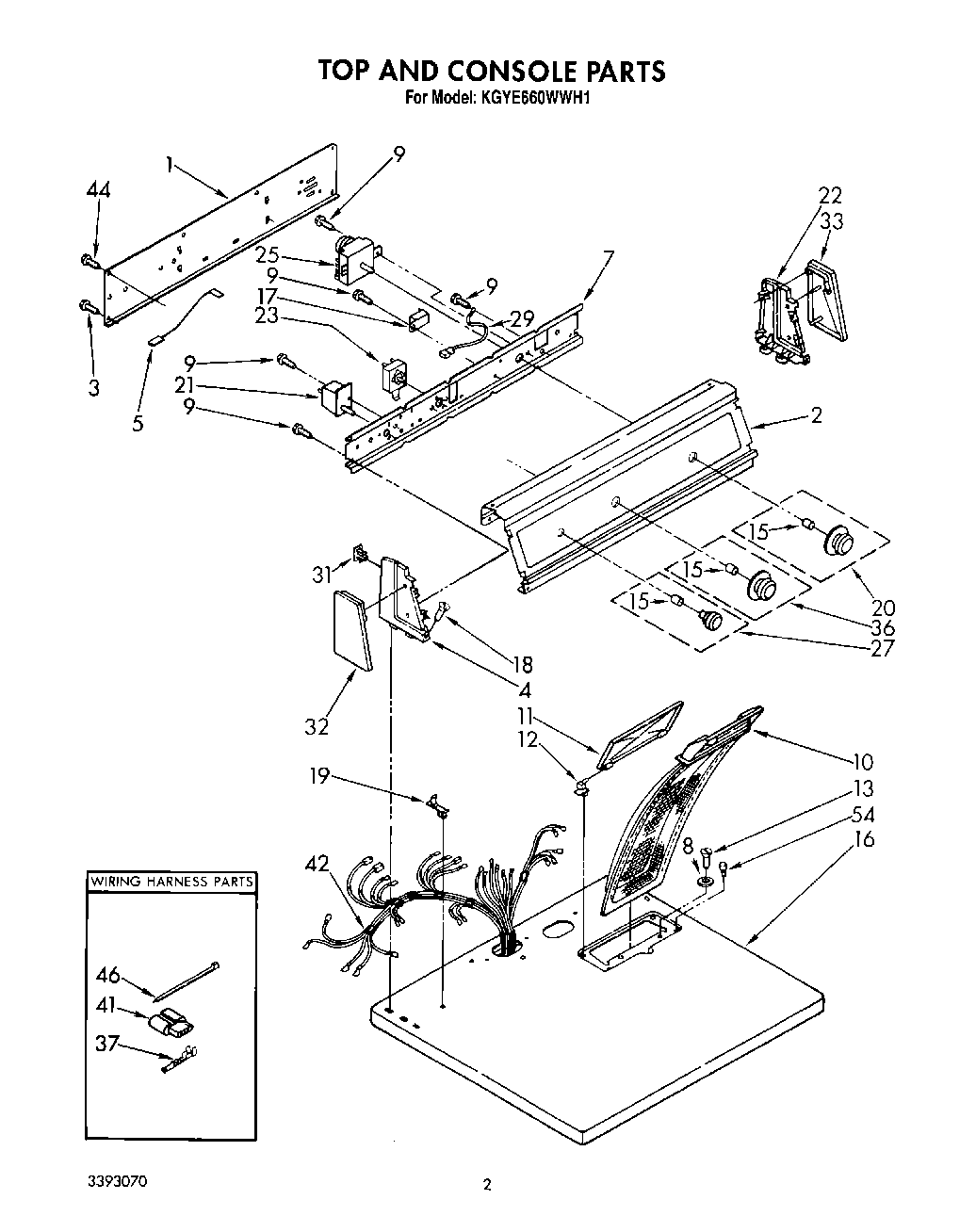

KGYE660WAL1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Enamal, Toast (1 Qt. Uncut)
	Golden Harvest (Uncut)
	Guide, Dryer
	Label, Operating Instructions
	List, Service Parts
	WPL LIT3392977
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	Label, Wiring Diagram
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	Platinum (Uncut)
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	Wire, Jumper (Blue)
5	Wire, Jumper (Violet)
7	Bracket, Control
8	Washer
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP688805 Whirlpool Spring Clip
16	Top (White)
16	Top (Almond)
17	WP694419 Whirlpool Buzzer Adjuster
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	Switch, Rotary (Temperature Selector)
25	WP3394762 Whirlpool Timer
27	Knob, Push To Start
29	Wire, Ground
31	WP689559 Whirlpool Nut
32	Trim, Endcap (L.H.)
33	Trim, Endcap (R.H.)
36	Knob, Adjustable Buzzer
37	WP94614 Whirlpool Terminal
41	Receptacle, 3-Way Terminal (Use W/94614)
42	Harness, Wiring
44	WP489069 Whirlpool Compactor Screw
46	WPW10339879 Whirlpool Wire Tie
54	Bumper, Lint Lid
