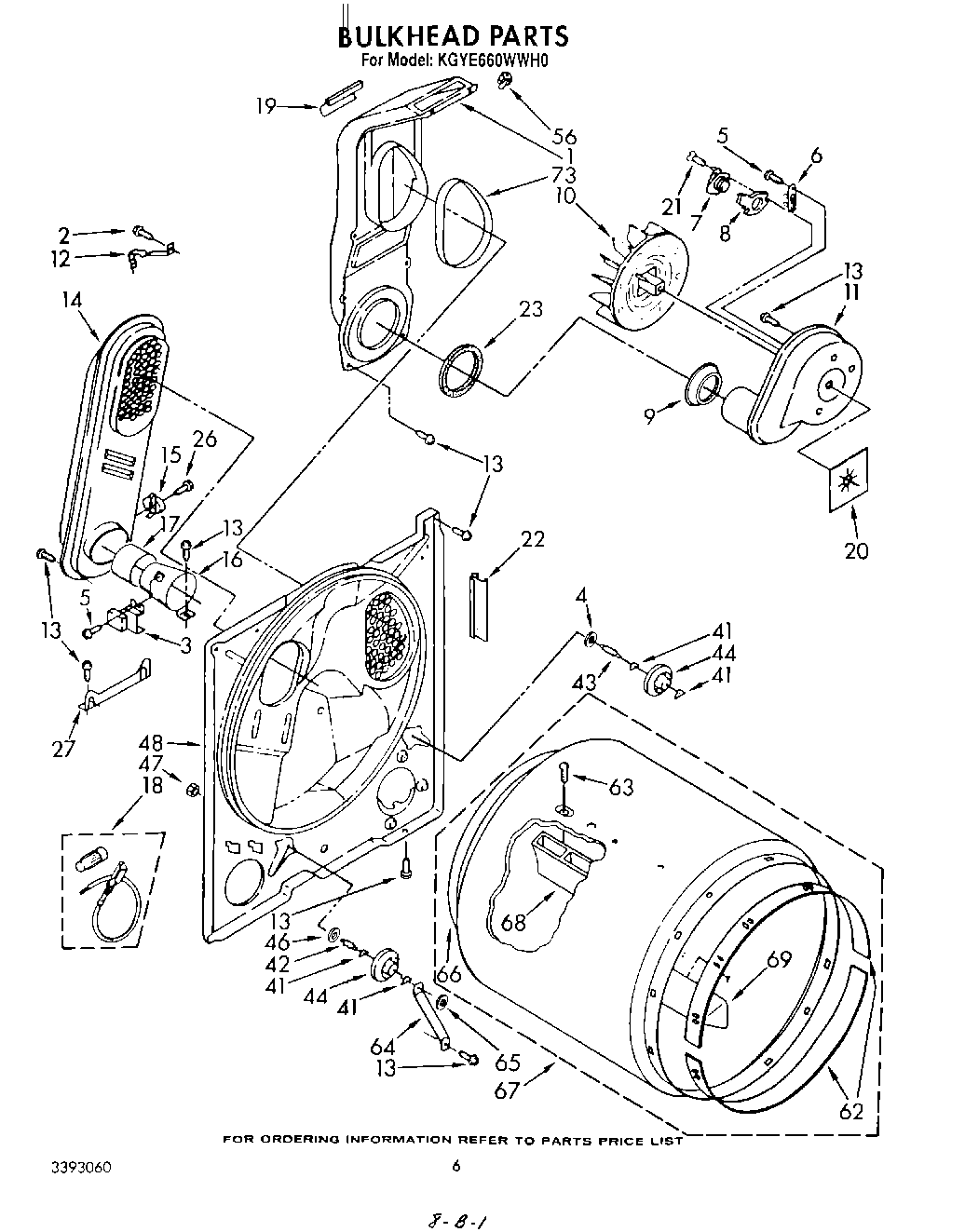

KGYE660WTO0 04 – BULKHEAD

KGYE660WTO0 04 – BULKHEAD

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
3WP338906 Whirlpool Dryer Gas Sensor
4WP3388703 Whirlpool Washer
5WP965173 Whirlpool Dishwasher Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP694674 Whirlpool Cycling Thermostat
8Heater, Thermostat
9W11233063 Whirlpool Shield Assembly
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat, 205 F (96 C)
16279900 Whirlpool Box O/S1
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
20Seal, Blower
21WP488729 Whirlpool Refrigerator Door Screw
22686889 Whirlpool Pad
23W11415783 Whirlpool Seal
26WP90767 Whirlpool Screw
27Support, Heater Box
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44WPW10314173 Whirlpool Dryer Drum Support Wheel
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48W11178667 Whirlpool Bulkhead Assembly
5698460 Whirlpool Nut
62279441 Whirlpool Front Bearing Ring
63Screw, 11-16 x 7/8
64W11684613 Whirlpool Bracket
65WP90296 Whirlpool Clip
66279408 Whirlpool Dryer Rear Drum Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69WP3403636 Whirlpool Drum Baffle
73SEAL
