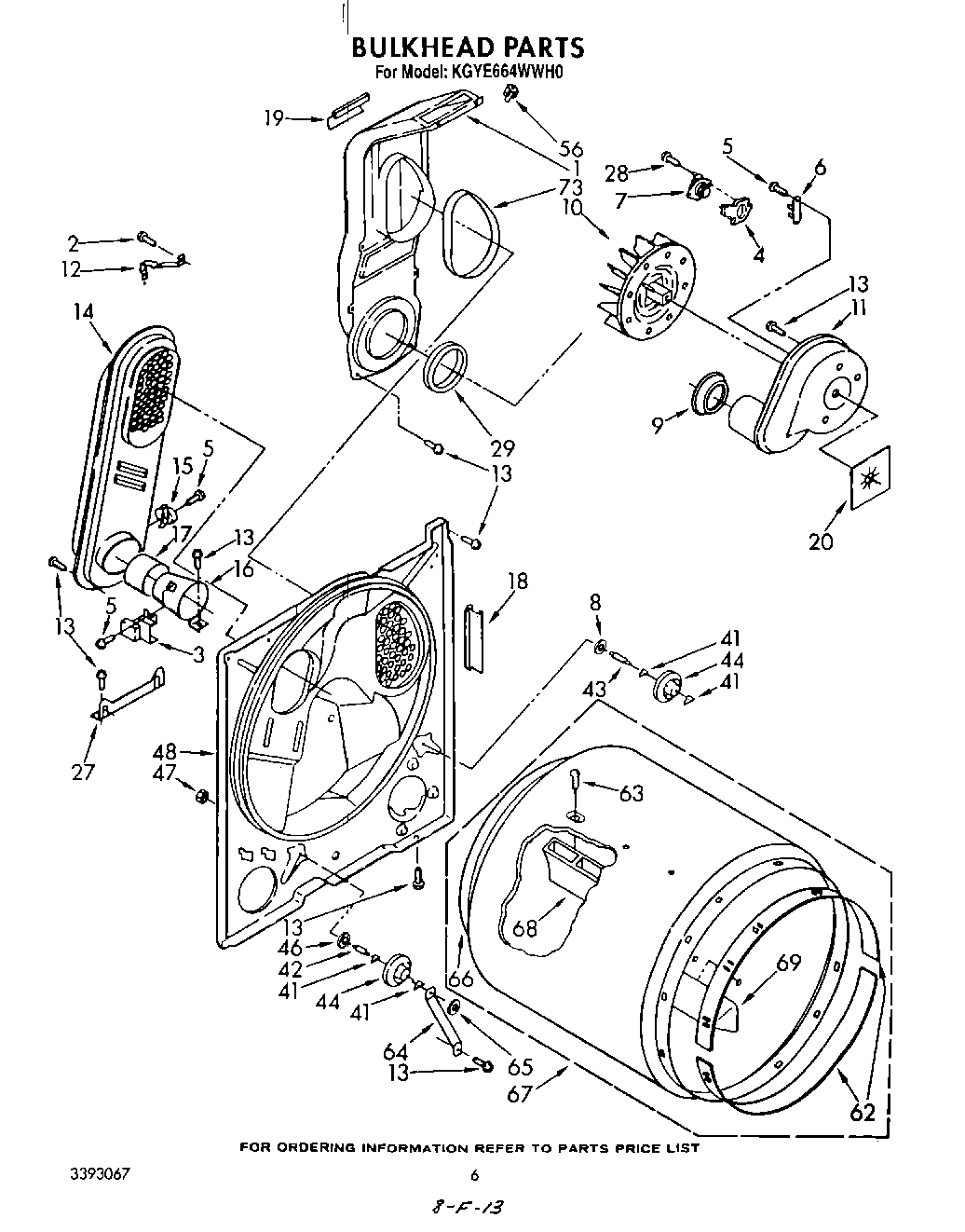

KGYE664WWH0 04 – BULKHEAD

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
3	WP338906 Whirlpool Dryer Gas Sensor
4	Heater, Thermostat
5	WP965173 Whirlpool Dishwasher Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP694674 Whirlpool Cycling Thermostat
8	WP3388703 Whirlpool Washer
9	W11233063 Whirlpool Shield Assembly
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
15	Thermostat, 205 F (96 C)
16	279900 Whirlpool Box O/S1
18	686889 Whirlpool Pad
19	686770 Whirlpool Support Bracket
20	Seal, Blower
27	Support, Heater Box
28	WP488729 Whirlpool Refrigerator Door Screw
29	W11415783 Whirlpool Seal
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	WPW10314173 Whirlpool Dryer Drum Support Wheel
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	W11178667 Whirlpool Bulkhead Assembly
56	98460 Whirlpool Nut
62	279441 Whirlpool Front Bearing Ring
63	Screw, 11-16 x 7/8
64	W11684613 Whirlpool Bracket
65	WP90296 Whirlpool Clip
66	279408 Whirlpool Dryer Rear Drum Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	WP3403636 Whirlpool Drum Baffle
73	SEAL
