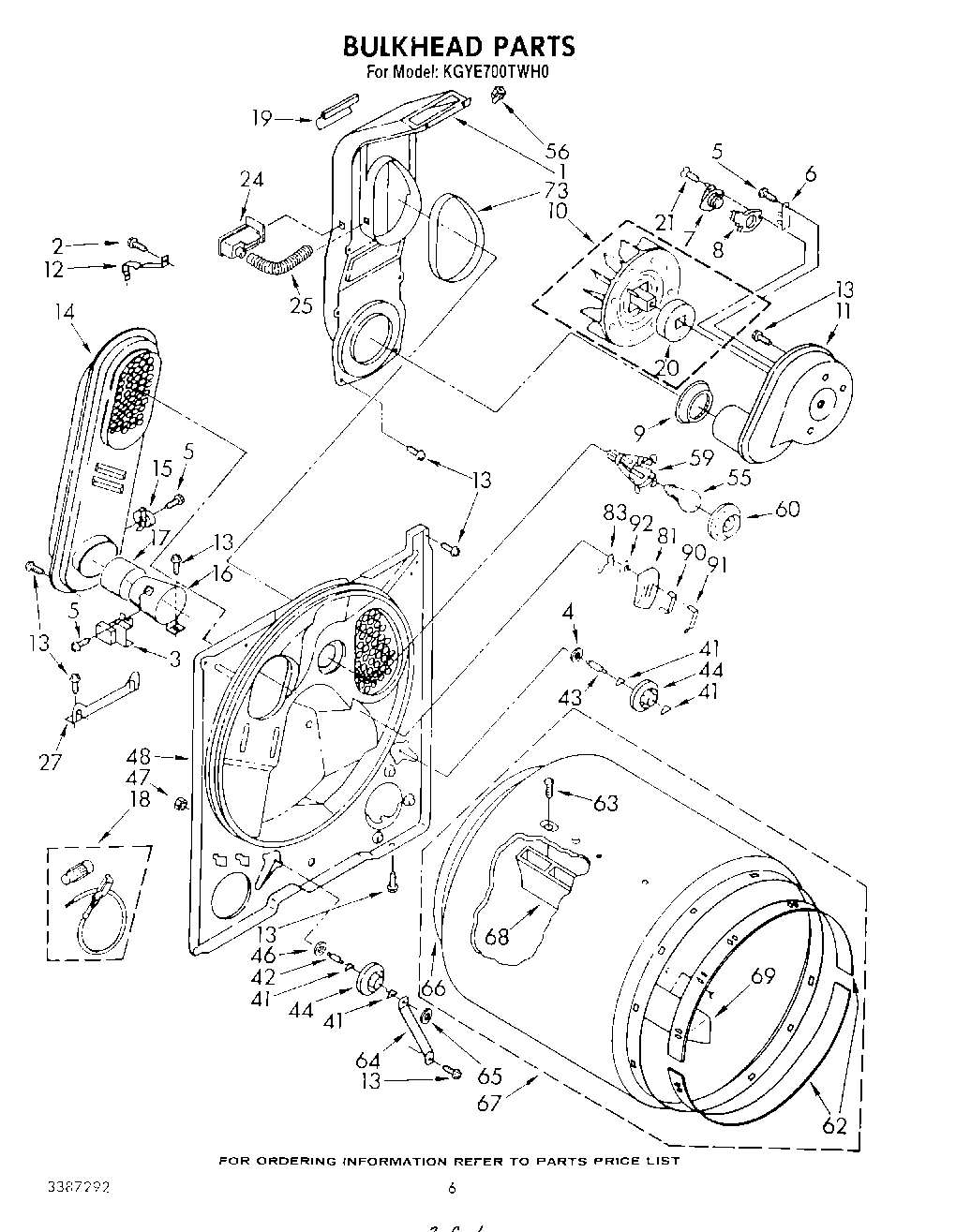

KGYE700TWH0 04 – BULKHEAD

KGYE700TWH0 04 – BULKHEAD

Products

PositionProduct
1Lint Chute Assembly
3WP338906 Whirlpool Dryer Gas Sensor
4WP3388703 Whirlpool Washer
5WP965173 Whirlpool Dishwasher Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP694674 Whirlpool Cycling Thermostat
8Heater, Thermostat
9W11233063 Whirlpool Shield Assembly
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat, 205 F (96 C)
16279900 Whirlpool Box O/S1
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
20Seal, Blower
21WP488729 Whirlpool Refrigerator Door Screw
24Alert, Lint
25Hose, Differential
27Support, Heater Box
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48BULKHEAD
55RANGE ONLY 40W 120V APPL BULB
5698460 Whirlpool Nut
59Socket Assembly
60Lens, Drum Light
62279441 Whirlpool Front Bearing Ring
63Screw, 11-16 x 7/8
64W11684613 Whirlpool Bracket
65WP90296 Whirlpool Clip
66279408 Whirlpool Dryer Rear Drum Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69WP3403636 Whirlpool Drum Baffle
73SEAL
81SENSOR KIT
83WP342267 Whirlpool Clip
90WP348859 Whirlpool Electrode Assembly
91WP348860 Whirlpool Electrode
92WP298877 Whirlpool Washer
