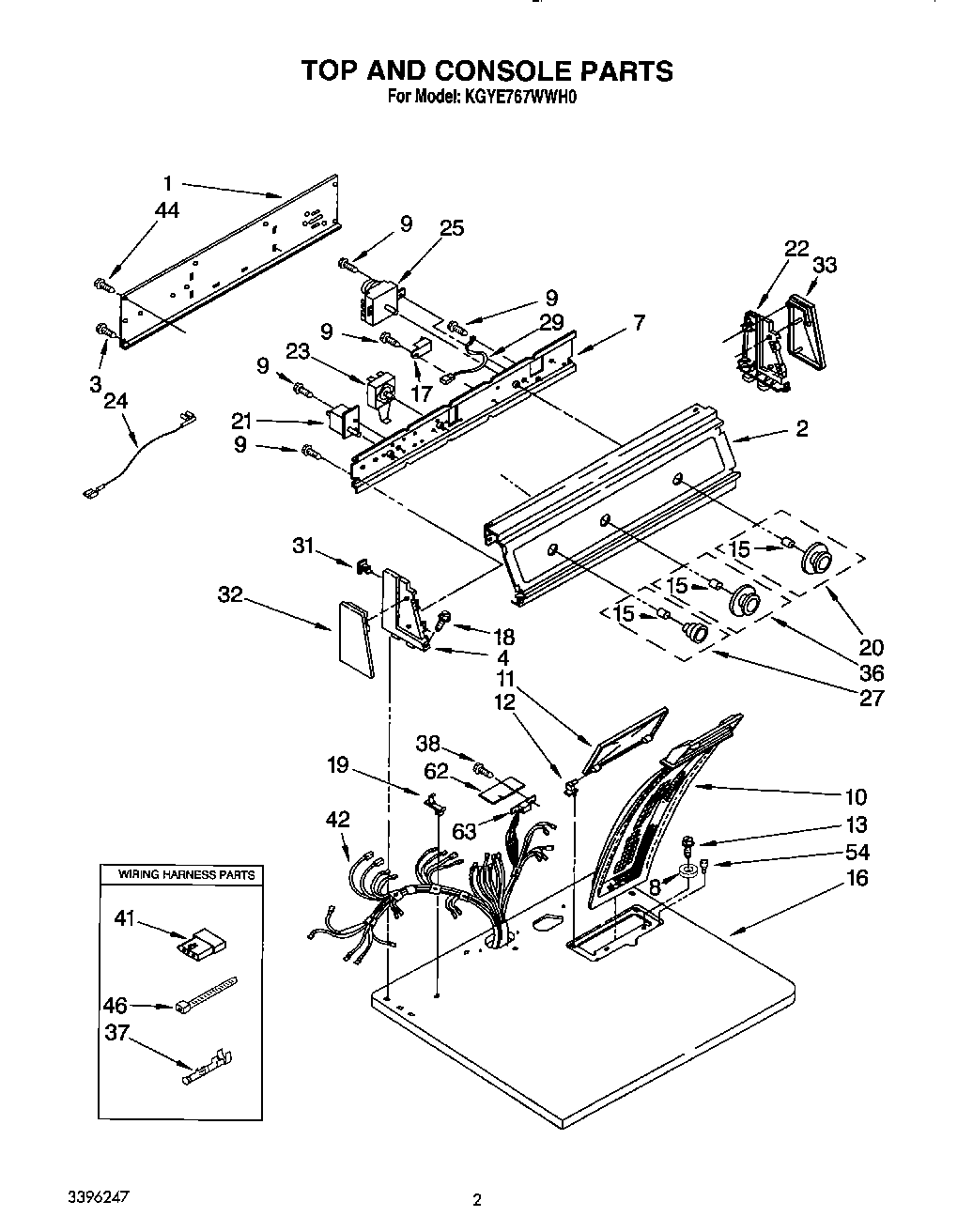

KGYE767WWH0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Operating Instructions
	Use & Care Guide
	Guide, Dryer
	Label, Wiring Diagram
	Instructions, Installation
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	List, Service Parts
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
7	Bracket, Control
8	Washer
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP688805 Whirlpool Spring Clip
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WPL 64211
19	Nut, Push-In (2)
20	Timer Knob Assembly
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	Switch, Temperature Control
24	Wire, Jumper (Blue)
24	Wire, Jumper (Violet)
25	Timer, 60 Hz.
27	Knob, Push-To-Start
29	Wire, Ground
31	WP689559 Whirlpool Nut
32	Trim, Endcap (L.H.)
33	Trim, Endcap (R.H.)
36	Knob, Control
37	WP94614 Whirlpool Terminal
38	WP90767 Whirlpool Screw
41	Receptacle, 3-Way Terminal (Use W/94614)
42	Harness, Gas
44	WP489069 Whirlpool Compactor Screw
46	WPW10339879 Whirlpool Wire Tie
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
