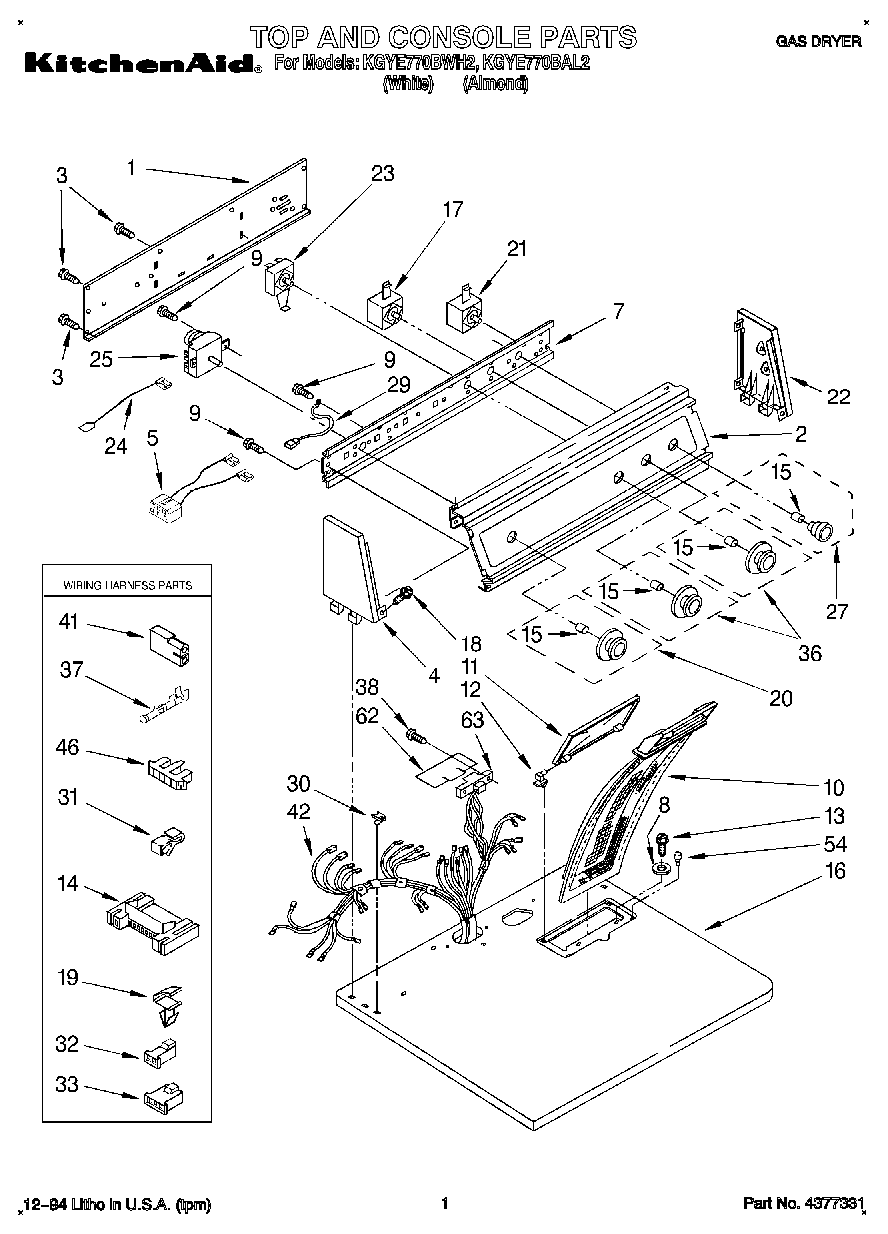

KGYE770BAL2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Label, Operating Instructions
	Guide, Dryer
	Label, Wiring Diagram
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Guide, Use & Care
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	Wire-Jumper Assembly
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3395683 Whirlpool Connector
15	WP688805 Whirlpool Spring Clip
16	Top (Almond)
16	Top (White)
17	WP3398093 Whirlpool Buzzer Adjuster
18	WPL 64211
19	WP3394427 Whirlpool Clip
20	Knob, Timer
21	WP3398094 Whirlpool Push To Start Switch
22	Cap, End (R.H.)
23	WP3399640 Whirlpool Switch
24	Wire, Jumper
25	Timer, 60Hz.
27	Knob, Push To Start
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
31	Clip, Retainer
32	Connector, 2-Position (Gas Valve)
33	Connector, 3-Position (Gas Valve)
36	Knob (Control)
37	WP94614 Whirlpool Terminal
38	WP90767 Whirlpool Screw
41	Receptacle, Latching (2-Way) (Uses Terminal 94614)
42	Harness, Gas
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
