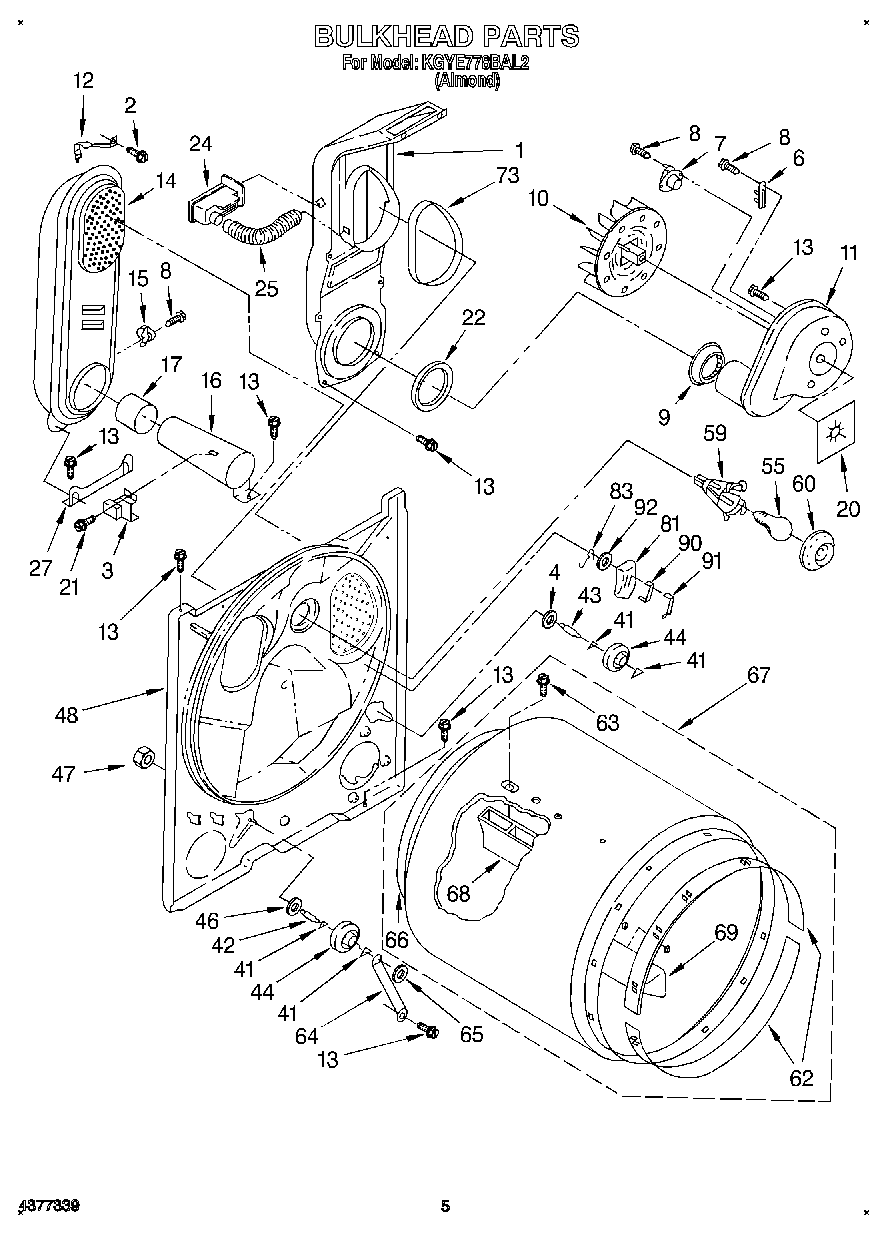

KGYE778BAL2 03 – BULKHEAD

Products

Position	Product
1	Lint Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP338906 Whirlpool Dryer Gas Sensor
4	WP3388703 Whirlpool Washer
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP3387134 Whirlpool Dryer Cycling Thermostat
8	WP90767 Whirlpool Screw
9	W11233063 Whirlpool Shield Assembly
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
15	Thermostat, 205 F (96 C)
16	279900 Whirlpool Box O/S1
20	Seal, Blower
21	WP3390631 Whirlpool Screw
22	W11415783 Whirlpool Seal
24	Alert, Lint
25	Hose, Differential
27	Support, Heater Box
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	WPW10314173 Whirlpool Dryer Drum Support Wheel
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
55	RANGE ONLY 40W 120V APPL BULB
59	Socket Assembly
60	Lens, Drum Light
62	279441 Whirlpool Front Bearing Ring
63	WPW10109200 Whirlpool Screw
64	W11684613 Whirlpool Bracket
65	WP90296 Whirlpool Clip
66	279408 Whirlpool Dryer Rear Drum Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	WP3403636 Whirlpool Drum Baffle
73	SEAL
81	SENSOR KIT
83	WP342267 Whirlpool Clip
90	WP348859 Whirlpool Electrode Assembly
91	WP348860 Whirlpool Electrode
92	WP298877 Whirlpool Washer
