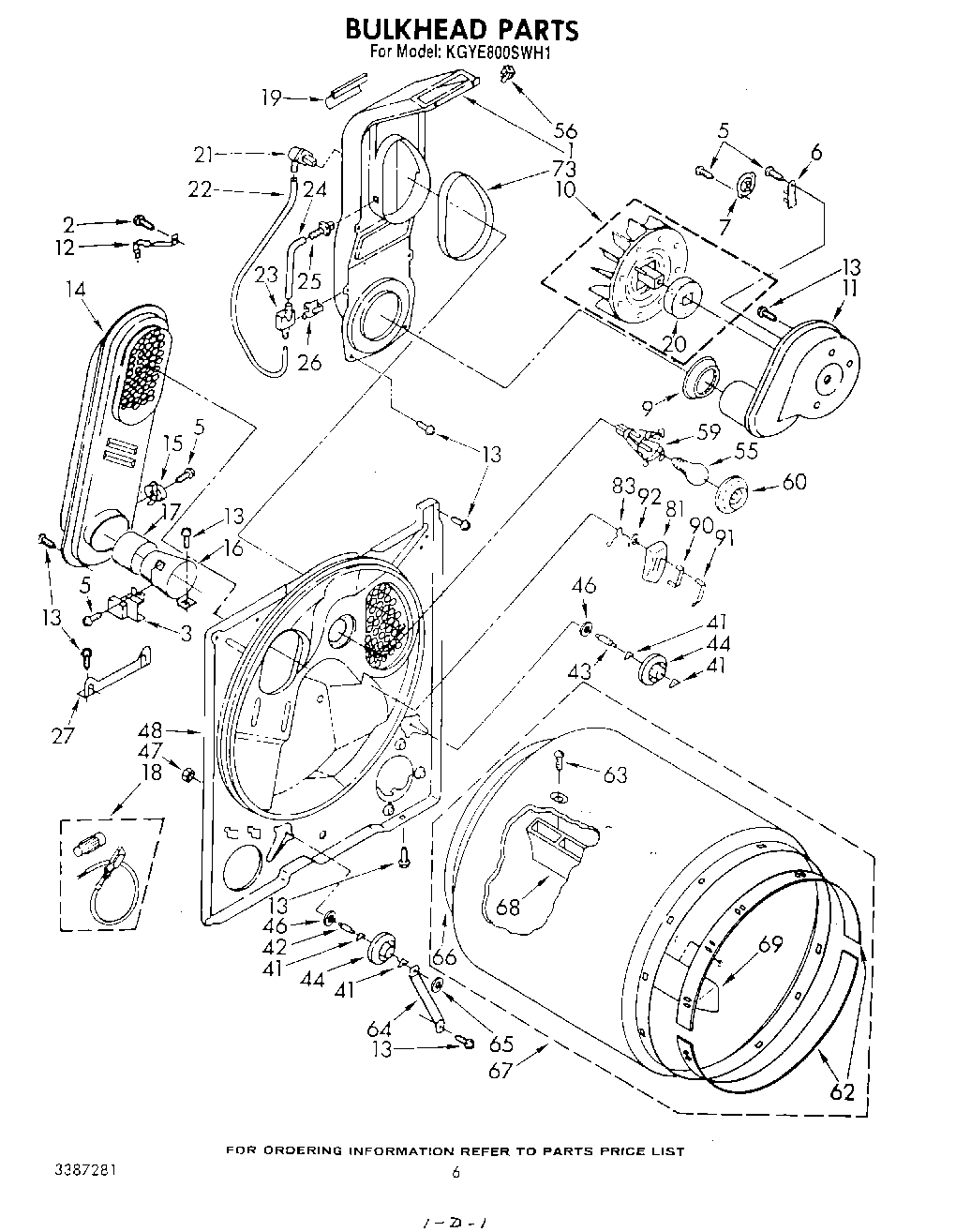

KGYE800SWH1 04 – BULKHEAD

Products

Position	Product
1	Lint Chute Assembly
3	WP338906 Whirlpool Dryer Gas Sensor
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP694674 Whirlpool Cycling Thermostat
9	W11233063 Whirlpool Shield Assembly
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
15	Thermostat, 205 F (96 C)
16	279900 Whirlpool Box O/S1
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	686770 Whirlpool Support Bracket
20	Seal, Blower
21	Tap, Downstream
22	Tubing Downstream
23	Sensor, Pressure
24	Tubing Upstream
25	Tap Upstream
26	Clip, Switch
27	Support, Heater Box
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	BULKHEAD
55	RANGE ONLY 40W 120V APPL BULB
56	98460 Whirlpool Nut
59	Socket Assembly
60	Lens, Drum Light
62	279441 Whirlpool Front Bearing Ring
63	Screw, 11-16 x 7/8
64	W11684613 Whirlpool Bracket
65	WP90296 Whirlpool Clip
66	279408 Whirlpool Dryer Rear Drum Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	WP3403636 Whirlpool Drum Baffle
73	SEAL
81	SENSOR KIT
83	WP342267 Whirlpool Clip
90	WP348859 Whirlpool Electrode Assembly
91	WP348860 Whirlpool Electrode
92	WP298877 Whirlpool Washer
