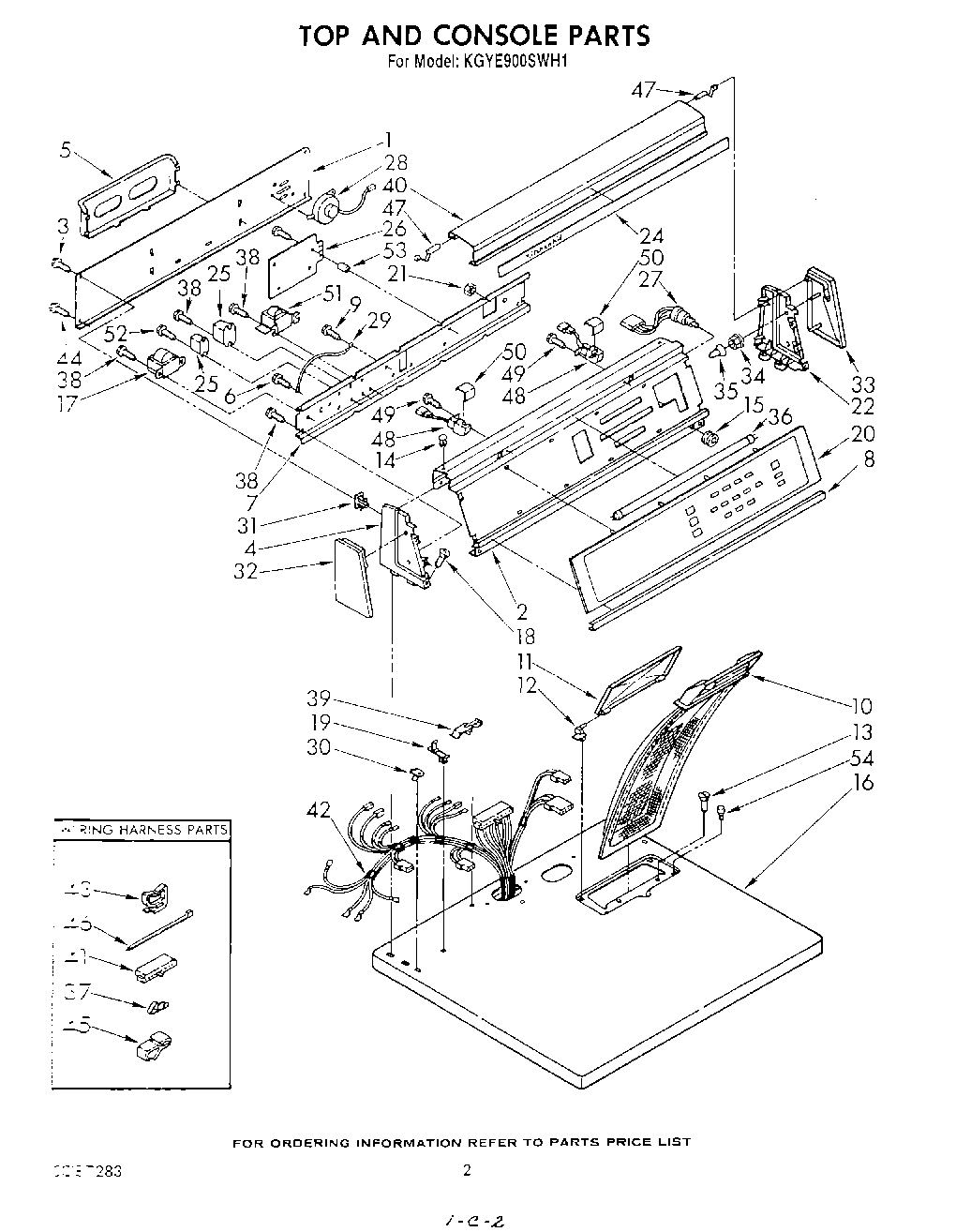

KGYE900SWH1 02 – TOP CONSOLE , LITERATURE AND OPTIONAL

KGYE900SWH1 02 – TOP CONSOLE , LITERATURE AND OPTIONAL

Written by

in

KGYE900SWH1 02 – TOP CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3387283
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Label, Operating Instructions
WPL LIT3387820
WPL LIT3387260
WPL LIT3387322
WPL LIT3387420
WPL LIT3387450
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
799344 Whirlpool Refrigerator Paint
Golden Harvest
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Leveler (Thinner)
WP72107 Whirlpool Touchup
350938 Whirlpool Spray Gun
1Panel, Rear Console
2Panel, Control
3WP693995 Whirlpool Screw
4End Cap (L.H.)
5Rack, Literature
6SCREW
7Bracket, Control
8Trim, Console
9WP3390631 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Plug, Latch (3)
15Nut, Knurled
16Top (White)
16Top (Almond)
16Top (Harvest Wheat)
16Top (Toast)
16Top (Platinum)
17Transformer
18WPL 64211
19Nut, Push-In (2)
20Module, Touch
21Nut, Self Thread
22Cap, End (R.H.)
24Insert, Lamp Cover
25Motor Relay
26Microcomputer Assembly
27Switch, Fluorescent
28Speaker & Housing
29Wire, Ground
30Stop, Push-In Top
31WP689559 Whirlpool Nut
32Trim, End Cap (L.H.)
33Trim, End Cap (R.H.)
34Nut, No.10 Thread
35Cap, Insulator
36Lamp, Fluorescent
37Terminal
38WP90767 Whirlpool Screw
39Clip, Wire (Tech Sheet/Top)
40Cover, Light (Includes No.24)
41Connector
42Harness, Electric
43Clip, Harness (Rear Bulkhead Area)
44WP489069 Whirlpool Compactor Screw
45Clip, Retainer
46WPW10339879 Whirlpool Wire Tie
47Hinge, Lamp Cover
48Socket, Lamp ((R.H.))
48Socket, Lamp ((L.H.))
49WP965173 Whirlpool Dishwasher Screw
50Cover, Socket
51Ballast
52Screw Mou
53WPL 313087
54Bumper, Lint Lid
