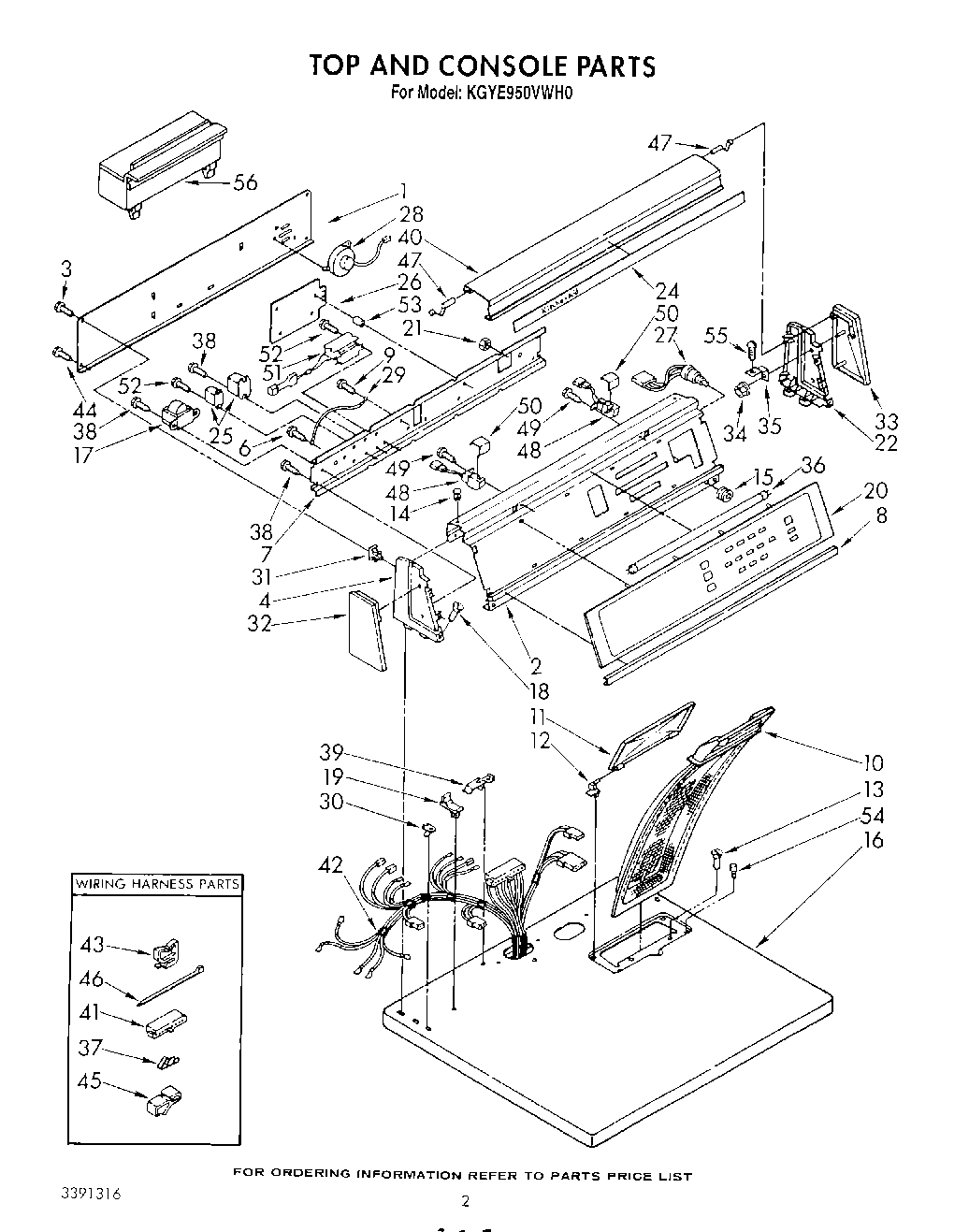

KGYE950VTO0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

Position	Product
	Label, Operating Instructions
	72113 Whirlpool Touch-Up Paint
	WPL LIT3387820
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL LIT3387336
	WPL 72112
	WPL LIT3391316
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3387450
	WPL LIT3387420
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Golden Harvest
	350930 Whirlpool White Spray Paint
	WPL LIT3389703
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	End Cap (L.H.)
6	SCREW
7	Bracket, Control
8	Trim, Console
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Plug, Latch (3)
15	Nut, Knurled
16	Top (White)
16	Top (Almond)
16	Top (Platinum)
16	Top (Toast)
16	Top (Harvest Wheat)
17	Transformer
18	WPL 64211
19	Nut, Push-In (2)
20	Module, Touch
21	Nut, Lock
22	Cap, End (R.H.)
24	Insert, Lamp Cover
25	Motor Relay
26	Microcomputer Assembly
27	Switch, Fluorescent
28	Speaker & Housing
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, End Cap (L.H.)
33	Trim, End Cap (R.H.)
34	Nut, No.10 Thread
35	Bracket, End Cap (2)
36	Lamp, Fluorescent
37	Terminal
38	WP90767 Whirlpool Screw
39	Clip, Wire (Tech Sheet/Top)
40	Cover, Light (Includes No.24)
41	Connector
42	Harness, Electric
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
47	Hinge, Lamp Cover
48	Socket, Lamp ((L.H.))
48	Socket, Lamp ((R.H.))
49	WP965173 Whirlpool Dishwasher Screw
50	Cover, Socket
51	Ballast
52	Screw Mou
53	WPL 313087
54	Bumper, Lint Lid
55	WPL 310629
56	WPL 3388894
