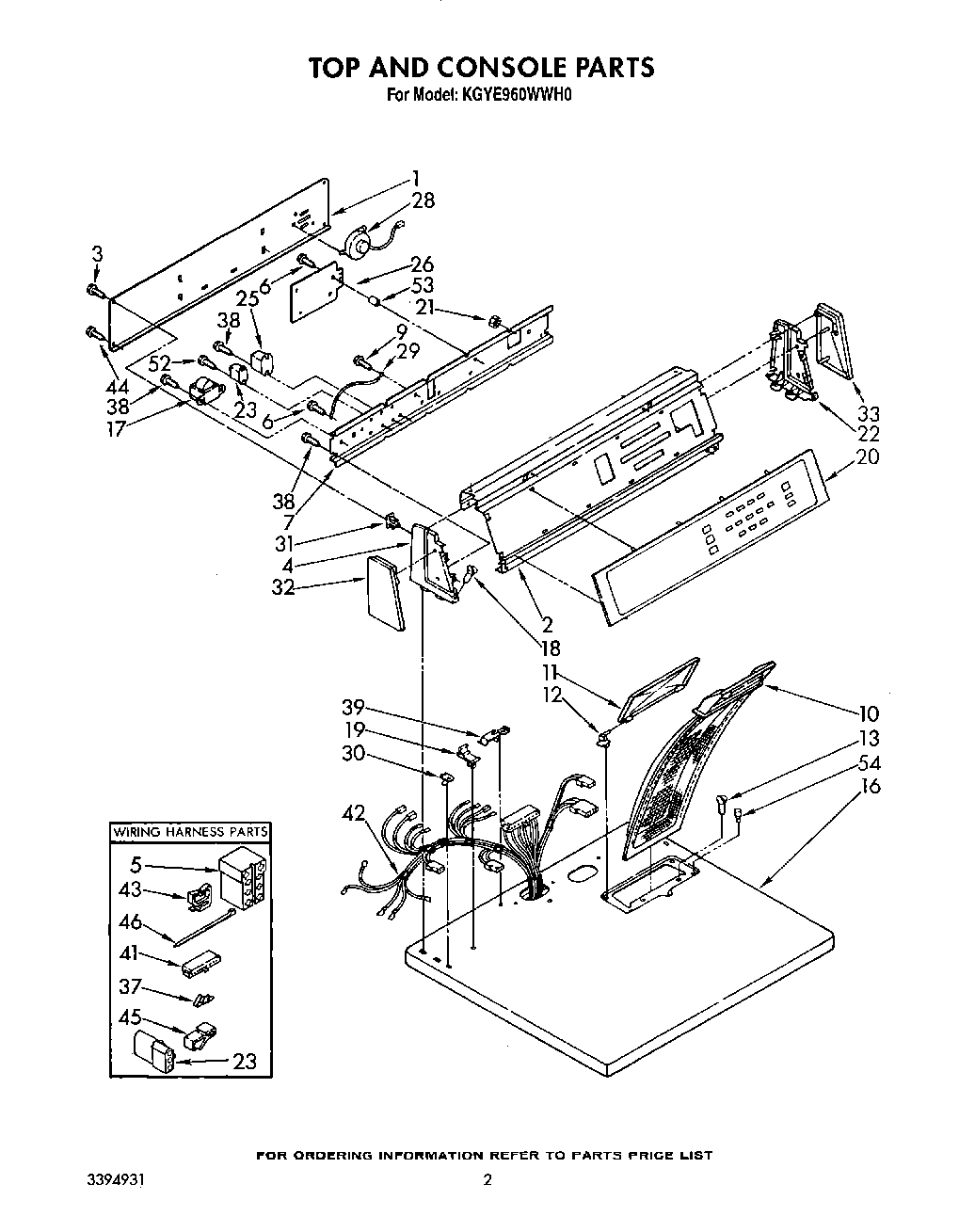

KGYE960WWH0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3392981
	WPL 72112
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT3387423
	Platinum (Uncut)
	72113 Whirlpool Touch-Up Paint
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Golden Harvest
	Toast
	WPL LIT3393139
	Guide, Dryer
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	Label, Operating Instructions
	WPL LIT3394931
	WPL LIT3394905
	Golden Harvest (Uncut)
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	Receptacle, (Natural)
6	SCREW
7	Bracket, Control
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Almond)
16	Top (White)
17	Transformer
18	WPL 64211
19	Nut, Push-In (2)
20	Module, Touch
21	Nut, Lock
22	Cap, End (R.H.)
23	Receptacle, 3-Way Terminal (Use W/94614)
25	Motor Relay
26	Microcomputer Assembly
28	Speaker & Housing
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, End Cap (L.H.)
33	Trim, End Cap (R.H.)
37	Terminal
38	WP90767 Whirlpool Screw
39	Clip, Wire (Tech Sheet/Top)
41	Connector
42	Harness, Wiring
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
52	Screw Mou
53	WPL 313087
54	Bumper, Lint Lid
