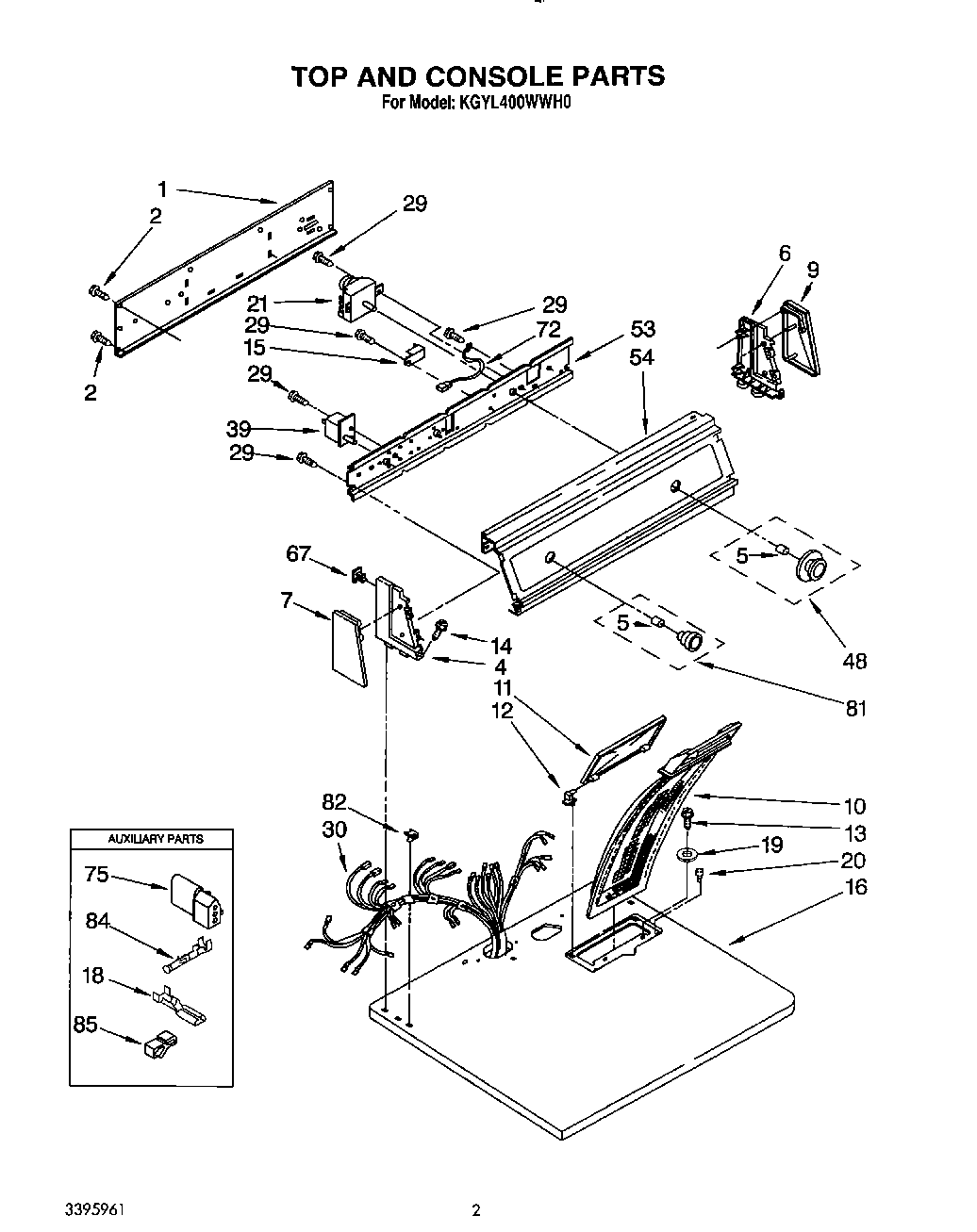

KGYL400WWH0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	List, Service Parts
	Guide, Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Instructions, Installation
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	Cap, End (R.H.)
7	Trim, Endcap (L.H.)
9	Trim, Endcap (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
15	WP694419 Whirlpool Buzzer Adjuster
16	Top (White)
16	Top (Almond)
18	WP94614 Whirlpool Terminal
19	Washer
20	Bumper, Lint Lid
21	WP3394762 Whirlpool Timer
29	WP3390631 Whirlpool Screw
30	Harness, Wiring
39	Relay, Push-To-Start
48	Knob, Timer
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Knob, Push To Start
82	Nut, Push-In (2)
84	WP596797 Whirlpool Terminal
85	Clip, Retainer
