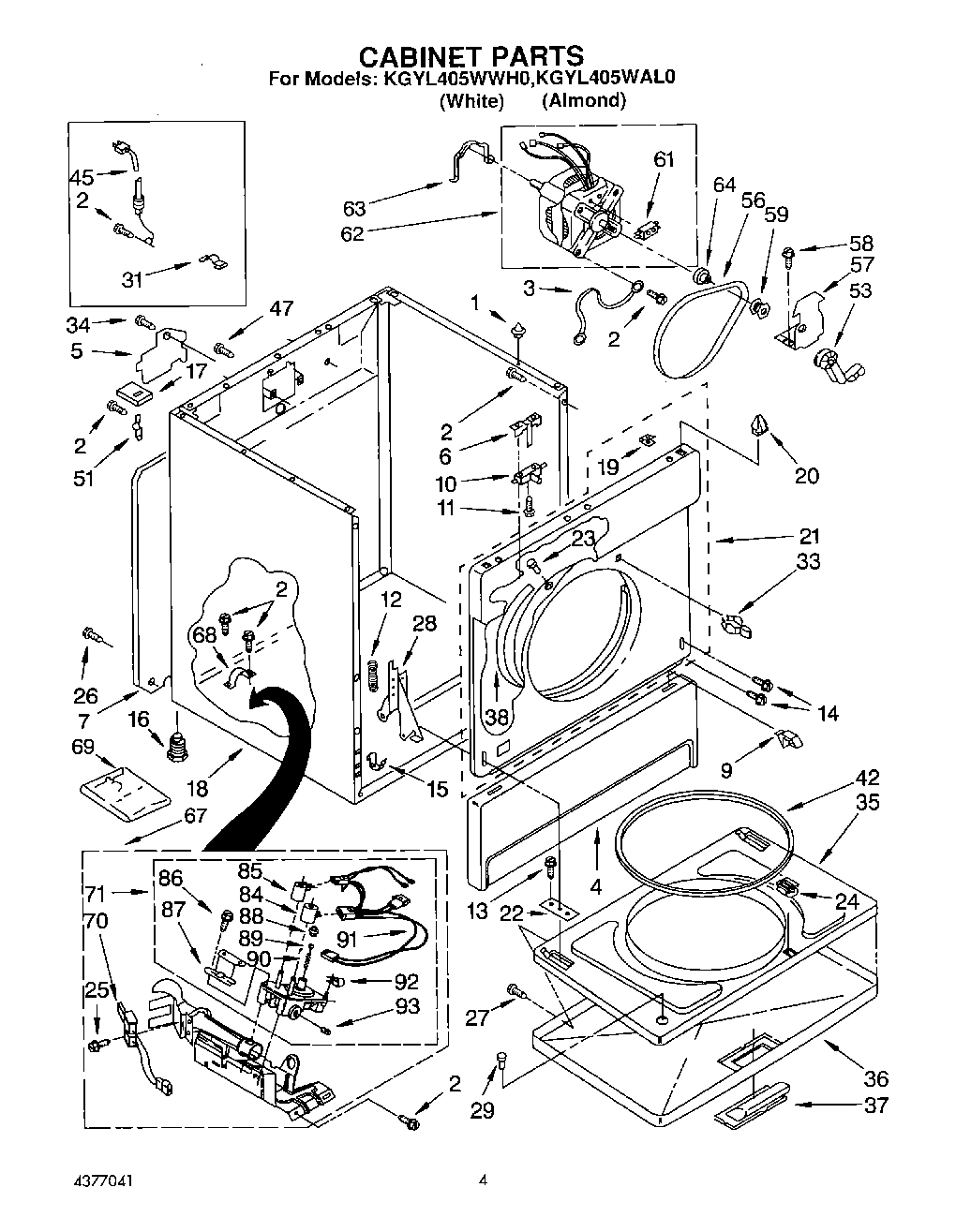

KGYL405WWH0 02 – SECTION

Products

PositionProduct
1Locator, Top
2SCREW
3Wire, Ground (Motor)
4Panel, Toe (White)
4Panel, Toe (Almond)
5W11736322 Whirlpool Cover Assembly
6WP691581 Whirlpool Actuator
7Panel, Rear
9WP3388229 Whirlpool Dryer Spring Clip
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
12Spring, Door (2)
13WP308685 Whirlpool Microwave Screw
14Screw, 10-32 x 1/2
15WP297092 Whirlpool Clip
1649621 Whirlpool Leveling Feet
1718849 Whirlpool Pad
18Cabinet (White)
18Cabinet (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (Almond)
21Front Panel Assembly (White)
22W11252547 Whirlpool Clip Assembly
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WPW10366705 Whirlpool Screw
26WP489069 Whirlpool Compactor Screw
27WP694091 Whirlpool Screw
28Hinge, R.H.
28Hinge, L.H.
29238614 Whirlpool Bumper Hinge
318528351 Whirlpool Clip
34WP693995 Whirlpool Screw
35Door, Rear
36Door, Front (Almond)
36Door, Front (White)
37handle, door (almond)
37WP348721 Whirlpool Handle
38279264 Whirlpool Bearing and Seal Kit
42WP3390733 Whirlpool Door Seal Assembly
45W11222083 Whirlpool Power Cord
47W10850756 Whirlpool Screw
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3393657 Whirlpool Belt Retainer
67Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
69Kit, Conversion Type 1 To Type 3 (MFD)
70279311 Whirlpool Dryer Flat Igniter with Bracket
71279923 Whirlpool Gas Valve
84279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
86694421 Whirlpool Screw Assembly
87694538 Whirlpool Bracket
88WP694424 Whirlpool Limiter
89WP694423 Whirlpool Regulator
90WP694422 Whirlpool Spring
91WP3401850 Whirlpool Wire Harness
92WPL 694510
93W10295523 Whirlpool Plug
