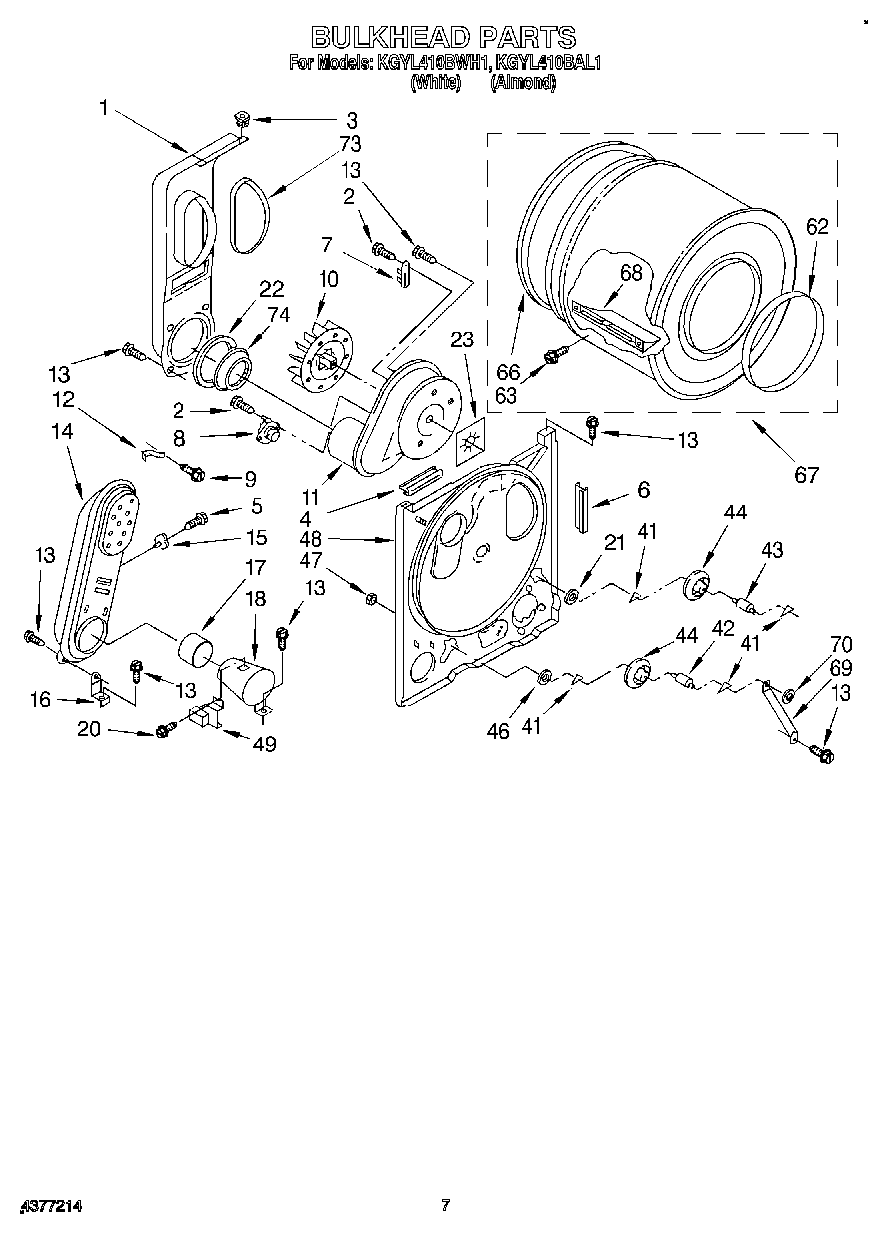

KGYL410BAL1 04 – BULKHEAD

Products

Position	Product
1	279505 Whirlpool Chute
2	WP965173 Whirlpool Dishwasher Screw
3	98460 Whirlpool Nut
5	WP90767 Whirlpool Screw
6	686889 Whirlpool Pad
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	WP489463 Whirlpool Refrigerator Screw
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
15	W11568973 Whirlpool Thermostat Fix
16	Support, Heater Box (2)
17	279900 Whirlpool Box O/S1
20	WP3390631 Whirlpool Screw
21	WP3388703 Whirlpool Washer
22	W11415783 Whirlpool Seal
23	Seal, Blower
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	WPW10314173 Whirlpool Dryer Drum Support Wheel
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394509 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	697760 Whirlpool Drum Assembly Primary OS2
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
74	W11233063 Whirlpool Shield Assembly
